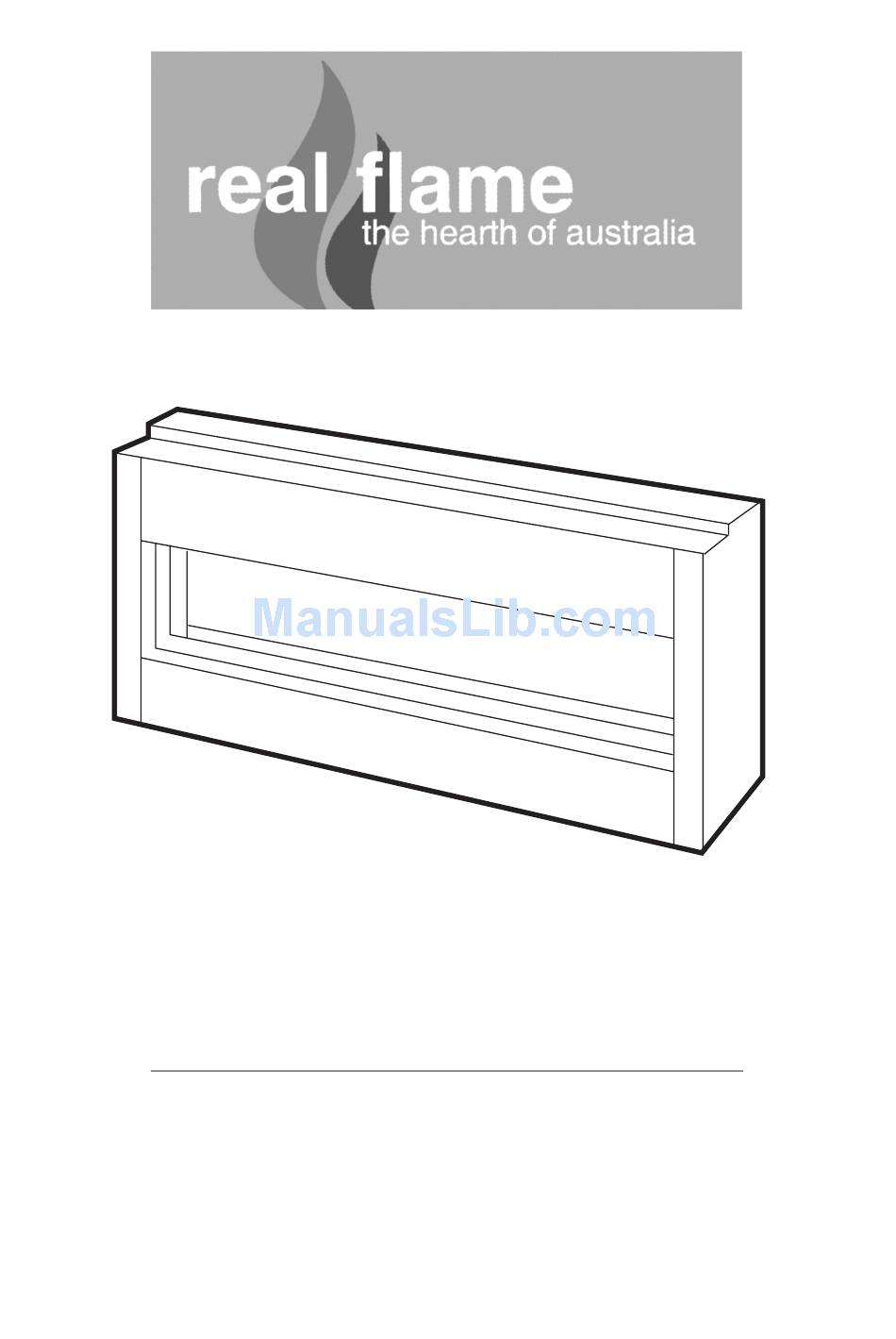

LANDSCAPE
®
BALANCED
FLUE SPACE HEATER
INSTALLATION & OPERATING MANUAL
The Landscape 1000 & 1600 are approved to be installed as a zero
clearance firebox and are designed to operate on Natural Gas and
Propane (LPG) gases ONLY. Approval Number GMK 10056.
VERSION 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANDSCAPE 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Real Flame LANDSCAPE 1000

  • Page 1 BALANCED FLUE SPACE HEATER INSTALLATION & OPERATING MANUAL The Landscape 1000 & 1600 are approved to be installed as a zero clearance firebox and are designed to operate on Natural Gas and Propane (LPG) gases ONLY. Approval Number GMK 10056.
  • Page 2 WARNING The “Landscape 1000 & 1600” have a primary safety glass fitted in front of the glass door. This safety glass is fitted to these appliances to reduce the risk of injury from burns and at no time should this glass be permanently removed.
  • Page 3: Table Of Contents

    CONTENTS Contents ........................3 Data Plate .........................4 Zero Clearance introduction ..................5 Dimensions Landscape 1000 ..................6 Dimensions Landscape 1600 ..................7 Terminations ......................8 Timber frame installation..................9 Vertical & horizontal venting installation ..............12 Tests to be carried out by installer .................13 Pebble set up ......................13 Servicing and maintenance ...................14...
  • Page 4: Data Plate

    DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption) MODEL LANDSCAPE 1000 GAS TYPE NATURAL GAS @ 0.8 kPa INJECTOR SIZE GAS CONSUMPTION TEST PRESSURE POINT (HIGH) 3 X 2.3mm 41Mj/h LPG @ 2.6 kPa...
  • Page 5: Zero Clearance Introduction

    LANDSCAPE MODEL INTRODUCTION The Real Flame “Landscape” is a ribbon burner space heater for use with Natural Gas Aus & NZ and Propane. The Real Flame warranty will be voided by, and Real Flame disclaims any responsibility for the following actions: •...
  • Page 6: Dimensions Landscape 1000

    DIMENSIONS Landscape 1000 1000 1160 50mm Stand Offs 100mm Stand Offs 25mm Stand Offs Fixing channel for plaster Lifting Handles Trim 70mm 90mm Power Landscape 1000 Trim 1100...
  • Page 7: Dimensions Landscape 1600

    DIMENSIONS Landscape 1600 1600 1760 Trim Power 60mm 115mm Landscape 1600 Trim 1700...
  • Page 8: Terminations

    LANDSCAPE MODEL (continued) Cowl types • The Landscape is a balanced flue space heater. • It can be installed with the flue terminating with a horizontal or vertical cowl to suit the application. Vertical top Horizontal rear termination termination Vertical top RF/HZ termination Flue...
  • Page 9: Timber Frame Installation

    LANDSCAPE MODEL (continued) Timber Frame Installation Procedure Step 1 Construct the base for the unit. Ensure base is adequate for the weight of the fire. Step 2 Call for delivery of the unit, position on the base and fit off gather, flues and termination. Connect gas and power.
  • Page 10 LANDSCAPE MODEL (continued) Timber Frame Installation Procedure Step 3 Construct the frame around the fire as per drawing, taking note of required clearances. (See page 11) PLASTER Step 4 Sheet plaster and finish remembering to run plaster beyond stud and behind trim. TRIM Step 5 Commission fire as per...
  • Page 11 LANDSCAPE MODEL (continued) Landscape 1000 & 1600 Timber Frame Installation Dimensions (Recommended only) FLUE GATHER VIEWING AREA* TRIM Plaster to run beyond stud and behind trim *Viewing area for 1000 is 1000mm x 370mm Viewing area for 1600 is 1600mm x 370mm Frameout Dimensions (in mm) NOTE: Ensure frame is suitable for fire weight.
  • Page 12: Vertical & Horizontal Venting Installation

    LANDSCAPE ZERO CLEARANCE MODEL (continued) INSTALLATION OF VERTICAL & HORIZONTAL FLUING Vertical terminations must be installed with the following clearances: • Minimum of 500 mm from the nearest part of the roof (Measurement is taken from the bottom of the termination). •...
  • Page 13: Tests To Be Carried Out By Installer

    • Instruct the customer on the use of the remote control. Refer to remote control operating guide on pages 19, 20 and 21. Set up for pebbles in Landscape 1000 and 1600 (Optional) • PEBBLES ARE TO BE SET UP AS PER THE BELOW DRAWINGS.
  • Page 14: Servicing And Maintenance

    SERVICING AND MAINTENANCE To follow when servicing, removing fan or changing valve or control modules. IMPORTANT: POWER MUST BE ISOLATED PRIOR TO CARRYING OUT THE SERVICE/MAINTENANCE. SERVICE/MAINTENANCE ONLY TO BE CARRIED OUT BY AN AUTHORISED PERSON. DO NOT MODIFY THIS APPLIANCE 1.
  • Page 15: For Your Safety Read Before Lighting

    SERVICING AND MAINTENANCE (continued) 8. Remove burner 9. Remove bottom of burner tray, fan is then exposed and may be serviced or removed To service or change gas valve or control modules, the After carrying out service or process is the same as steps replacing parts, reverse the 1 to 3.
  • Page 16: Parts List

    PARTS LIST SIT 845 SIGMA GAS CONTROL VALVE SIT 579 ELECTRONIC FLAME CONTROL DEVICE MILLENIUM THERMOSTAT REMOTE CONTROL SYSTEM SIT PILOT ASSEMBLY 1. Pilot 2. Pilot Tube 3. Burner Tube...
  • Page 17: Gas Control Assembly

    GAS CONTROL ASSEMBLY Inlet Test Adjustment Outet Test Pressure Point for High Pressure Point Gas Inlet Gas Outlet Adjustment for Low...
  • Page 18: Flue Termination (Cowls) Regulations

    LANDSCAPE FLUE TERMINATION (COWLS) REGULATIONS Balanced Flue...
  • Page 19: Remote Control Operating Guide

    This should be read before servicing commences. The Landscape 1000 & 1600 are controlled completely by the use of the remote control; this remote can be used either as a manual operation or an auto operation.
  • Page 20 REMOTE CONTROL OPERATING GUIDE (continued) Teaching RF code • Ensure the power to the heater is turned off. • Press in sequence <P>, <T>, <T>, <UP> • The LCD diplay will show “CL ” (Code Learn) for 2 seconds then return to the normal OFF state display.
  • Page 21 REMOTE CONTROL OPERATING GUIDE (continued) In Auto mode, the RF thermostat will control the flame and the fan according to the programmed times and temperature. The flame can be programmed to turn on or off, or change the required temperature. The switch off and on sequence operate as per manual operation, detailed above.
  • Page 22: Electrical Diagram

    ELECTRICAL DIAGRAM - Landscape 1000...
  • Page 23 ELECTRICAL DIAGRAM - Landscape 1600...
  • Page 24: Troubleshooting

    IF YOUR LANDSCAPE FIREPLACE STILL DOES NOT OPERATE CORRECTLY CONSULT YOUR DEALER. ALL SERVICE AND REPAIRS SHOULD BE PERFORMED BY AN AUTHORISED AGENCY. ALL SPARE PARTS AND OPTIONAL TRIM FINISHES ARE AVAILABLE FROM REAL FLAME PTY LTD.
  • Page 28: Real Flame Contact Information

    REAL FLAME PTY LTD ABN 76 006 311 155 Head Office/Factory/Showroom 1340 Ferntree Gully Rd. Scoresby Vic 3179 Ph: (03) 8706 2000 Fax: (03) 8706 2001 E-mail: info@realflame.com.au Richmond - VIC Showroom 300 Swan St. Richmond Vic 3121 Ph: (03) 9428 4443 Fax: (03) 9428 4445 Dandenong - VIC Showroom 9 Lonsdale St.
