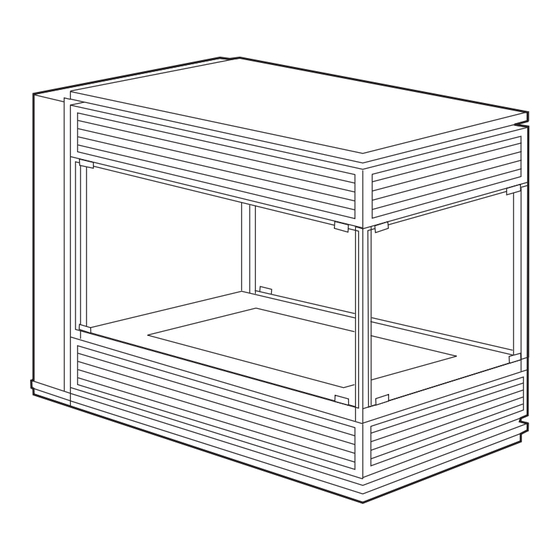

Real Flame Captiva Island Series Installation & Operating Manual

Balanced flue space heater

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

C PTIV ISL ND

B L NCED

FLUE SP CE HE TER

INST LL TION & OPER TING M NU L

The Captiva Island gas fire is approved to be installed as a zero clearance firebox

and are designed to operate on Natural Gas and Propane (LPG) gases ONLY.

Approval Number GMK10060.

VERSION 14

Need help?

Do you have a question about the Captiva Island Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Real Flame Captiva Island Series

Page 1 C PTIV ISL ND ® B L NCED FLUE SP CE HE TER INST LL TION & OPER TING M NU L The Captiva Island gas fire is approved to be installed as a zero clearance firebox and are designed to operate on Natural Gas and Propane (LPG) gases ONLY. Approval Number GMK10060.
Page 2 (www.realflame.com.au) or completing and mailing the attached registration card within 30 days of purchase of your Real Flame Gas Burner (or, if the Real Flame Gas Burner is fitted to a new home, within 30 days of the date of settlement of purchase of such new home).
Page 3 W RNING The “Captiva Island” has a primary safety glass fitted in front of the inner glass panels. This safety glass is fitted to the appliance to reduce the risk of injury from burns and at no time should this glass be permanently removed.
Page 4 Dimensions 2 sided ....................7 Dimensions 3 sided ....................8 Timber frame installation..................9 Fluing options......................11 Ceramic set up and installation procedures............12 Servicing and maintenance ..................14 Parts list .......................18 Flue termination (cowls) regulations ..............19 Remote control operating guide................20 Electrical diagram ....................23 Real Flame contact information ................24...
Page 5 (Affixed to the base of the unit for reference to gas pressure & consumption) D T PL TE MODEL CAPTIVA ISLAND SERIAL NO. DATE OF MANUFACTURE GAS TYPE APPROVAL: GMK10060 Injector Size Gas Consumption NATURAL GAS @ 0.95 kPa Test Pressure Point (High) 2 x 2.55 mm 43 Mj/hr Injector Size...
Page 6 C PTIV ISL ND ZERO CLE R NCE MODEL INTRODUCTION The Real Flame “Captiva Island” is a log/coal or pebble effect space heater for use with Natural Gas and Propane. The Real Flame warranty will be voided by, and Real Flame disclaims any responsibility for the following actions: •...
Page 7 DIMENSIONS 1100 Captiva Island 2 sided Captiva Island 2 sided trim...
Page 8 DIMENSIONS 1100 Captiva Island 3 sided Captiva Island 3 sided trim SIDE x 2...
Page 9 (continued) C PTIV ISL ND ZERO CLE R NCE MODEL Captiva Island Zero Clearance Timber Frame Installation Dimensions (in mm) Model 2 sided 1100 3 sided 1100 2 sided 3 sided Gas Inlet Power Cord (On base) (On base) The fan, control module and remote control module are all located behind...
Page 10 C PTIV ISL ND FR ME DET IL Timber Frame Installation IMPORT NT Install unit and NOTE: Plaster to fluing before run beyond stud plasterboard. and behind trim FIRE FIRE 2 sided 3 sided Model 2 sided 1000 1225 3 sided 1000 1150 * Note: The “C”...
Page 11 (continued) ISL ND ZERO CLE R NCE MODEL INST LL TION OF VERTIC L VENTING Vertical terminations must be installed with the following clearances: • Minimum of 500 mm from the nearest part of the roof (Measurement is taken from the bottom of the termination).
Page 12 (continued) C PTIV ISL ND ZERO CLE R NCE MODEL Captiva Island Fire Installation Procedure TICK BOXES Locate fire into frameout as per page 10 Connect to gas supply and check for leaks Connect to power supply Install flue as per directions on page 11 Plaster to unit with trims removed and then install trims Test unit for safe operation and show customer correct operating procedure Figure (1) Remove logs and coals from box...
Page 13 (continued) C PTIV ISL ND ZERO CLE R NCE MODEL (continued) Captiva Island Fire Installation Procedure PEBBLE OPTION To install pebbles follow the instructions below taking care not to place the pebbles over the burner rail. Figure (1) Place the 12 large pebbles into the Figure (2) Add the 16 medium pebbles as burner as shown.
Page 14 SERVICING ND M INTEN NCE IT IS RECOMMENDED THAT YOUR HEATER BE SERVICED AT LEAST EVERY TWO YEARS BY A QUALIFIED TRADESMAN. To follow when servicing, removing fan or changing valve or control modules. IMPORTANT: POWER MUST BE ISOLATED PRIOR TO CARRYING OUT THE SERVICE/MAINTENANCE.
Page 15 (continued) SERVICING ND M INTEN NCE Figure (6) Now remove the stainless steel Figure (7) Loosen the top and bottom screws corner section by removing two screws from on the inner glass frames. Do end glass if 3 top and two from bottom. sided model.
Page 16 (continued) SERVICING ND M INTEN NCE Figure (12) To remove the gas valve Figure (13) Remove all wires and undo disconnect the main gas pipe from the left screws from both fixing brackets. Remove side and the burner pipe from the right. valve.
Page 17 If your Captiva Island fireplace still does not operate correctly, consult your dealer. All service and repairs should be performed by an authorised person or company. All spare parts and optional trim finishes are available from Real Flame Pty Ltd.
Page 18 P RTS LIST Gas Control Valve Module Box Remote Control Remote Control Module Sensor G S CONTROL SSEMBLY Inlet Test Adjustment Outet Test Pressure Point for High Pressure Point Gas Inlet Gas Outlet Adjustment for Low...
Page 19 C PTIV ISL ND FLUE TERMIN TION (COWLS) REGUL TIONS Balanced Flue...
Page 20 • The remote control and the controller are non-serviceable parts and if faulty should be returned to Real Flame Pty Ltd for replacement. Locating the remote The remote houses the thermostat that controls the heat output of the fire. When storing the...
Page 21 (continued) REMOTE CONTROL OPER TING GUIDE Manual mode Manual mode does not require that the time and day of the week are set. Press the or t button to increase or decrease the temperature desired. utomatic mode The automatic mode allows the temperature to be regulated according to a programmed level and time.
Page 22 (continued) REMOTE CONTROL OPER TING GUIDE Programming • Setting the period starting time The hour and AM/PM settings will now flash. To set the P1 starting time, press and release or t button to increase or decrease the hour setting. Press and hold the or t button for 2 seconds or longer to increase or decrease the hour setting by 1 hour every 0.5 seconds.
Page 23 ELECTRIC L DI GR M BLUE ORANGE BROWN...
Page 24 GLEN DIMPLEX AUSTRALIA PTY LTD ABN 69 118 275 460 Head Office/Factory/Showroom 1340 Ferntree Gully Rd. Scoresby Vic 3179 Ph: (03) 8706 2000 Fax: (03) 8706 2001 E-mail: info@realflame.com.au Richmond - VIC Showroom 300 Swan St. Richmond Vic 3121 Ph: (03) 9428 4443 Fax: (03) 9428 4445 Dandenong - VIC Showroom 3/328 South Gippsland Highway, Dandenong South Vic 3164...
