Real Flame ELEMENT 1200 Installation & Operating Manual
  1. Manuals
  2. Brands
  3. Real Flame Manuals
  4. Heater
  5. ELEMENT 1200
  6. Installation & operating manual

Real Flame ELEMENT 1200 Installation & Operating Manual

Element flame effect space heater xlc flue configurations polypropylene flue
Hide thumbs Also See for ELEMENT 1200:
Table of Contents

Advertisement

Quick Links

See also: Installation & Operating Manual

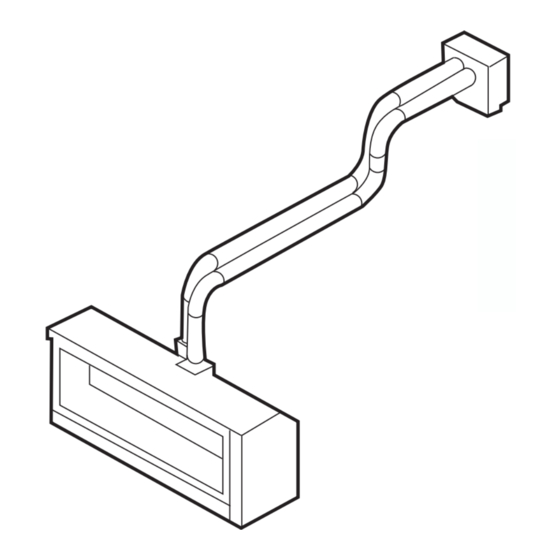

ELEMENT FL ME EFFECT SP CE HE TER
XLC FLUE CONFIGUR TIONS
POLYPROPYLENE FLUE
INST LL TION & OPER TING M NU L
The Real Flame Element space heater is suitable to be installed into a
masonry fireplace or in a frame out installation. Designed to operate on
Natural gas, LPG and ULPG gas.
Approval no.GMK 10441
VERSION 4
