Real Flame Inspire 700 Installation & Operating Manual

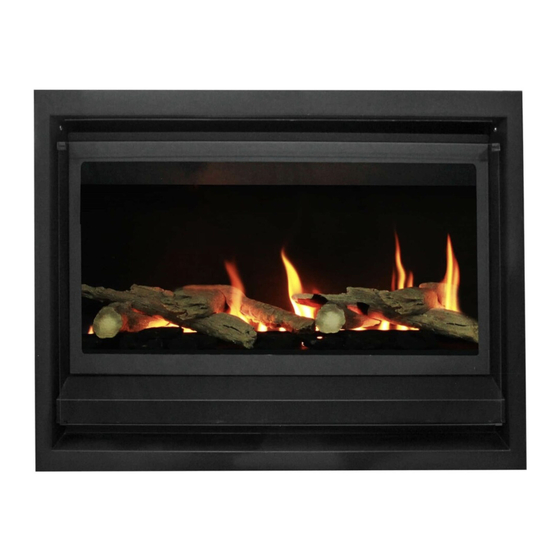

Flame effect space heater
Hide thumbs Also See for Inspire 700:
Table of Contents

Advertisement

Quick Links

Download this manual
INSPIRE FL ME EFFECT SP CE HE TER
MODELS 700/900/1100
INST LL TION & OPER TING M NU L
The Inspire space heater is suitable to be installed into a frame out installation.
Designed to operate on Natural gas and LPG gas. Approval no.GMK 10528
VERSION 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspire 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Real Flame Inspire 700

Summary of Contents for Real Flame Inspire 700

  • Page 1 INSPIRE FL ME EFFECT SP CE HE TER MODELS 700/900/1100 INST LL TION & OPER TING M NU L The Inspire space heater is suitable to be installed into a frame out installation. Designed to operate on Natural gas and LPG gas. Approval no.GMK 10528 VERSION 8...
  • Page 2 Date Of Purchase / settlement of property if new home _________________ Model / Serial Number_______________________ This warranty does not cover the cost of claiming under the warranty or transporting the Real Flame Gas Burner to and from the supplier. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 3 W RNING The Inspire space heater has a primary safety glass fitted in front of the glass door. This safety glass is fitted to this appliance to reduce the risk of injury from burns and at no time should this glass be permanently removed.

  • Page 4: Table Of Contents

    Setup with external wall mounted fan terminal ..........11 Timber Frame Installation ..................15 Media Installation....................16 Commissioning Procedure..................29 Operation - User Instructions................29 Troubleshooting ....................35 Remote Control.....................36 Wiring Diagram .....................37 Aeration Adjustments and Burner Sizes ...............38 Conversion Details....................39 Parts List.......................42 Real Flame Contact Information ................44...

  • Page 5: Data Plate

    (Affixed to the base of the unit for reference to gas pressure & consumption) D T PL TE Inspire 700 INJECTOR SIZE N.G.C. (Mj/hr) GAS TYPE Natural Gas 1 X 2.30mm 0.88kPa High / 0.40kPa Low 22.0 High/16.0 Low 1 X 1.35mm 2.48kPa High / 1.58kPa Low...
  • Page 6 (continued) DIMENSIONS Inspire 900 Inspire 1100...
  • Page 7 (continued) DIMENSIONS Power Flue...

  • Page 8: Installation Instructions

    LOC TION Select a location where the fire can be supervised during operation. An electrical isolation switch must be fitted at the appliance or on an adjacent wall to allow for emergency shutdown and maintenance. Installation must meet Australian gas codes AS/NZS 5601. INST LL TION CLE R NCES –...

  • Page 9: Flue Termination

    (continued) INST LL TION INSTRUCTIONS FLUE TERMIN TION LOC TION • Flue terminations shall not be recessed in walls or sidings. • EXTREMELY IMPORT NT: In heavy snow areas take extra care to prevent blocking flue termination with snow removal equipment. •...
  • Page 10 INSPIRE FLUE TERMIN L LOC TION...

  • Page 11: Installation Instructions Setup With External Wall Mounted Fan Terminal

    (continued) INST LL TION INSTRUCTIONS SETUP WITH EXTERN L W LL MOUNTED F N TERMIN L Wall mounted fan terminal 1/ Wall mounted fan module – terminal must be installed with clearances as specified by AS/NZS 5601.1 Clause 6.9.3 2/ Run exhaust flue and air intake flue as required –...
  • Page 12 (continued) INST LL TION INSTRUCTIONS Recommended Silicon – Non-acetic, neutral cure 150degc or higher temperature rated. Bostik RTV 926 or similar. Apply an 8mm thick silicon bead fully around heater connection approx. 10mm from the top. Apply an 8mm thick silicon bead fully around the lower fan connection spigot approx. 10mm from the end.
  • Page 13 (continued) INST LL TION INSTRUCTIONS Remove cover from fan terminal Cut flue exhaust tube (hot tube) to length (approximately flush with wall exit). Wall termination will sit against wall. Pull flue tube through approx. 100mm further (will be pushed back once terminal fitted). Feed power cable through wall and into wall terminal.
  • Page 14 (continued) INST LL TION INSTRUCTIONS Slide flue onto connection spigot fully. Tighten clamp fully. Wipe excess silicon, visually check connection to ensure connection is fully sealed. Feed air intake flue pipe through location spigot and fit retaining screw. Push fan terminal into position. And affix to wall.

  • Page 15: Timber Frame Installation

    TIMBER FR ME INST LL TION 2 x 84mm OD FLUES TRIM Plaster to run beyond stud and behind trim Frameout Dimensions (in mm) 1500 1110 * Indication only. Can be smaller or larger.

  • Page 16: Media Installation

    MEDI TYPES 1. Driftwood 2. Pebbles Refer to correct section for media set up. Driftwood Media – Inspire 700 Model Place branch log 1 supports as shown. Place No 2. long log across branch log, using location grooves to locate.
  • Page 17 (continued) MEDI INST LL TION Place No 3 log short crossover log over the long log, use location groove to locate. Place log No 4 over log 3, use groove to locate. Place the second branch log 1 onto support.
  • Page 18 (continued) MEDI INST LL TION Place 2nd log No. 2 log onto branch log, use location grooves to locate. Place 2 log No 3 onto long log, use location groove to locate. Place mixed coals around logs along front section, DO NOT PLACE ON BURNER.
  • Page 19 (continued) MEDI INST LL TION Pebbles Media - Inspire 700 Model Locate side trays on either side of the firebox. Ensure that they are sitting flush against the side walls and screw them in from the front (if the trays do not sit flat then use the rear screw holes to screw them down).
  • Page 20 (continued) MEDI INST LL TION Driftwood media - Inspire 900 Model 900 MODEL - Place Log 5 as shown in the image below. Near LH end. Place log 6 across log 5 using location grooves to locate. Place log 1 as shown in the image below.
  • Page 21 (continued) MEDI INST LL TION Place log 2 across log 1, using location grooves to locate. Place log 3 (short crossover) across log 2, using location groove to locate. Place log 4 over log 3, using groove to locate.
  • Page 22 (continued) MEDI INST LL TION Place Log 1 as shown in the image below. Place Log 2 across Log 1, using location grooves to locate. Place Log 3 (short crossover) over log 2, using location groove to locate.
  • Page 23 (continued) MEDI INST LL TION Place Log 4 over log 3, use groove to locate. Place mixed coals around logs along front section, DO NOT PLACE ON BURNER. Driftwood media - Inspire 1100 model Place Log 5 as shown in the image below.
  • Page 24 (continued) MEDI INST LL TION Place log 6 across log 5 using location grooves to locate. Place log 1 as shown in the image below. Place log 2 across log 1, using location grooves to locate.
  • Page 25 (continued) MEDI INST LL TION Place log 3 (short crossover) across log 2, using location groove to locate. Place log 4 over log 3, using groove to locate. Place Log 1 as shown in the image below.
  • Page 26 (continued) MEDI INST LL TION Place Log 2 across Log 1, using location grooves to locate. Place Log 3 (short crossover) over log 2, using location groove to locate. Place Log 4 over log 3, use groove to locate.
  • Page 27 (continued) MEDI INST LL TION Place Log 8 as shown in the image below. Place log 9 across log 8 as shown Place Log 3 over log 9, use locating groove to locate.
  • Page 28 (continued) MEDI INST LL TION Place assorted coals (random placing) on the front plate as shown in the image below. Pebble media Ensure the rear media support is firmly located in position Place pebbles in random colors / size along back support. Place front pebbles in random colors / size along front - DO NOT PLACE ANY MEDIA ON BURNER...

  • Page 29: Commissioning Procedure

    In the event of abnormal operation please contact your licensed gas installer, gas service personnel or Real Flame Pty Ltd. Abnormal operation may consist of the following, noisy fan, excessive or small flame, unusual flame appearance or colour, excessive sooting or other.
  • Page 30 (continued) OPER TION – USER INSTRUCTIONS REMOTE CONTROL OPER TION Note • not all remote control functions are available. • In the event of loss of power, the appliance will shut down safely. The appliance may automatically resume operation once power is restored, pending the operation mode of the remote control.
  • Page 31 (continued) OPER TION – USER INSTRUCTIONS Temperature indication display With the system in the OFF position, press the thermostat key and the mode key at the same time. Look at the LCD screen on the transmitter to verify that a C or F is visible to the right of the room temperature display.
  • Page 32 (continued) OPER TION – USER INSTRUCTIONS Room thermostat (Transmitter Operation) The remote control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in a room. To activate this function, press the thermostat key. The LCD display on the transmitter will change to show that the room thermostat is “ON”...
  • Page 33 (continued) OPER TION – USER INSTRUCTIONS Continuous pilot/intermittenet pilot (CPI/IPI) selection With the system in “OFF” position, press the mode key to index to the CPI mode icon. Pressing the Up arrow key will activate the Continuous Pilot Ignition mode (CPI). Pressing the Down arrow key will return to IPI.
  • Page 34 (continued) OPER TION – USER INSTRUCTIONS Remote auxilliary relay control - this function is not supported on this fire. Changes to the remote settings will not affect or change the appliance operation.

  • Page 35: Troubleshooting

    If new appliance - run for several hours, open all operating room ventilation and allow paint to cure. • Turn off appliance and the have door seal inspected by service personnel or Real Flame agent. Room air fan is noisy Faulty or dirty fan •...

  • Page 36: Remote Control

    REMOTE CONTROL (must be performed by an authorized service technician) TE CHING RF CODE – Reprogramming remote to heater 1. Electrical tray must be slid forward to reprogram a remote control. 2. Turn the remote to off mode 3. Turn mains power to heater on. 4.

  • Page 37: Wiring Diagram

    WIRING DI GR M...

  • Page 38: Aeration Adjustments And Burner Sizes

    Inspire 1100 Pebbles 16.0 Not available 2. Fan restrictor (mounted in outlet tube of powerflue fan – 31.8mm dia 3. Burner sizes - models for appliance Inspire 700 Nat Gas Inspire 700 LPG BEKEART Furigas -0346 440mm long 50mm dia...

  • Page 39: Conversion Details

    CONVERSION DET ILS - Natural gas / LPG INSPIRE 700 MODEL Valve, pilot injector, main burner injector and burner aeration cap must be changed to suit gas type. Turn appliance off. V LVE CH NGE Turn gas supply off. Remove trim.
  • Page 40 CONVERSION DET ILS - Natural gas / LPG INSPIRE 900 MODEL Valve, pilot injector, burner, main burner injector and burner aeration cap must be changed to suit gas type. Turn appliance off. V LVE CH NGE Turn gas supply off. Remove trim.
  • Page 41 CONVERSION DET ILS - Natural gas / LPG INSPIRE 1100 MODEL Valve, pilot injector, burner, main burner injector, burner aeration cap and rear burner shield must be changed to suit gas type. Turn appliance off. V LVE CH NGE Turn gas supply off. Remove trim.

  • Page 42: Parts List

    P RTS LIST Valve SIT Pilot assembly Injector Burner Remote control Sit Ignition pack / gas control...
