Replacing Node Board Memory DIMMs

A
C
74
1. Remove the graphics card in accordance with the instructions on
2. Remove the air baffle in accordance with the instructions on
Figure 3-15, A and B).
3. Press down on the latches to release the DIMM (refer to
4. Carefully grasp the DIMM by its edge and pull it up and out of the guide rails.

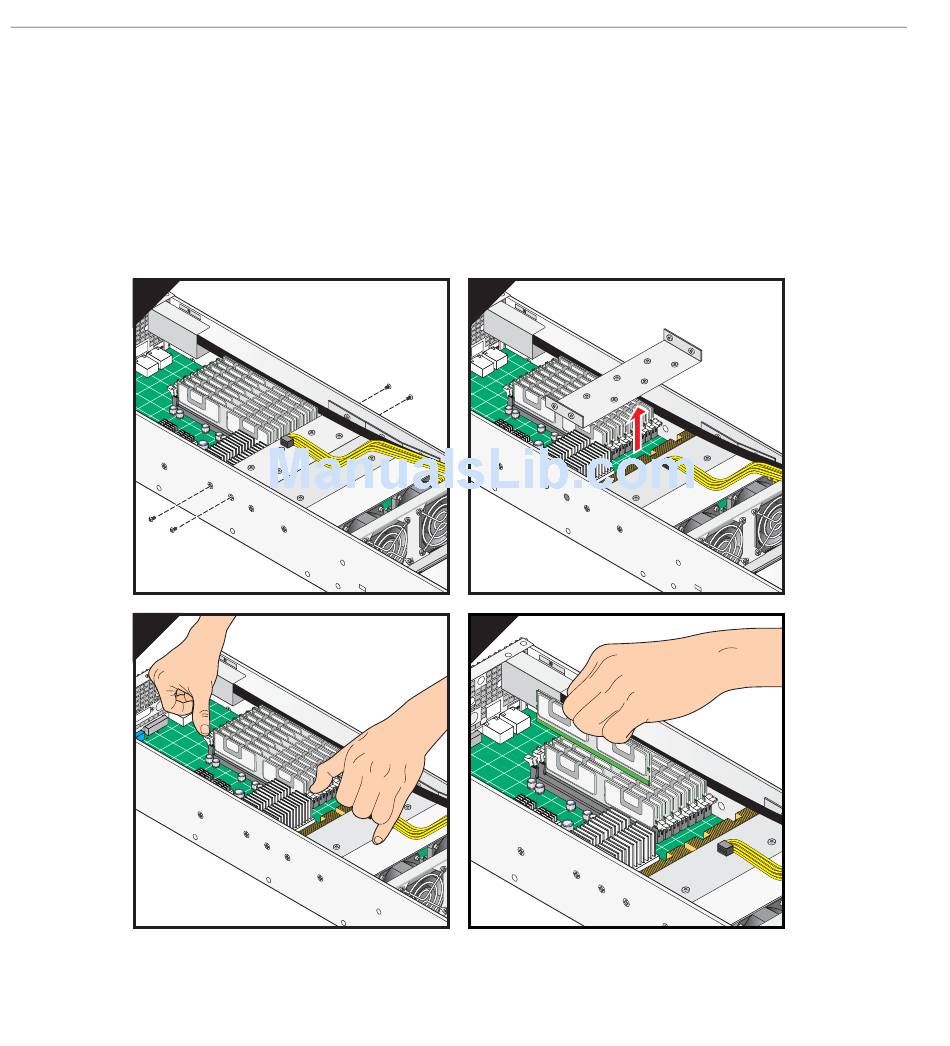

Figure 3-15 DIMM Removal
B
D
page 70.
page 73, (refer to
Figure 3-15, C).
