System Procedures

Replacing the Node Board

90
1. Remove the graphics card in accordance with the instructions on
2. Remove the air baffles (refer to
Screws

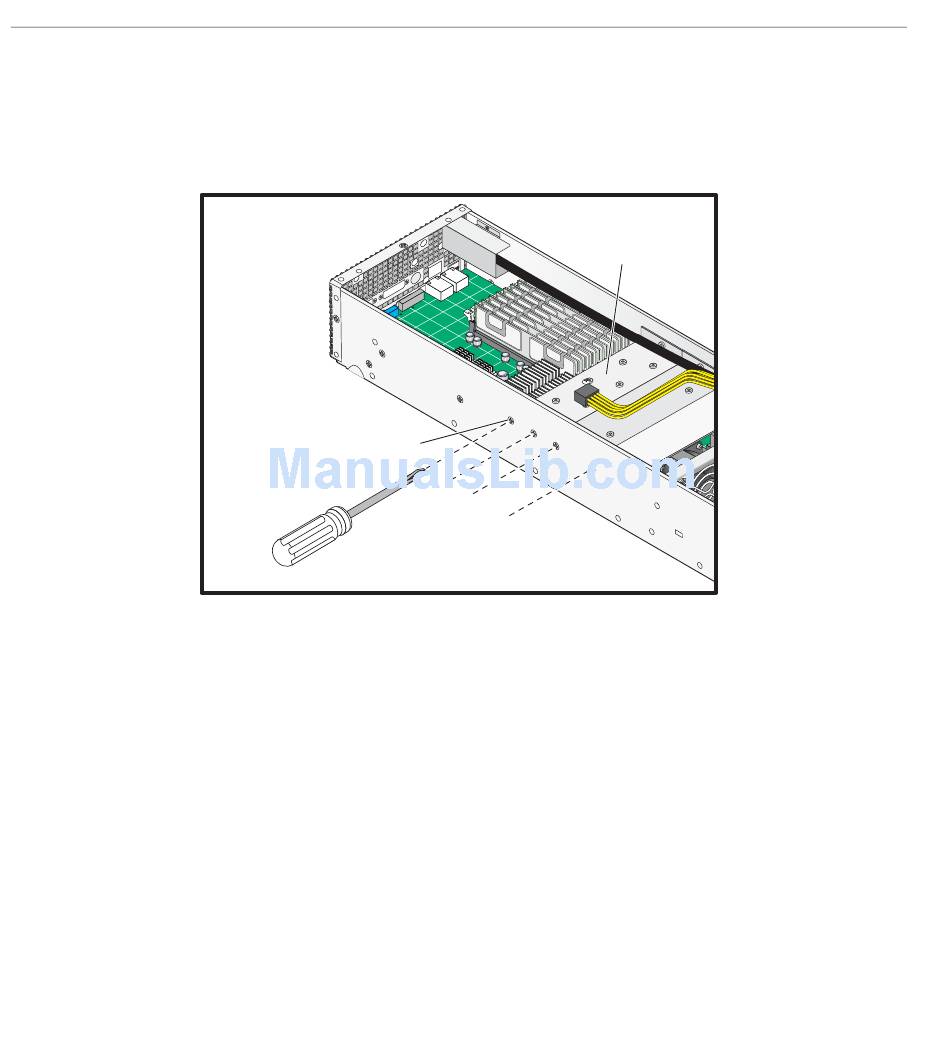

Figure 3-18 Air Baffles
3. Remove the BMC daughter card in accordance with the instructions on
4. Remove the PCI riser board in accordance with the instructions on
5. Remove the memory DIMMs in accordance with the instructions on
6. Remove the heatsinks and processors in accordance with the instructions on
page 75.
7. Disconnect the SATA and power cables that attach to the node board.
8. Remove the screws that secure the node board to the chassis.
Figure 3-18).
Air baffle
Figure 3-11.
page 71.
page 72.
page 74.
007-5483-001
