System Procedures

Removing the Side Cover

A
66
1. Remove the graphics node from the rack in accordance with the instructions on
page 65.
2. Remove the two screws
remove the side cover.

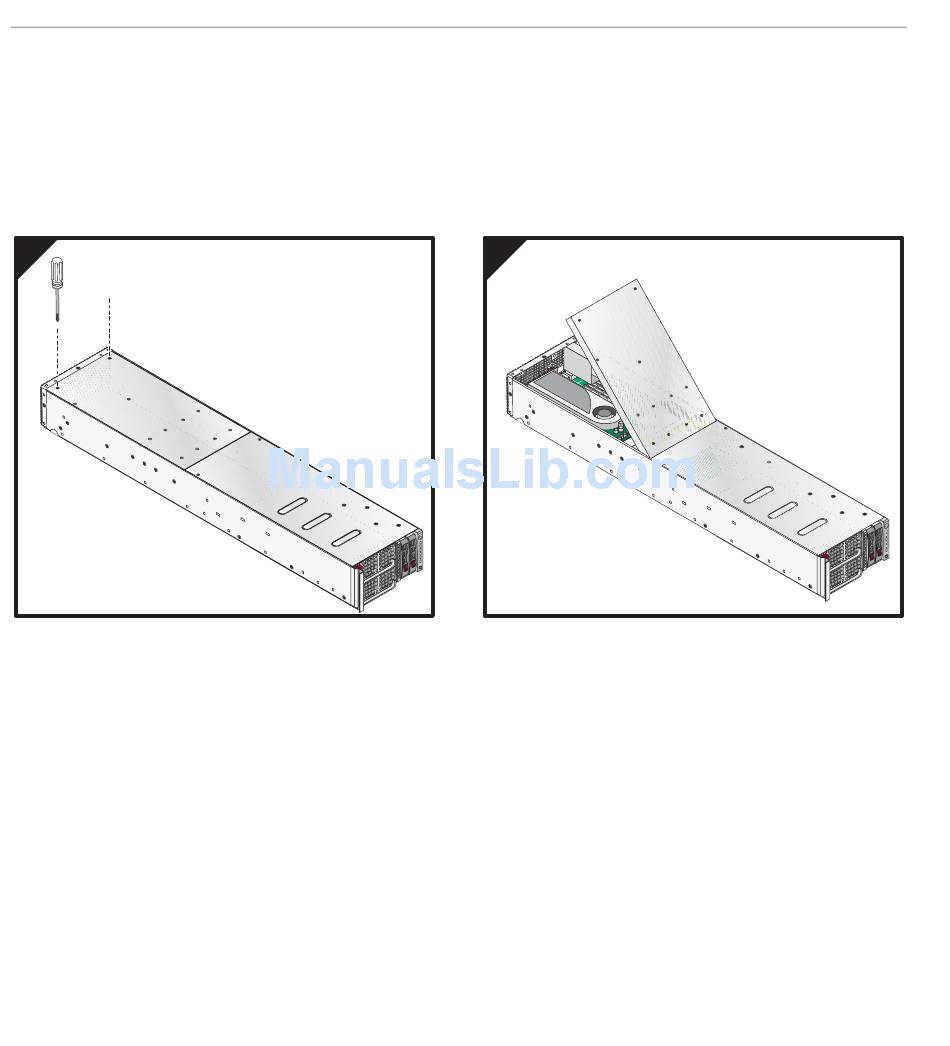

Side Cover Removal
Figure 3-7
(Figure 3-7) that secure the side cover to the chassis and
B
007-5483-001
