Removing the Graphics Node from the Rack

007-5483-001
1.
Power off the system using ipmitool or BMC web interface.
2. Disconnect the AC input power cord from the rear panel of system.
3. Disconnect the video and data cables from the rear panel of the system.
4. Remove the front bezel from the system in accordance with the instructions on
page
64.
5. Slide the graphics node out of the rack and place it on an ESD-safe worksurface.

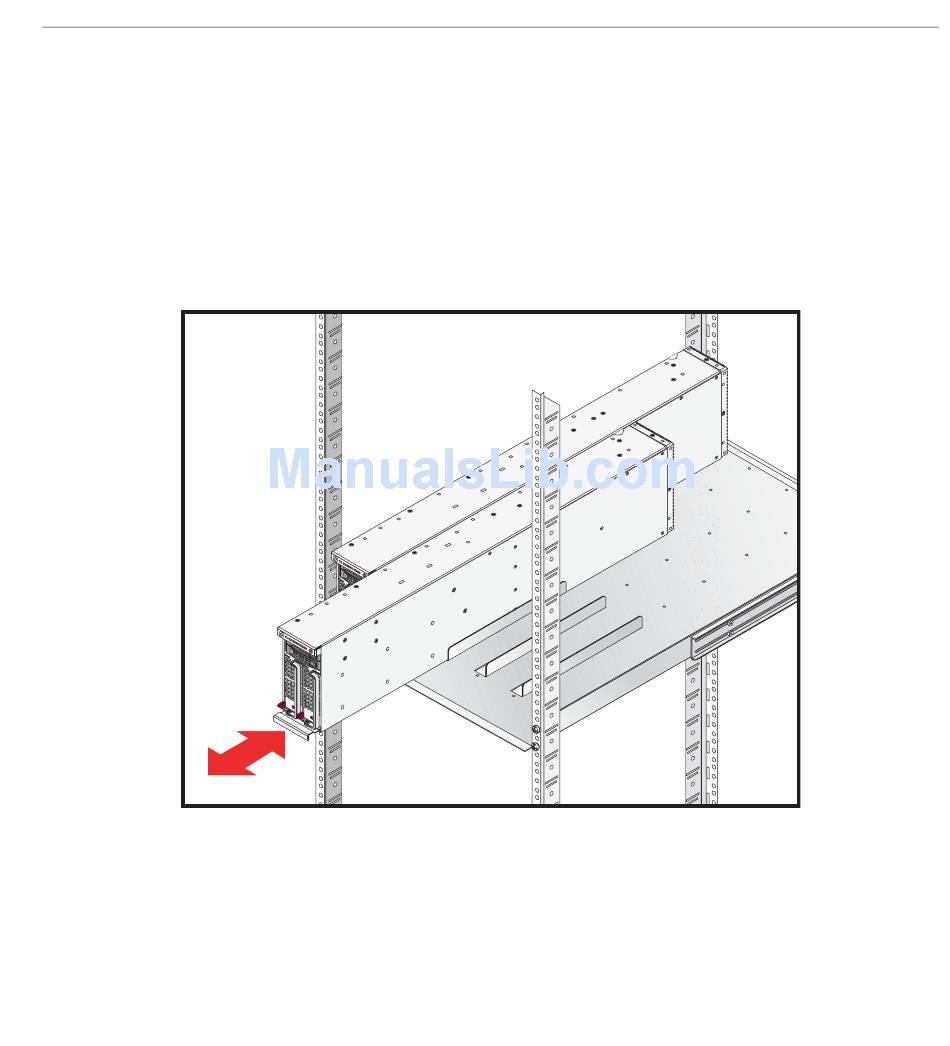

Figure 3-6
Removing the Graphics Node from a Rack
Hardware Replacement Procedures
65
