Rear Panel Components

InfiniBand port
007-5483-001

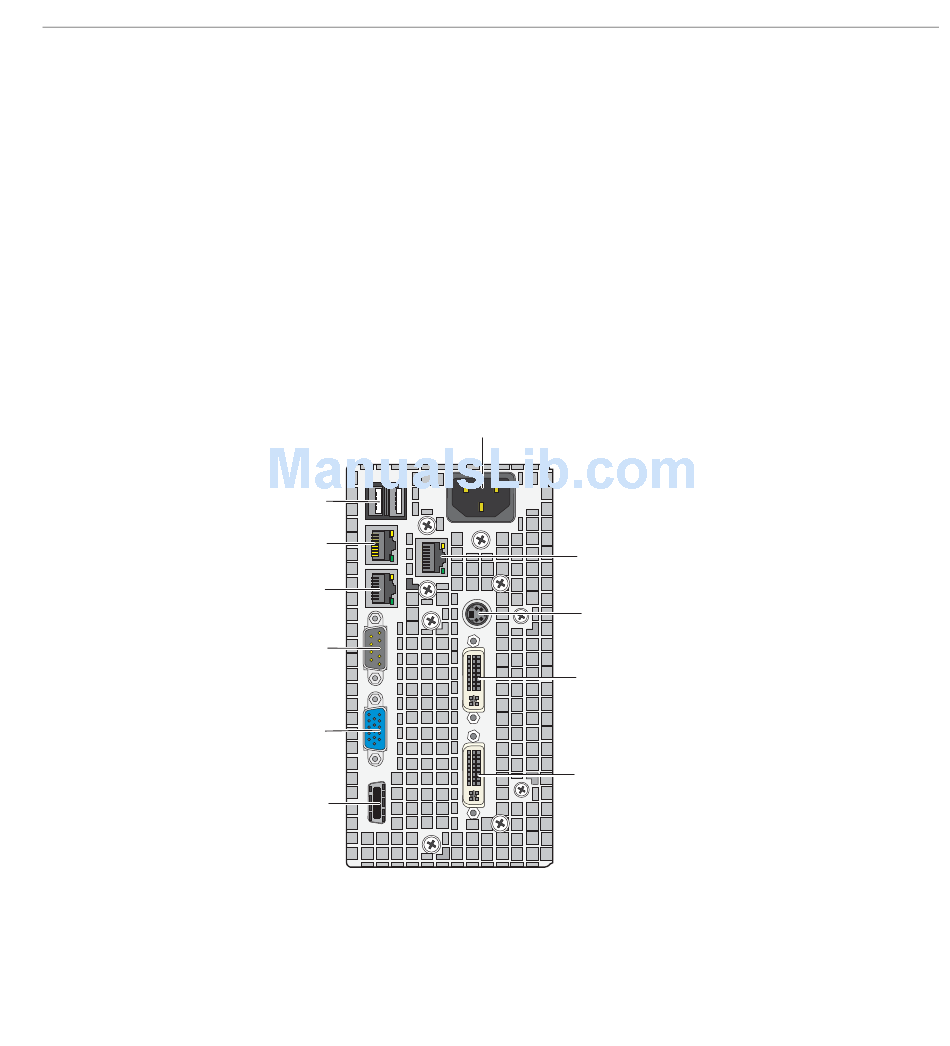

Figure 2-5 shows the location of the rear panel components on the SGI Virtu VN200
graphics node. The rear panel component descriptions are listed below:
• Input AC - Connects to system input AC power cord
• USB ports - Universal Serial Bus (USB 2.0) ports
• GLAN1/2 - Gigabit Ethernet ports
• BMC LAN - (not used)
• Serial port - (Disabled)
• VGA port - (Disabled)
• InfiniBand port - 4x DDR InfiniBand interface
• Stereo emitter - Stereo sync connector available on NVIDIA FX3700, 4600 and 5600
• Secondary DVI-I - Secondary display port
• Primary DVI-I - Primary display port
USB ports
GLAN1
GLAN2
Serial port
(disabled)
VGA port
(disabled)
Rear Panel Components
Figure 2-5
Input AC
Disabled
Stereo emitter
Secondary DVI-I connecto
Primary DVI-I connector
Virtu VN200 Graphics Node
