- Page 1 EBOX-3350MX Series EBOX-3350MX EBOX-3350MX-AP EBOX-3350MX-C2 EBOX-3350MX-C2AP User’s Guide...
- Page 2 Copyright 2014 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 Trademarks Acknowledgment The EBOX-3350MX Series is the registered trademarks of DMP Electronics Inc. Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/or other countries respectively. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners.
-
Page 4: Safety Information
Safety Information WARNING Do not expose EBOX to rain or moisture, in order to prevent shock and fire hazard. Never install EBOX in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing. - Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: Product Description
DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-3350MX Series, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product is comprised of the x86 technology, design, and with onboard 512 MB DDR2 System memory, VGA display, USB, COM ports and LAN Interfaces. -
Page 7: Table Of Contents
Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-3350MX Series Overview 06 System Specifications 07 Peripherals Connecting Chapter 3 11 BIOS Reconfiguring Install the driver Chapter 4 21 Technical Specifications Chapter 5 23 Onboard Connectors Summary... - Page 8 Chapter...
-
Page 9: Unpacking Your Ebox Mini Pc
Unpacking Your EBOX Mini PC Congratulation! You have just acquired EBOX-3350MX Series, please check the following items: Packing List: Q’ty Item No. Description EBOX-3350MX Series VESA PC 75 x 75mm to 100 x100mm VESA mounting rack (Optional) Note: The accessories are subject to change without immediate notice. - Page 10 The EBOX-3350MX Series is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, it can be easily integrated with a VESA LCD to bring you EBOX-3350MX Series access at any time.
- Page 11 Chapter...
-
Page 12: Ebox-3350Mx Series Overview
F: SD Slot For the storage SD card, the system is bootable from SD card Back Panel G: USB V2.0 port H: VGA port D-Sub 15-pin I: RJ-45 LAN Jack J: Power Jack K: RS-232 port * Available in EBOX-3350MX C2/C2AP... -
Page 13: System Specifications
System Specification Operating System Vortex86MX (933 MHz) Windows XP Home/ Pro. (System on Chip) Windows XP Embedded Windows Embedded CE Main Memory 512MB DDR2 (16-bit DRAM bus) Supported Linux Distribution list: BIOS 1. Debian 4.0 AMI BIOS 2. Debian 5.0 3. - Page 14 See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input of EBOX-3350MX Series. Note: With the Auto Power On supported models (Optional), the system then will be turned on automatically.
- Page 15 Peripherals Connecting the USB EBOX-3350MX series provides 3 external USB ports ( 2 at the front, 1 at the rear ). C: SD Slot For booting device by SD Card. D: Microphone/Earphone The EBox-3350MX Series supports Microphone Input and Speaker Output...
-
Page 16: Peripherals Connecting
There is an available RJ-45 LAN jack for Ethernet connection. (see left diagram for RJ-45 Jack). Connecting Serial port H: Serial Ports (Available in EBOX-3350MX-C2/C2AP) The serial port is usually connected to a serial device like modem or terminal devices. - Page 17 Chapter...
-
Page 18: Bios Reconfiguring
BIOS Reconfiguring AMI BIOS is used in the EBOX-3350MX Series. To reconfigure the EBOX-3350MX Series, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup to change. Press <Esc> to go back to main menu. - Page 19 Debian / Ubuntu Linux Installation Guide In the MX platform, with the newer IDE and Ethernet controller, both of the two controllers just start supporting from kernel 2.6.28.3. Please refer to the guide to help you complete the installation. How to install Linux on Vortex86MX platform? Preparation: 1.
- Page 20 D. To unpack the kernel package and update. # dpkg -i xxx.deb # update-initramfs –k 2.6.30-vortex86mx -c # update-grub E. When these three procedures completed, type reboot to reboot system. # reboot Step3: Moving the storage installed Linux, back to VortexMX platform. Step4: Turn on the power to boot.
- Page 21 For Ubuntu When it starts booting, press the Esc key when it boot. Confirm the Grub list first. There should have an option 2.6.30-vortex86mx, and then to boot. For Debian Please press the Esc key to confirm Grub list and press E key to confirm and modify the storage’s codename.
- Page 22 Chapter...
-
Page 23: Technical Specifications
2. Power Supply 10W Micro USB EU and US Type offer to sell as extra spare parts EBOX-3350MX Series Models Listing: EBOX-3350MX: Standard Version EBOX-3350MX-AP: Standard Version with Auto Power On Support EBOX-3300MX-C2: Standard Version with RS-232 port x 2 EBOX-3300MX-C2AP: Standard Version with RS-232 port x 2 & Auto Power On Support Note: “AP”... - Page 24 Chapter...
-
Page 25: Onboard Connectors Summary

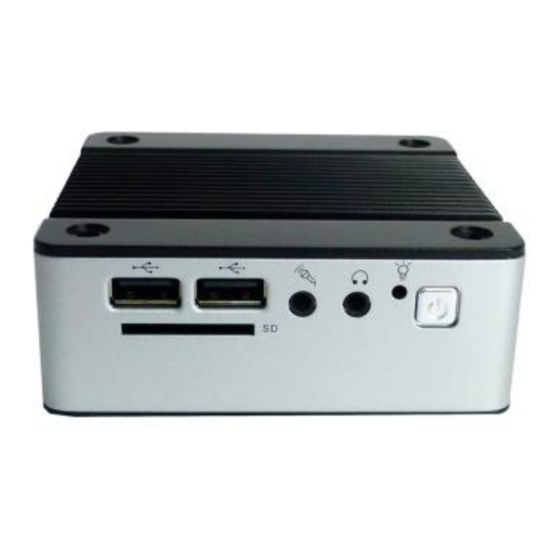

Box Header 5 x 2 2.0mm 10-pin J14 (Note) COM2 Port Box Header 5 x 2 2.0mm 10-pin Note: J13 & J14 only available in EBOX-3350MX-C2/ C2AP Front Connectors Outline A: Reset Button B: Power LED C: Line out D: Mic in E: USB V2.0... - Page 26 Rear Connectors Outline EBOX-3350MX/ AP REAR LOOK G: USB V2.0 H: VGA I : RJ-45 LAN J : DC Power Jack EBOX-3350MX-C2/ C2AP REAR LOOK K: RS-232 Port *Only Available in EBOX-3350MX-C2/ 3350MX-C2AP...
-
Page 27: Pin Assignments
Pin Assignments J3: VGA – 15-pin D-Sub Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J4: Mini USB DC Power Input Pin # Signal Name +5V Input USB In - USB In + None J7, J8: USB : For connection to external USB device –... - Page 28 Pin Assignments J12: LAN: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- J13, J14: COM - 9-pin D-Sub Connector Signal Signal Pin # Pin # Name Name LEDS: POWER ON / OFF LED Color State Green Power On...
- Page 29 Chapter...
-
Page 30: Taking Care Your Ebox Vesa Pc
Taking Care of your EBOX This section gives you some guidelines on using EBOX-3350MX Series – Safe using, Storing and Handling. Storing Do not place EBOX-3350MX Series in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct ... - Page 31 Using Cables for Connection To avoid the problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your VESA PC Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.
-
Page 32: Troubleshooting
Make sure the power indicator shows the power is on. See section 2 for more information about “EBOX-3350MX Series Overview”. When the EBOX-3350MX Series is plugged into a power strip or the UPS (Uninterruptible Power Supply), make sure the power strip or UPS is turned on and working normally. - Page 33 Follow the steps as written in item B. BIOS error message. If you have just connected EBOX-3350MX Series to a CD/DVD or USB Drivers, remove these peripherals.. And restart to confirm that the Windows operating system starts properly. If EBOX- 3350MX Series continues to display the message ”Operating system not found,”...
- Page 34 Chapter...
-
Page 35: Terms And Condition
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
