Marquis Infinite MQRB4436N Installation Instructions Manual

Infinite series zero clearance vented gas fireplace
Hide thumbs Also See for Infinite MQRB4436N:
Table of Contents

Advertisement

Quick Links

Model Numbers:
Certified to:
These instructions must be kept with the unit for future reference.
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
Warning: Improper installation, adjustment, alteration, service or maintenance can cause
property damage, personal injury or loss of life. Refer to this manual. Installation and service
must be performed by a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc.
\Çy|Ç|àx fxÜ|xá

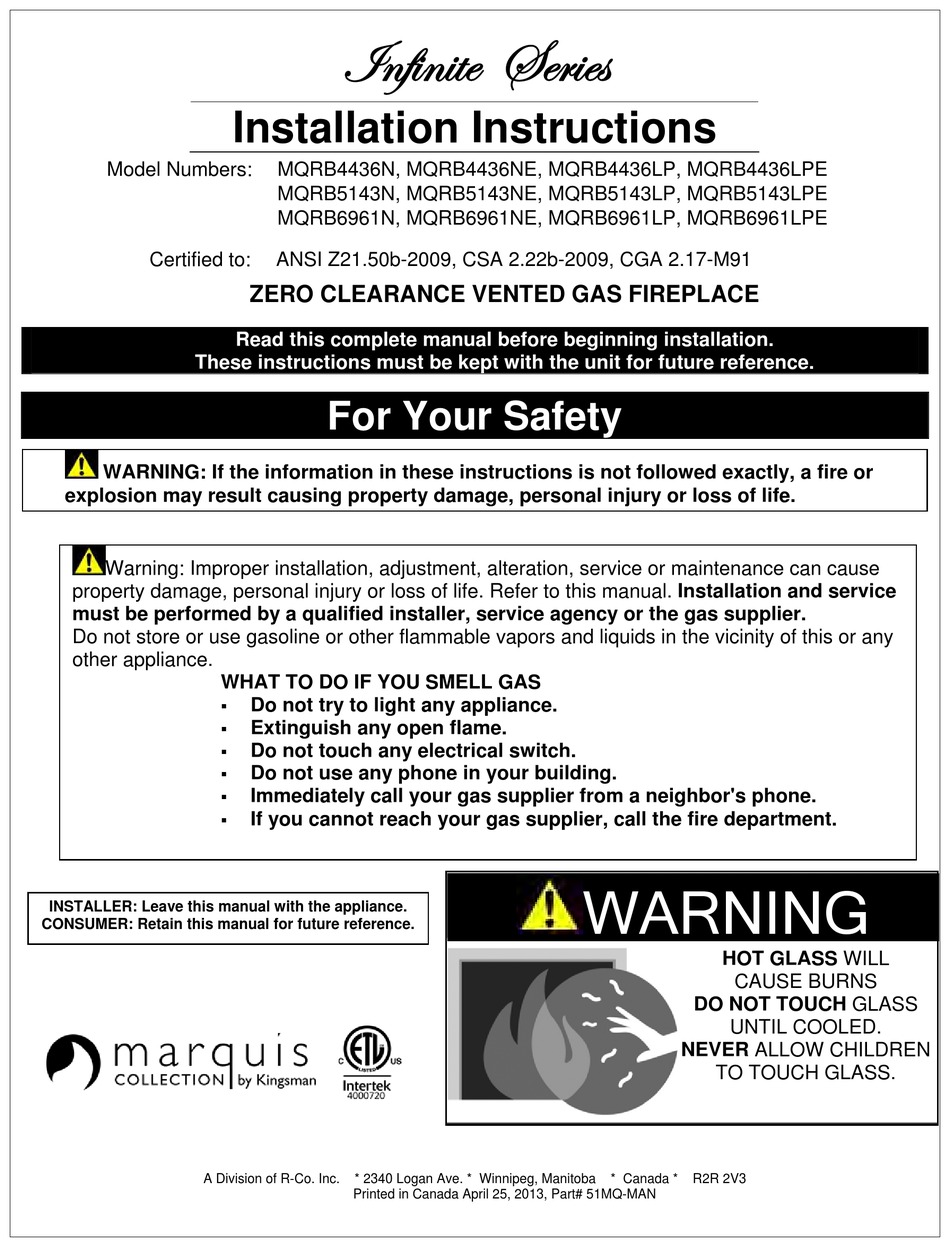

Installation Instructions

MQRB4436N, MQRB4436NE, MQRB4436LP, MQRB4436LPE
MQRB5143N, MQRB5143NE, MQRB5143LP, MQRB5143LPE
MQRB6961N, MQRB6961NE, MQRB6961LP, MQRB6961LPE
ANSI Z21.50b-2009, CSA 2.22b-2009, CGA 2.17-M91
ZERO CLEARANCE VENTED GAS FIREPLACE
Read this complete manual before beginning installation.
For Your Safety
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
If you cannot reach your gas supplier, call the fire department.
* 2340 Logan Ave. * Winnipeg, Manitoba
Printed in Canada April 25, 2013, Part# 51MQ-MAN
WARNING
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
* Canada *
R2R 2V3
