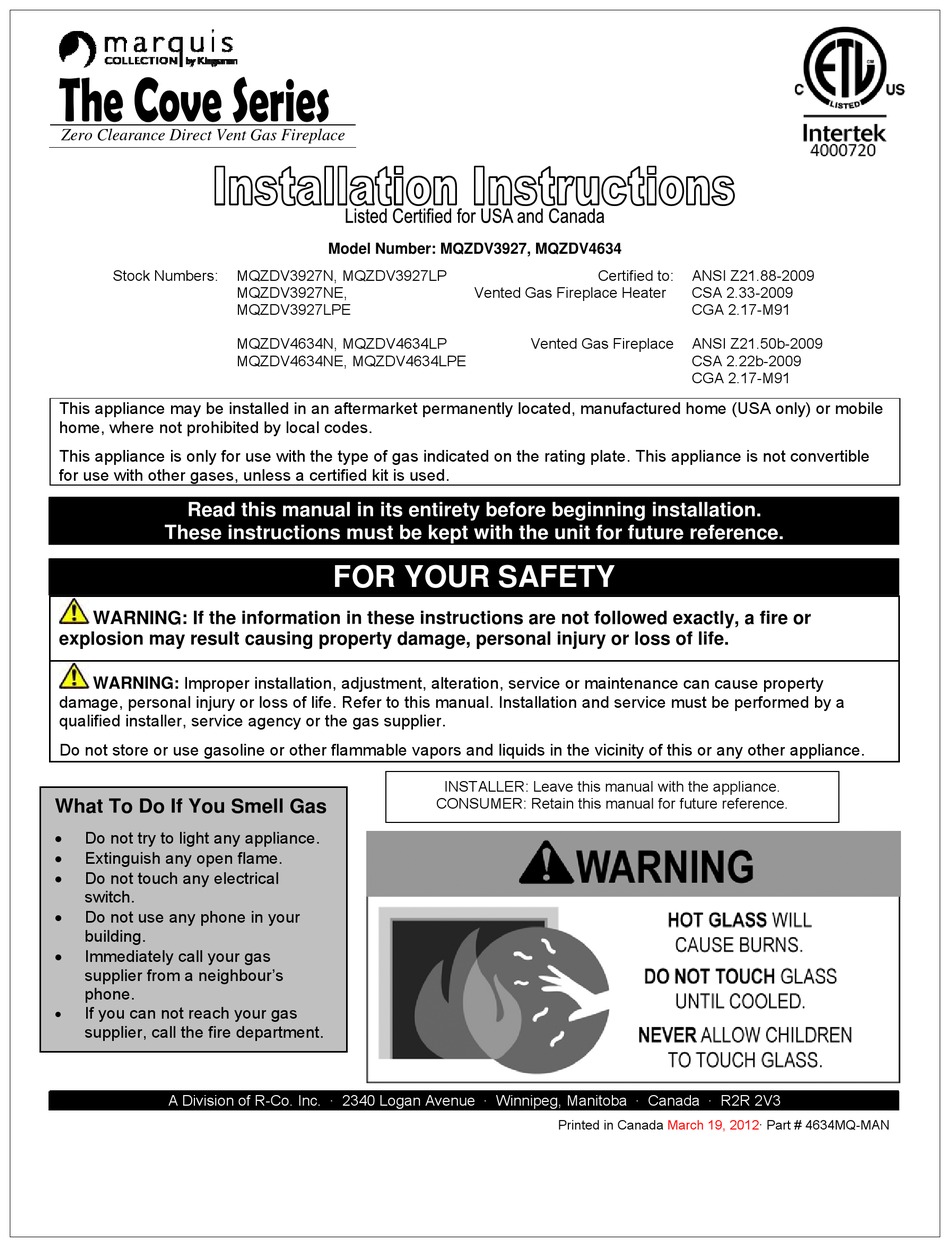

Zero Clearance Direct Vent Gas Fireplace
Stock Numbers:
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
Read this manual in its entirety before beginning installation.
These instructions must be kept with the unit for future reference.
WARNING: If the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Refer to this manual. Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
What To Do If You Smell Gas
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical
switch.
Do not use any phone in your
building.
Immediately call your gas
supplier from a neighbour's
phone.
If you can not reach your gas
supplier, call the fire department.
A Division of R-Co. Inc. · 2340 Logan Avenue · Winnipeg, Manitoba · Canada · R2R 2V3
Model Number: MQZDV3927, MQZDV4634
MQZDV3927N, MQZDV3927LP
MQZDV3927NE,
MQZDV3927LPE
MQZDV4634N, MQZDV4634LP
MQZDV4634NE, MQZDV4634LPE
FOR YOUR SAFETY
Certified to:
Vented Gas Fireplace Heater
Vented Gas Fireplace
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Printed in Canada
ANSI Z21.88-2009
CSA 2.33-2009
CGA 2.17-M91
ANSI Z21.50b-2009
CSA 2.22b-2009
CGA 2.17-M91
March 19,
2012· Part # 4634MQ-MAN
Advertisement
Table of Contents
Related Manuals for Marquis Cove MQZDV3927N
Summary of Contents for Marquis Cove MQZDV3927N
- Page 1 Zero Clearance Direct Vent Gas Fireplace Model Number: MQZDV3927, MQZDV4634 Stock Numbers: MQZDV3927N, MQZDV3927LP Certified to: ANSI Z21.88-2009 MQZDV3927NE, Vented Gas Fireplace Heater CSA 2.33-2009 MQZDV3927LPE CGA 2.17-M91 MQZDV4634N, MQZDV4634LP Vented Gas Fireplace ANSI Z21.50b-2009 MQZDV4634NE, MQZDV4634LPE CSA 2.22b-2009 CGA 2.17-M91 This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.
-
Page 2: Table Of Contents
Table of Contents Table of Contents..............................Pre-installation Questions and Answers....................... Operating Instructions............................Mobile Home/Manufactured Housing Installation....................Warnings, Installations, and Operations....................... Installation Requirements for the Commonwealth of Massachusetts..............Vertical Venting in Cold Climates.......................... Locating your Fireplace............................Fireplace General Dimensions..........................Framing your Gas Fireplace..........................10-11 3927 / 4634 Nailing Tab Guide.......................... - Page 3 Wall Thimble and Roof Support..........................Parts List -MQZDV3927 - MQZDV4634........................ 51-52 Troubleshooting the Gas Control System......................Limited Lifetime Warranty.............................
-
Page 4: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 5: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 6: Warnings, Installations, And Operations
Warnings, Installations, and Operations Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CGA-B149.1 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the national Electrical Code;... -
Page 7: Installation Requirements For The Commonwealth Of Massachusetts
• Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they provide a primary heat source. • This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home. -
Page 8: Vertical Venting In Cold Climates
Vertical Venting in Cold Climates In cold climate conditions where temperatures go below -10 degrees Celsius or 14 degrees Fahrenheit, we recommend that the chase be insulated and where the vent pipe enters into the attic space that the pipe be wrapped with an insulated Mylar sleeve. -
Page 9: Fireplace General Dimensions
Fireplace General Dimensions MQZDV3927 MQZDV4634 Figure 3 - General dimensions for the fireplace. -
Page 10: Framing Your Gas Fireplace
Framing your Gas Fireplace NOTE: The diagrams shown are only intended to illustrate dimensions. They are not to be used as advice for construction practices. Please have the appliance framed and installed by a qualified installer adhering to local building codes and practices. Choose a fireplace location and frame it in accordance with the framing dimensions as illustrated in Figure 4 and Figure 5. - Page 11 For horizontal venting, with a 90° bend directly from the unit, please note the following: At the top of the 90° bend there must be a clearance of at least 4” [10.1cm] for the MQZDV3927 and 11” [27.9cm] for the MQZDV4634 between the pipe and any combustible material.
-
Page 12: 3927 / 4634 Nailing Tab Guide
3927 / 4634 Nailing Tab Guide [Qty] 2 Nailing Tabs are located on each side of the fireplace front frame. These Nailing Tabs can be used in two ways: 1/2” Drywall Flush with Face of Fireplace – Framing Flush with Face of Fireplace -Fireplace to be covered with Non-Combustibles (e.g. -
Page 13: Facing Material Requirements
Facing Material Requirements Figure 1 - Facing material installation requirements. Clearance to Combustibles MQZDV3927 MQZDV4634 Back 0” [0cm] 0” [0cm] Side (from Stand-offs) 0” [0cm] 0” [0cm] Floor* 0” [0cm] 0” [0cm] Min. Ceiling Height (from bottom of fireplace) 60” [152cm] 72”... -
Page 14: Mantel Clearances
Mantel Clearances Before installing any mantels it is important to determine the combustibility of its material(s). There are two types of mantels to consider: Combustible and non-combustible. MQZDV3927 MQZDV4634 Figure 7 - Mantel clearance to combustible materials requirements. A combustible Mantel is one that consists of material(s) that may discolor, combust, or lose its integrity in the presence of heat. These types of mantel must strictly conform to the dimensional requirements shown in Figure 7 and Figure 8. -
Page 15: Glass Door And Latch Removal Guide
Glass Door and Latch Removal Guide The latches to secure the glass door are located on the sides of the unit. In the MQZDV3927 model there are four [4] latches in total holding the door in place, while the MQZDV4634 has six [6]. Over time the spring tension on the latches will weaken. If this is the case simply remove the latch assembly by unfastening the hex screws, unbolt the Lock Nut, and replace the springs. -
Page 16: Brick Liner Panel Installation Guide
Brick Liner Panel Installation Guide Remove the glass door, grate bar assembly, and firebox baffle. Tilt the Rear Brick Panel backward and position it against the back firebox wall. The panel can be secured by folding down the two tabs inside the top of the firebox. Tilt the side panels into the firebox as shown, and ask for assistance to help hold them in place. -
Page 17: Metal And Porcelain Liner Panel Installation Guide
Metal and Porcelain Liner Panel Installation Guide 1. Remove the glass door, grate bar assembly, and firebox baffle. Remove the screws from the lamp plate and lay it on top of the burner with wires connected. Also remove the left and right filler pieces from the burner pan (See fig.1 below). -
Page 18: Access Panels Removal
Access Panels Removal This unit is equipped with four [4] different access panels: left and right vertical panels, and two [2] firebox cavity cover plates that are located inside the firebox (behind the side liners). NOTE: Cavity cover plates are not installed at the factory. Figure 11 –... -
Page 19: Z39Fk Fan Kit
Z39FK Fan Kit Fan Installation Instructions for 3927ZDV & 4634ZDV Kit Contains: Blower Motor QLN65/0018 in housing with 8ft Cord & 2-14” leads Variable speed control w/ Wall Mount Thermodisc (Thermodisc Assembly is mounted on the left side of firebox- See illustration below.) WARNING Electrical Grounding Instructions... -
Page 20: Split Receptacle- Fan Speed Control Outside Of Fireplace
Split Receptacle- Fan Speed Control Outside of Fireplace If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below. -
Page 21: Mqlogf39 Log Installation
MQLOGF39 Log Installation Log 8 Log 9 Tab 4 Tab 1 Tab 2 Tab 3 Parts Required: 1Ea MQLOGF39 -9 Piece Fibre Logset 1Ea Glowing Embers –Supplied with Fireplace 1Ea Lava Rock (12 x12 Full) –Supplied with Fireplace 1Ea Vermiculite –Supplied with Fireplace Step 1: Place Log 8 and Log 9 in front of the lights. - Page 22 Log 1 Log 5 Log 7 Log 6 Tab 4 Step 4: Locate hole on bottom of Log 5 and Place onto Tab4. Step 5: Place Log 6 & Log 7 onto the grate bars as shown Top branch of Log 5 will be in contact with Log 1. above.
-
Page 23: Mqlogf46 Log Installation
MQLOGF46 Log Installation Parts Required: 1Ea MQLOGF46 -9 Piece Fibre Logset 2Ea Glowing Embers –Supplied with Fireplace 2Ea Lava Rock (12 x12 Full) –Supplied with Fireplace 1Ea Vermiculite –Supplied with Fireplace Log 3 Log 2 Log 1 Log 8 Log 9 Gas Pipe Tab 2 Tab 4... - Page 24 Log 5 (Groove) Log 3 Log 2 Log 2 (Knot) Log 4 Tab 3 Step 3: Place Log 4 on the right ember plate next to Log 2 as Step 4: Place Log 5 on top of the left ember plate behind shown.
-
Page 25: Burner Installation/Removal Guide
Burner Installation/Removal Guide CAUTION Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. Allow the appliance to cool to room temperature. Note that the pilot assembly may be hot in an intermittent or standing- pilot system—even if the main burner was never on. - Page 26 Figure 16 - Burner tube removal guide. Pilot Removal Guide Remove logs and grate bar assembly. Please refer to Figure 16 for illustration. Remove screws from Pilot Assembly and Pilot Access Cover Plate. Undo pilot connections. Remove Pilot Assembly. Do not discard Pilot Access Cover Plate. Installation is the reverse of these steps.
-
Page 27: Light Wiring Connections
Light Wiring Connections Outlet May Be Connected to Switch to Control Lights. Light Transformer Pull One Connector Apart to Add Switch to Lights. Light Transformer Light Transformer Plugged into Outlet- As shipped (Requires Light Transformer Plugged into “Aux Out” outlet on Optional either an in line switch or a switched outlet to turn lights on and Electrical Control Module. -
Page 28: Mqrsp39 Glass/Rock Tray -Conversion Guide
MQRSP39 Glass/Rock Tray -Conversion Guide Part No: MQRSP39BL Media Options: MQROCK2 - Rock Set – Contemporary Collection [Neutral Colour] MQROCK3 - Rock Set – Contemporary Collection [Multicoloured] Contents: RSP Rock Tray MQG5W - Decorative Ember Glass [White, 5lbs] Lamp Shield MQG5A - Decorative Ember Glass [Turquoise, 5lbs] Cover Plate MQG5C - Decorative Ember Glass [Copper, 5lbs]... -
Page 29: Mqrsp39 Glass/Rock Tray -Rock Placement
MQRSP39 Glass/Rock Tray -Rock Placement Lamp Plate Parts Required: Ensure Grate Bar Assembly has been removed before 1Ea MQRSP39BL Glass/ Rock Tray placement of Glass/Rock Tray, as noted on Conversion Guide 1Ea MQRock2 (Neutral) –OR- MQRock3 (Multicoloured) page. 1Ea Lava Rock (12 x 12 Full) - Supplied with Fireplace Tabs Flat Step 2: Place Rocks into position as shown. - Page 30 Step 5: Place Rocks into position as shown above. Step 6: Place Rocks into position as shown above. Step 7: Place Rocks into position as shown above. Rock Setup is complete. Lava Rocks may be spread around firebox bottom if desired. NOTE: If flame impingement on the rocks causes sooting then you may have to move, or remove, one or more rocks.
-
Page 31: Mqrsp39 Glass/Rock Tray -Glass Ember Placement
MQRSP39 Glass/Rock Tray -Glass Ember Placement Light Plate Parts Required: See Conversion Guide page. Ensure Grate Bar Assembly has been 1Ea MQRSP39BL Glass/ Rock Tray removed, Light Plate has been mounted in rear slots, and Lamp Shield 1Ea MQG5W (White) –OR- MQG5A (Turquoise) –OR- MQG5C and Cover Plate (if required) are in place before placement of (Copper) Decorative Ember Glass Glass/Rock Tray, as noted. -
Page 32: Gas Line Access And Locations
Gas Line Access and Locations The views above show the following gas line access and locations: A: Burner to valve. B: Gas Line to valve routing access. C: Valve Location. Access panels [2] inside firebox must be sealed with [10] screws and a 5/16” bead of black Millpac (supplied). -
Page 33: Gas Line Installation
Canada or the National Fuel Gas code ANSI Z223.1 in the U.S.A. IMPORTANT: Always check for gas leaks with a soap and water solution. DO NOT USE OPEN FLAME FOR LEAK TESTING. Models MQZDV3927N MQZDV3927LP MQZDV4634N MQZDV4634LP... -
Page 34: Millivolt System, Lighting, And Burner Control
Millivolt System, Lighting, and Burner Control WARNING FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. BEFORE LIGHTING •... -
Page 35: Gas Conversion Instructions
Gas Conversion Instructions Kit Number Description Pilot Orifice Burner Orifice Air Shutter Hi/Lo Regulator Brass (1000-255) 3927-CKLP LP Conversion 1001-P167SI Full Open 1001-P202SI #30 (977.167) 4634-CKLP -Millivolt- Full Open (0.907.202) 3927-CKNG NG Conversion 1001-P165SI 1/4” 1001-P201SI #51 (977.165) 4634-CKNG -Millivolt- 3/8”... -
Page 36: Gas Conversion For Top Convertible Pilot (Series 019065X)
Gas Conversion for Top Convertible Pilot (Series 019065X) Instructions for converting SIT 190 series pilot burner injection from NG to LPG and from NG to LPG only. This information should be considered as supplemental to the Appliance Manufacturer’s Instructions. WARNING The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 38: Burner System Maintenance
Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 39: Ipi Electronic Ignition System
IPI Electronic Ignition System Overview The IPI system is an advanced burner controller that provides you with the option of having either a Standing-Pilot, or an intermittent igniting system. This alternating mode is controlled by the CPI/IPI Switch (Continuous Pilot Ignition/Intermittent Pilot Ignition) located on the IPI System Box. - Page 40 NOTE: The Remote Receiver module can also be located outside of the appliance to a maximum of 6ft away installed in a certified deep wall switch electrical box (2-3/4” depth). For this configuration an extension wiring harness (P/N: 1001-P904SI) is required. Electrical Control Module: The Electrical Control Module is a device that allows components such as the fan or lamp assembly to be controlled remotely.
- Page 41 Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities. Receiver Module 0.584.523/521/221 1001-P221SI Configuration #2: Remote ON/OFF and manual HI/LO capabilities. OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown in the figure above.
- Page 42 0.584.523 /521/221 0.584.523/521/221 1001-P221si 1001-P221SI Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities. Refer to the Fan Installation/Removal Guide section for fan installation. Receiver Module 1001-P221SI...
-
Page 43: Ipi Lighting Instructions
IPI Lighting Instructions WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. -
Page 44: Venting
Venting NOTES: Clearances are to the edge of terminal plate. Add 6-3/4” for MQZDV3927 / 8-1/8” MQZDV4634 to clearances to arrive at centerline. Local codes or regulations may require different clearances. [1,2] Clearance above grade, veranda, porch, deck, or balcony 12in [30cm] min. Clearance to window or door that may be opened. -
Page 45: Termination
Termination It is imperative that the vent termination be located observing the minimum clearances as shown. There must not be any obstruction such as bushes, garden sheds, fences, decks or utility buildings within 24" from the front of the termination plate. Do not locate termination where excessive snow or ice build-up may occur. -
Page 46: Horizontal Vent Table
Horizontal Vent Table To use the Horizontal Vent Table, determine the total vertical height of the system and the number of bends required. Locate the value on the first column and then move across to see the corresponding maximum allowable horizontal run. NOTE: Measurements are taken from the center of the pipe. -
Page 47: General Vent Installation Information
General Vent Installation Information This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex (Z- Flex) Venting Kits and components specifically approved and LABELED for this stove may be used. MQZDV3927 is also approved for use with Simpson Dura-Vent Direct Vent system (Model DV-GS 5/8 for MQZDV3927 only), AmeriVent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp. -
Page 48: Installation Of Sidewall Venting
Installation of Sidewall Venting Note that the minimum height from the bottom of fireplace to the centre of vent is 55-1/2" [141 cm] for the MQZDV3927 and 68-1/2” [174cm] for the MQZDV4634. This dimension is for installations where venting exits immediately after its rise from the unit (i.e. -
Page 49: Vertical Venting Through Roof
Vertical Venting Through Roof When venting vertically through the roof, an Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. The Attic Insulation Shield is designed to keep insulation material away from the vent pipe. -
Page 50: Wall Thimble And Roof Support
Wrap the Storm Collar around the vent above the flashing. Secure the ends together loosely with the nuts and bolts supplied. Slide the collar down the vent until it comes in contact with the flashing. Tighten the bolt and seal the Storm Collar to the vent with suitable waterproof non-combustible mastic. -
Page 51: Parts List -Mqzdv3927 - Mqzdv4634
Parts List MQZDV3927 MQZDV4634 Part No. Description Part No. Description Fireplace Base Unit Fireplace Base Unit MQZDV3927N DV HEATER RATED FIREPLACE MQZDV4634N DV DECORATIVE FIREPLACE [Millivolt] [Millivolt] MQZDV3927NE [IPI] NG; 42500Btu; 5/7 Flue; J. Box; Lights MQZDV4634NE [IPI] NG; 59000Btu; 7/10 Flue; J. Box; Lights... - Page 52 Common Parts for MQZDV3927 and MQZDV4634 Electronic Ignition / Remote Control [IPI] Lighting Accessories EGTRC Remote Control IPI 3927ZDV-P779-1 Halogen Bulb [Thermostat (Thermostats are not permitted for 10W 12V 64418 [or Sylvania 58691] vented [Decorative] gas fireplaces installed in the Light bulbs are NOT covered under warranty.
-
Page 53: Troubleshooting The Gas Control System
Troubleshooting the Gas Control System WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not light. Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is electrode at pilot. -
Page 54: Limited Lifetime Warranty
This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
