Installation Instructions
Model Numbers:
Certified to:
- Certified for use with Adjustable Vented Platform (AVP), and Heat Distribution System (HDS) -
⚠
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department
-Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
A Division of R-Co. Inc. 2340 Logan Ave. Winnipeg, Manitoba Canada R2R 2V3 Ph.: (204) 632-1962

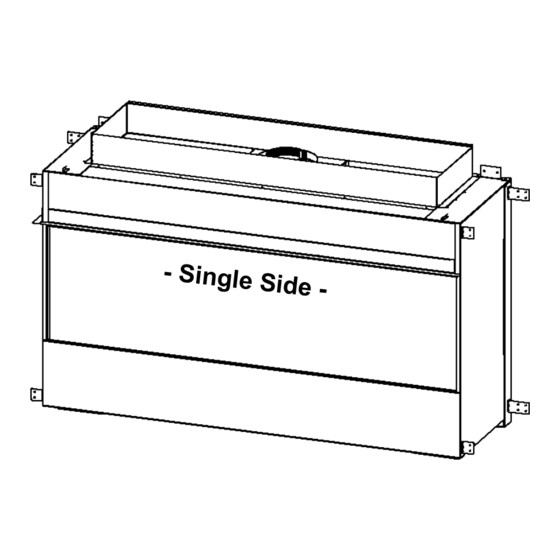

Single Side Units:
MQVL48N, MQVL48LP, MQVL48NE, MQVL48LPE
Bay Peninsula Units:
MQVLB48N, MQVLB48LP, MQVLB48NE, MQVLB48LPE
ANSI Z21.88-2017/CSA 2.33-2017 and CSA2.17-2017
VENTED GAS FIREPLACE HEATER
CONSUMER: Retain this manual for future reference.
Printed in Canada June 26, 2018 Part# 48MQVL-MAN17
ENCLAVE
