Marquis MQRB4436N Installation Instructions Manual

Zero clearance vented gas fireplace
Hide thumbs Also See for MQRB4436N:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

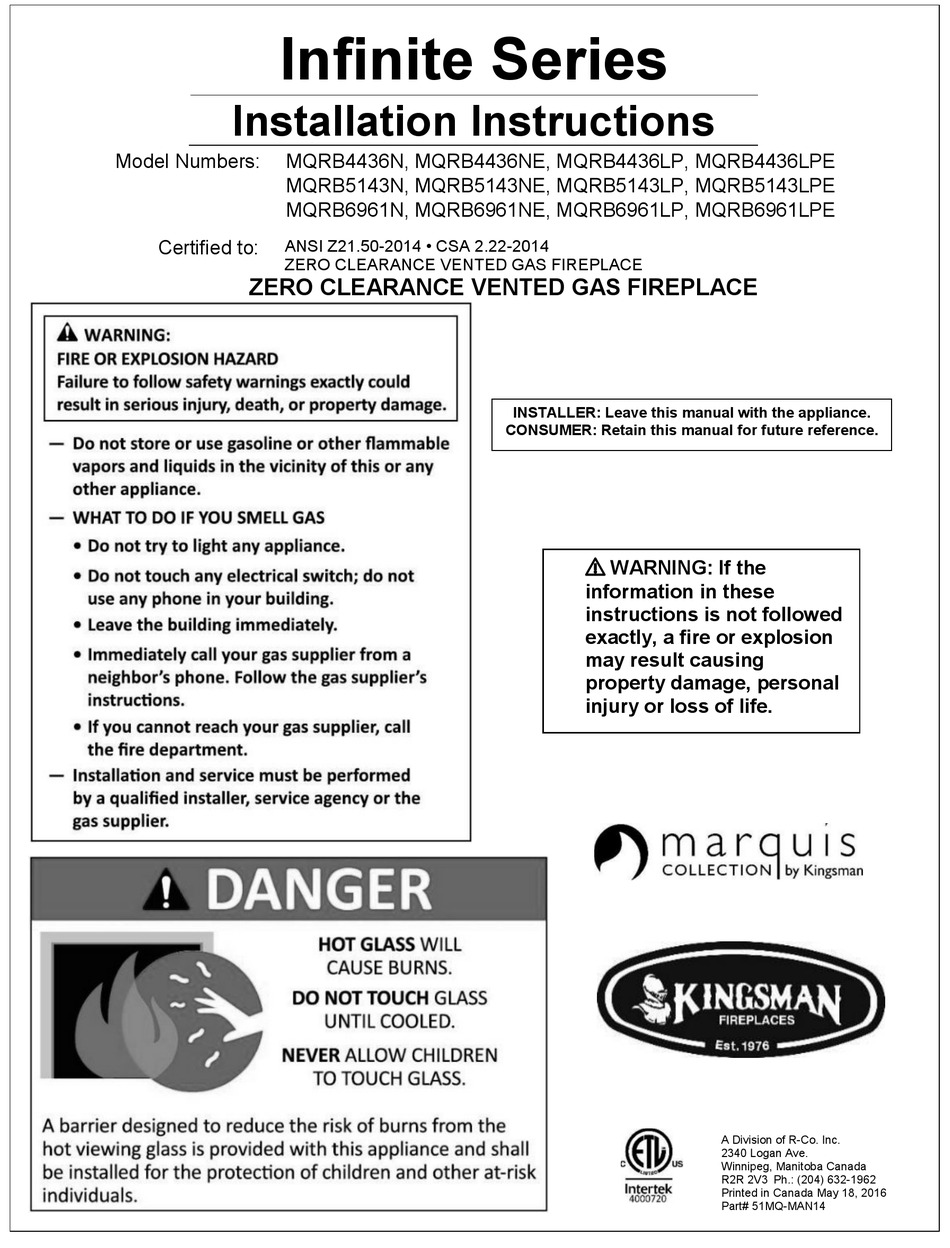

Infinite Series

Installation Instructions

Model Numbers:
MQRB4436N, MQRB4436NE, MQRB4436LP, MQRB4436LPE
MQRB5143N, MQRB5143NE, MQRB5143LP, MQRB5143LPE
MQRB6961N, MQRB6961NE, MQRB6961LP, MQRB6961LPE
Certified to:
ZERO CLEARANCE VENTED GAS FIREPLACE
ANSI Z21.50-2014 • CSA 2.22-2014
ZERO CLEARANCE VENTED GAS FIREPLACE
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: If the
information in these
instructions is not followed
exactly, a fire or explosion
may result causing
property damage, personal
injury or loss of life.
⚠
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: (204) 632-1962
Printed in Canada May 18, 2016
Part# 51MQ-MAN14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MQRB4436N and is the answer not in the manual?

Questions and answers

Related Manuals for Marquis MQRB4436N

Summary of Contents for Marquis MQRB4436N

  • Page 1: Installation Instructions

    Infinite Series Installation Instructions Model Numbers: MQRB4436N, MQRB4436NE, MQRB4436LP, MQRB4436LPE MQRB5143N, MQRB5143NE, MQRB5143LP, MQRB5143LPE MQRB6961N, MQRB6961NE, MQRB6961LP, MQRB6961LPE Certified to: ZERO CLEARANCE VENTED GAS FIREPLACE ANSI Z21.50-2014 • CSA 2.22-2014 ZERO CLEARANCE VENTED GAS FIREPLACE INSTALLER: Leave this manual with the appliance.
  • Page 2 Table of Contents..................................Child Safety Screen -MQRB4436 & MQRB5143…………………………………………………………………………………….. Child Safety Screen – MQRB6961…………………………………………………………………………………………………….. Recommendations for Finishing of Clean View Linear Products..................... Pre-installation Questions and Answers..........................Operating Instructions................................Warnings, Installations and Operations........................... Installation Requirements for the Commonwealth of Massachusetts..................Nailing Tab Guide ..............................

  • Page 3: Table Of Contents

    Gas Line Installation / Gas Specifications…..........................Millivolt System, Lighting, and Burner Control…........................Troubleshooting the Millivolt Gas Control System…........................ Burner System Maintenance…..............................Gas Conversion for Top Convertible Pilot…..........................820 Nova mV Modulating Conversion Kit…..........................MQRB4436 Burner Section: Gas Conversion…........................MQRB5143 Burner Section: Gas Conversion…........................MQRB4436 / MQRB5143 Burner Tube Removal / Burner System Removal/Installation Guide…...........
  • Page 4 WARNING: Fasten Screen Mount Brackets to Child Safety Screen with supplied screws. Notch in Mount Bracket Insert top of Screen into fireplace opening and push bottom in. To remove Safety Screen, Push up Screen Frame and pull bottom away from fireplace.
  • Page 5 Bottom Angle WARNING: on Bottom of Screen. Fasten Screen Mount Brackets to Child Safety Screen with supplied screws. Notch in Mount Bracket Insert top of Screen into fireplace opening and push bottom in. Bottom Angle on Bottom of Screen. To remove Safety Screen, Push up Screen Frame and pull bottom away from fireplace.
  • Page 6 When finishing the wall around the fireplace, it is critical that the wall covering be fastened properly. It is acceptable to pre-drill holes and use self-tapping screws which may be used to fasten a backer for tile, marble, etc. Screws being installed through non-combustible board should be self-tapping type with a maximum length of 2 inches.
  • Page 7 Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the paint fully hard and durable.
  • Page 8 This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code;...
  • Page 9 Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they provide a primary heat source. This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home.
  • Page 10 [Qty] 2 Nailing Tabs are located on each corner of the fireplace. -Fireplace to be covered –Fireplace and with Non-Combustibles (e.g. Concrete Board) for Combustible Wall to be covered with Non-Combustible appearance. Materials (e.g. Tile around Fireplace). If using Optional Surround, Maximum Thickness for If using Optional Surround, Maximum Thickness for Non- Non-Combustible Material is 3/4”.

  • Page 11: Vertical Venting In Cold Climates

    MQRB4436: Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance.
  • Page 12 All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System Horizontal Run With Min. Vertical Run...
  • Page 13 Enclosure must be 53-1/2” inside width. Insert airbox on side of unit first and swing into place. Airbox If unit is in place before enclosure is built, minimum clearances for opening can be followed. 1” Minimum Air Space...

  • Page 14: Nailing Tab Guide

    Kit is required for a See Thru Installation. - Determine for both sides whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”.
  • Page 15 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 16 Kit is required for a Single Sided Installation. - Determine whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using optional surround, maximum thickness for non-combustible material is 3/4”.
  • Page 17 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 18 When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. [Steel Stud Framing Shown] 7-3/4”...
  • Page 19 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials.
  • Page 20 These specifications are the same for all Models (4436N, 4436NE, 4436LP, 4436LPE). [Steel Stud Framing Shown.] Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.
  • Page 21 Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible. mantel meets the dimensional requirements for a Combustible Mantel.

  • Page 22: Mqrb5143 Combustible Enclosure Heights

    This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. Failure to comply with those requirements can seriously compromise the safety and operation of the fireplace.
  • Page 23 All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System All units can be vented vertically Horizontal Run with Min. Vertical Run Left Burner System Right Burner System...
  • Page 24 Enclosure must be 60-1/2” inside width. Insert airbox on side of unit first and swing into place. Airbox If unit is in place before enclosure is built, minimum clearances for opening can be followed. 1” Minimum Air Space...
  • Page 25 Kit is required for a See Thru Installation. - Determine for both sides whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”.
  • Page 26 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 27 Kit is required for a Single Sided Installation. - Determine whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using optional surround, maximum thickness for non-combustible material is 3/4”.
  • Page 28 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 29 When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. [Steel Stud Framing Shown] 21-5/8”...
  • Page 30 The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the opening with non-combustible materials.
  • Page 31 These specifications are the same for all Models (5143N, 5143NE, 5143LP, 5143LPE). [Steel Stud Framing Shown.] Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.
  • Page 32 Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible. mantel meets the dimensional requirements for a Combustible Mantel.

  • Page 33: Mqrb6961 Combustible Enclosure Heights

    This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. Failure to comply with those requirements can seriously compromise the safety and operation of the fireplace.
  • Page 34 All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit.
  • Page 35 Enclosure must be 78-1/2” inside width. Insert airbox on side of unit first and swing into place. Airbox If unit is in place before enclosure is built, minimum clearances for opening can be followed. 1” Minimum Air Space...
  • Page 36 Kit is required for a See Thru Installation. - Determine whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using optional surround, maximum thickness for non-combustible material is 3/4”.
  • Page 37 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 38 Kit is required for a Single Sided Installation. - Determine whether the will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the will be flush with the face of the fireplace (Flat Wall appearance). If using optional surround, maximum thickness for non-combustible material is 3/4”.
  • Page 39 Flush With Face of Fireplace Flush With Face of Fireplace [Steel Stud Framing Shown.] If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1” Clearance from Airbox. 1”...
  • Page 40 When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. [Steel Stud Framing Shown.] 26-5/8”...
  • Page 41 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials.
  • Page 42 These specifications are the same for all Models (6961N, 6961NE, 6961LP, 6961LPE). [Steel Stud Framing Shown.] Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.
  • Page 43 Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible. mantel meets the dimensional requirements for a Combustible Mantel.
  • Page 44 *This Kit must be opened before unit is installed into Framing (See “ ” pages of this Manual). : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Firebox Cover Heat Shield Assembly Back Liner...
  • Page 45 Remove Liner Clips from the inside of the Firebox Place the Back Liner onto the firebox bottom with bends facing the rear firebox cover. Lift into place and set down on firebox ledge (See Next install the False Bottom with larger Dimension to Front Glass Opening ( ), and...
  • Page 46 This basic Kit is required for See Thru installations. Note: To cover the Side Fillers with non-combustible materials, they must be installed before Facing materials are applied. : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 47 Single Sided: -[1ea.] Porcelain False Bottom -[1ea.] Porcelain Back Liner Panel (uses 5143PLE), -[2ea.] Porcelain End Panels : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Back Liner, End Panel, and False Bottom Installation: 1.
  • Page 48 See Thru: -[1ea.] Porcelain False Bottom (Uses 5143PLE), -[2ea.] Porcelain End Panels False Bottom & End Panel Installation: Insert False Bottom into Fireplace. Fasten the False Bottom to the Burner Assembly with [6] DT Screws provided. Insert Pilot Shield into False Bottom.
  • Page 49 The Side Fillers are located at each side of the door. They are provided to give a continuous surface up to the opening of the fireplace door. Non-Combustible facing materials, such as brick or tile may be used in place of the Side Fillers- so long as amount of material applied is not...
  • Page 50 Surround Kits are available in 3 different finishes: [1-1/2”] [1-1/2”] [1-1/2”] MQRB4419SBL MQRB4424SBL MQRB5019SBL MQRB5624SBL MQRB6919SBL MQRB6924SBL MQRB4419SSS MQRB4424SSS MQRB5019SSS MQRB5624SSS MQRB6919SSS MQRB6924SSS MQRB4419SPW MQRB4424SPW MQRB5019SPW MQRB5624SPW MQRB6919SPW MQRB6924SPW (Qty-1) Surround Frame [4”] [4”] [4”] (Qty-2) Surround Side Fillers (Qty-1) Surround Access Cover (Qty-8) #6 Self Tapping Screws Original Side Fillers &...
  • Page 51 Fan Installation MQRB4436 / MQRB5143 / MQRB6961 FAN KIT IS FOR USE IN BK (SINGLE SIDED) INSTALLATIONS ONLY Fan Kit should be installed before the fireplace is placed into wall cavity. To remove fan for service, the burner pan must be removed and work done through the opening (See Burner System Removal section).

  • Page 52: Fan Speed Control Outside Of Fireplace

    Fan Speed Control Outside of Fireplace WARNING WARNING WARNING If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below.
  • Page 53 For best flame pattern it is essential to spread Crushed Glass or MQEMBER directly onto burner tube. Ensure the glass embers do not excessively overlap as this will affect the flame pattern. MQG5W Decorative Ember Glass - White - 5 lbs MQG5A Decorative Ember Glass –...
  • Page 54 MQRB4436, MQRB5143, MQRB6961 MQRBD1 Drift Wood (x4) and Rocks (x4) MQRB5143, MQRB6961 MQRBD2 Large 3pc Driftwood Set MQRB4436, MQRB5143, MQRB6961 MQRock2 30pc Rock Set- Contemporary Collection- Natural MQRB4436, MQRB5143, MQRB6961 MQRock3 30pc Rock Set- Contemporary Collection- Multi-Colored MQRB4436, MQRB5143, MQRB6961 MQ Stone Decorative Stones MQRB4436, MQRB5143, MQRB6961...
  • Page 55 · · Place on left side of fireplace against the back wall of the firebox. · Place on the right side of fireplace against the back wall of the firebox and onto Log 1 as shown. · Place in front of the burner in the center of fireplace as shown. ·...
  • Page 56 ! NOTE Can be used with MQ Glass, MQ Rock, MQ Stone or MQ Ember. Follow instructions for these accessories. Place logs along front and back side of burner tube as shown. LOG 4 LOG 5 LOG 3 · · LOG 1 LOG 2 ·...

  • Page 57: Door Latch Tool

    It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. It is therefore recommended that initially the glass be cleaned two or three Cautions and Warnings times with a commercial fireplace glass cleaner.
  • Page 58 A Door Latch Tool is provided to assist with removing and installing the glass doors on the Infinite Series. While it is not necessary to use Wait until unit is Completely cool this tool, it may prove helpful. before touching glass or attempting to remove door.
  • Page 59 Remove Valve Access Cover in order to access igniter and valve controls. To remove Valve Access Cover, simply insert fingers into holes in Access Panel and lift out. When replacing Access Panel, engage Tabs into Slots in Bracket. The Lower Face Panel on the valve side of the unit is shipped attached with only 3 screws for easy removal. This allows all necessary gas line and electrical connections to be made easily.
  • Page 60 This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN/CSA - B149.1 or .2 installation codes for Gas Burning appliances and equipment in Canada and the National Fuel Gas Code ANSI Z223 in the U.S.A. The gas pipeline can be brought in through either the left side or the bottom of the appliance.
  • Page 61 If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by hand. When Immediately call your gas supplier from a neighbour’s phone. Follow the lighting the pilot, follow these instructions exactly.
  • Page 63 It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance.
  • Page 64 Instructions for converting SIT 190 series pilot burner injector from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. 1. Shut-off the gas supply to the appliance. 2. Allow the pilot burner to cool to room temperature. 3.
  • Page 65 Gas Conversion for Modulator – PART C...
  • Page 66 Models: MQRB4436N, MQRB4436LP, MQRB4436NE, MQRB4436LPE. Brass (1000-255) 4436MQ-CKLP LP Conversion 1001-P167SI 1000-253closed Full 1001-P202SI -Millivolt- (977.167) Open (0.907.202) 4436MQ-CKNG NG Conversion 1001-P165SI 1000-253closed 3/32” 1001-P201SI -Millivolt- (977.165) (0.907.201) 4436MQ-CKLPI LP Conversion 1001-P168SI 1000-253closed Full 1002-P014SI -IPI- (977.168) Open (0.907.014) 4436MQ-CKNGI...
  • Page 67 Models: MQRB5143N, MQRB5143LP, MQRB5143NE, MQRB5143LPE. Brass (1000-255) 5143MQ-CKLP LP Conversion 1001-P167SI 1000-253closed 3/8” 1001-P202SI -Millivolt- (977.167) (0.907.202) 5143MQ-CKNG NG Conversion 1001-P165SI 1000-253closed 1/32” 1001-P201SI (977.165) -Millivolt- (0.907.201) 5143MQ-CKLPI LP Conversion 1001-P168SI 1000-253closed 3/8” 1002-P014SI -IPI- (977.168) (0.907.014) 5143MQ-CKNGI NG Conversion 1001-P166SI 1000-253closed 1/32”...
  • Page 68 Remove the six [6] DT screws from the lower portion of the Burner Tube Mount Brackets. Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifice. Reverse these steps to reinstall. Turn off Unit and allow to cool before cleaning. Only a Qualified service technician should service and repair this appliance.
  • Page 69 : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. The Valve Assembly may be changed to the other side of the fireplace. This must be done the unit is inside the enclosure.
  • Page 70 Models: MQRB6961N, MQRB6961LP, MQRB6961NE, MQRB6961LPE. Brass (1000-255) 6961MQ-CKLP LP Conversion 1001-P167SI #49 x 2 1000-253closed Full Open 1001-P202SI -Millivolt- (977.167) (0.907.202) 6961MQ-CKNG NG Conversion 1001-P165SI #34 x 2 1000-253closed 1/16” 1001-P201SI (977.165) -Millivolt- (0.907.201) 6961MQ-CKLPI LP Conversion 1001-P168SI #49 x 2 1000-253closed Full Open 1002-P014SI...
  • Page 71 Air Shutter Remove the six [8] DT screws from the lower portion of the Burner Tube Mount Brackets. Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifices. Reverse these steps to reinstall. If flames appear higher or lower at one end of the unit, the primary air can be adjusted on one of the two mixing sleeves to even the flame.

  • Page 72: Remote Receiver Location

    Remote Receiver Location For GT Series Remotes Only The Remote Receiver may be located inside of the unit- several inches to the left of the valve and near the front of the appliance. The Remote Receiver MUST be covered by the DCHS (Remote Control Heat Shield- see Parts List in manual).
  • Page 73 The 51-UHS is designed for millivolt and IPI Infinite units for in-unit installation of the Remote Receiver, Fan Control Module, and the IPI Module. Remote Receiver IPI Module Fan Control Module BATTERIES Batteries for Remote Receiver can be changed by lifting 51-UHS 51-UHS can be inserted &...

  • Page 74: Ipi Electronic Ignition System

    IPI Electronic Ignition System Overview Cover The IPI system is an advanced burner controller that provides you with the option of having either a Standing- Pilot, or an intermittent igniting system. This alternating Backup mode is controlled by the CPI/IPI Switch (Continuous Pilot Battery Ignition/Intermittent Pilot Ignition) located on the IPI System Pack...

  • Page 75: Remote Receiver

    -Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room Thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room thermostat.

  • Page 76: Ipi Electronic Ignition Parts List – Standard System

    IPI Electronic Ignition Parts List – Standard System ITEM NO. PART NO. DESCRIPTION 1006-P002si Valve IPI Hi/Lo NG 1006-P003si Valve IPI Hi/Lo LP *1002-P047si Pilot Assembly-LP -24” Wire *1002-P033si Pilot Assembly-NG -24” Wire 1002-P017si Spark Electrode (with wire) *1002-P119si Spark Electrode (with wire- 35” Length) 1002-P903si Electrode Flame Sensor *1002-P910si...
  • Page 77 Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities.
  • Page 79 Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries.

  • Page 81: Lighting Instructions

    FOR YOUR SAFETY READ BEFORE LIGHTING: This fireplace is equipped with an ignition device which automatically lights the pilot. Do not try to light by hand. Before operating smell all around the fireplace area for gas and next to the floor because some gas is heavier than air and will settle on the floor.
  • Page 82 Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the other will remain operational.
  • Page 83 Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the rest will remain operational.

  • Page 84: Venting

    Venting WARNING: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Notes: 1) Clearances are to the edge of the terminal plate. Add 6-3/4” for MQRB4436 & MQRB5143, and 8-1/8” for MQRB6961 to arrive at centerline. 2)Local codes or regulations may require different clearances.
  • Page 85 This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex (Z- Flex) venting kits and components specifically approved and LABELED for this stove may be used. Model is approved for use with DuraVent- DirectVent Pro Direct Vent system (Model DV-GS Series), and AmeriVent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp.
  • Page 86 Seal with High Temperature Mill Pac Sealant 13-3/4” 11” 11” 7-5/8” 10-5/8” 13-3/4” Figure 1 - Flex pipe spring spacing guide. Horizontal runs require support metal straps every 2ft. In an offset installation support straps should be used to stabilize pipe. Expand inner and outer flex pipe to the point that the outer flex pipe protrudes approximately 2 to 3 inches past outer wall and the inner flex protrudes approximately 2 to 3 inches past the outer flex pipe.

  • Page 87: Horizontal Vent Table

    Minimum clearance to combustibles on venting is 1” with the following exceptions: MQRB4436 MQRB5143 MQRB6961 Top of horizontal 2” 2” 2” Top of 90 degree elbow in an enclosure under 72” 5” with Z57WTS 5” with Z57WTS Top of 90 degree elbow in an enclosure over 72” 4”...

  • Page 88: Wall Thimble And Roof Support

    All horizontal runs have a minimum ¼” rise per foot. 52-1/4" The Wall Thimble is used in horizontal installations to shield the combustible material from the vent pipe. The appropriate size of thimble is required for each model. Please contact your local dealer for more information. Refer to Side Wall Venting for wall cutout information.
  • Page 89 Wall Thimble Shield must be used in Enclosures under 72” for MQRB4436 / MQRB5143, and under 78” for MQRB6961. 52-1/4”Min Vertical rise over 3ft horizontal run (MQRB5143 shown). Note that the minimum height from the bottom of fireplace to the centre of vent is 37-1/2" [95 cm] for the , 51-1/2"...
  • Page 90 Two snorkel terminations are available for MQRB4436 / MQRB5143 If a vertical rise is necessary on the exterior side of a building: Z57ST24 (24” Tall, 14-1/2” Center to Center) Z57ST36 (36” Tall, 26-1/2” Center to Center) Follow standard horizontal venting installation procedures. If the Snorkel Termination is to be located below grade, a window well is recommended with adequate and proper drainage as per local codes.
  • Page 91 An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney. When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"...
  • Page 92 2” Top of Horizontal Vent -Restrictor- Remove for Runs Under 15 Feet Clearances in horizontal venting. 43ft Straight-through roof support configuration; b) Flex bend configuration; c) Termination mounting...
  • Page 93 is located in the top of the Firebox in front of the Flue Opening. For vertically vented installations it is necessary to use the Flue Restrictor. Restrictor is set fully open from factory for short horizontal and vertical runs. To adjust the Flue Restrictor: Remove the [2] DT screws in the Flue Restrictor.
  • Page 94 MDV31, MDV39, MQRB3632, ZDV3622, MQZDV3622, ZDVRB3622, HBZDV3624, HBZDV3628, HBZDV3632, MQHBZDV3636, HBZDV4224, HBZDV4228, HBZDV4232, MQHBZDV4236, HBZDV4740, MQHBZDV4736, MQRB4436, MQRB5143, MQRB6961, ZRB46, ZCV39, ZCV42, MCVP42, MCVST42, MQZDV3927*, MQZDV4634* The PVH58 Horizontal Power Vent Termination is intended for use where standard venting configurations are not possible. MODELS EQUIPPPED WITH MILLIVOLT/ STANDING PILOT IGNITION: Downward vertical vent runs are permitted.
  • Page 95 Listed for Canada and USA Z57DFA Hard Pipe Adapter (Adapts MQRB4436 & MQRB5143 to accept Hard Pipe at Fireplace) Z57PVA* Pipe Reducer 8”Sm – 7”Sm, ZDV5FC (Adapts PVH58 to accept 5/7” Flex Pipe) * One 12” section of hard pipe must be connected directly to the Power Vent before any adapters are connected. Order the appropriate lengths of venting (see below).
  • Page 96 58PVH-P3211 3/4” K.O. Bushing 58PVH-WTA Wall Thimble Assembly PVH20H Main Wiring Harness Assembly – Extension Harness (20ft) 58PVH-P124 Double Pole Switch 58PVH-P421 Timer Switch 58PVH-P421 Timer Switch 58PVH-P156 Relay 58PVH-P487 Relay Socket...
  • Page 97 MQRB4436 Parts List Marquis Infinite Zero Clearance Direct Vent Gas Fireplace -44” Wide MQROCK3 Rock Set - Contemporary Collection - Multi-Colored Listed for USA/Canada as a Decorative Appliance: Linear LH MQG5W Decorative Ember Glass - White - 5 lbs Burner, Two Sides Open, SIT Valve with Hi/Lo Flame and BTU MQG5A Decorative Ember Glass –...
  • Page 98 ZDVSSLR Siding Shield - Large Return - for FDVHSQ or FDVHT ZDV48GP Galvanized Pipe 7" Dia. x 48" (Vertical Installations) ZDVAAF Flashing 7" c/w Storm Collar (1/12 to7/12) ZDVAF2 Flashing 7" c/w Storm Collar (8/12 to 12/12) ZDVAF3 Flashing 7" c/w Storm Collar Flat ZDV7SC Storm Collar 7 "...
  • Page 99 MQRB5143 Parts List Marquis Infinite Zero Clearance Direct Vent Gas MQROCK3 Rock Set - Contemporary Collection - Multi- Fireplace -51” Wide Colored Listed for USA/Canada as a Decorative Appliance: Linear LH MQG5W Decorative Ember Glass - White - 5 lbs...
  • Page 100 ZDVSSLR Siding Shield - Large Return - for FDVHSQ or FDVHT ZDV48GP Galvanized Pipe 7" Dia. x 48" (Vertical Installations) ZDVAAF Flashing 7" c/w Storm Collar (1/12 to7/12) ZDVAF2 Flashing 7" c/w Storm Collar (8/12 to 12/12) ZDVAF3 Flashing 7" c/w Storm Collar Flat ZDV7SC Storm Collar 7 "...
  • Page 101 MQRB6961 Parts List Marquis Infinite Zero Clearance Direct Vent Gas MQRBD2 Drift Wood and Rocks Fireplace -69” Wide MQRBD3 Drift Wood Log Set (5pcs) Listed for USA/Canada as a Decorative Appliance: Linear LH MQROCK2 Rock Set - Contemporary Collection - Natural...
  • Page 102 Installation) Z710FS Firestop Spacer for 10” Pipe Z710RS Roof Support for 10” Pipe Z710FK5 Flex Kit [7/10”x5’ Expanded: Springs, Screws, Millpac] Z710FK8 Flex Kit [7/10”x8’ Expanded: Springs, Screws, Millpac] Z710FK20 Flex Kit [7/10”x20’ Exp.: Springs, Screws, Millpac] ZDV7FC Flex Connector 7” Diameter ZDV10FC Flex Connector 10”...
  • Page 103 Accessories 1001-P167SI Orifice Pilot LP977.167TC SIT 1001-P633SI Valve Nova LP Hi/Lo 0820651 Z1MT Thermostat (Not permitted for vented gas fireplaces installed in the U.S.A.) Millivolt 1001-P634SI Valve Nova NG Hi/Lo 0820652 Wall Mount 1001-P713SI Pilot Burner LP 199.713TC SIT 3927ZDV- Bulb 10W 12V 64418 or [Sylvania 58691] P779-1 Lightbulbs NOT covered under Warranty.)
  • Page 104 1002-P012si Stepper Motor (LP) 1002-P016si Hi/Lo Regulator (NG) 1002-P014si Hi/Lo Regulator (LP) Miscellaneous Parts 1000-150GE Silicone GE Red IS806 #736 1000-150MP Hi Temp Millpac Sealant 840099 1000-214 Piezo Igniter 1244-17 MARK 21 1000-215 Pal Nut (18MMXI.5MM) BLK (1364.03) 1000-218 Switch Ivory (1451/001) 1000-227 Cover Ivory (86001/001) 1000-255...
  • Page 105 -Glass Safety- All Units IT IS THE RESPONSIBILITY OF THE HOME OWNER TO ENSURE THAT NO ONE TOUCHES A HOT APPLIANCE. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s WARNING: barrier for this appliance. Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.

  • Page 106: Limited Lifetime Warranty

    This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
