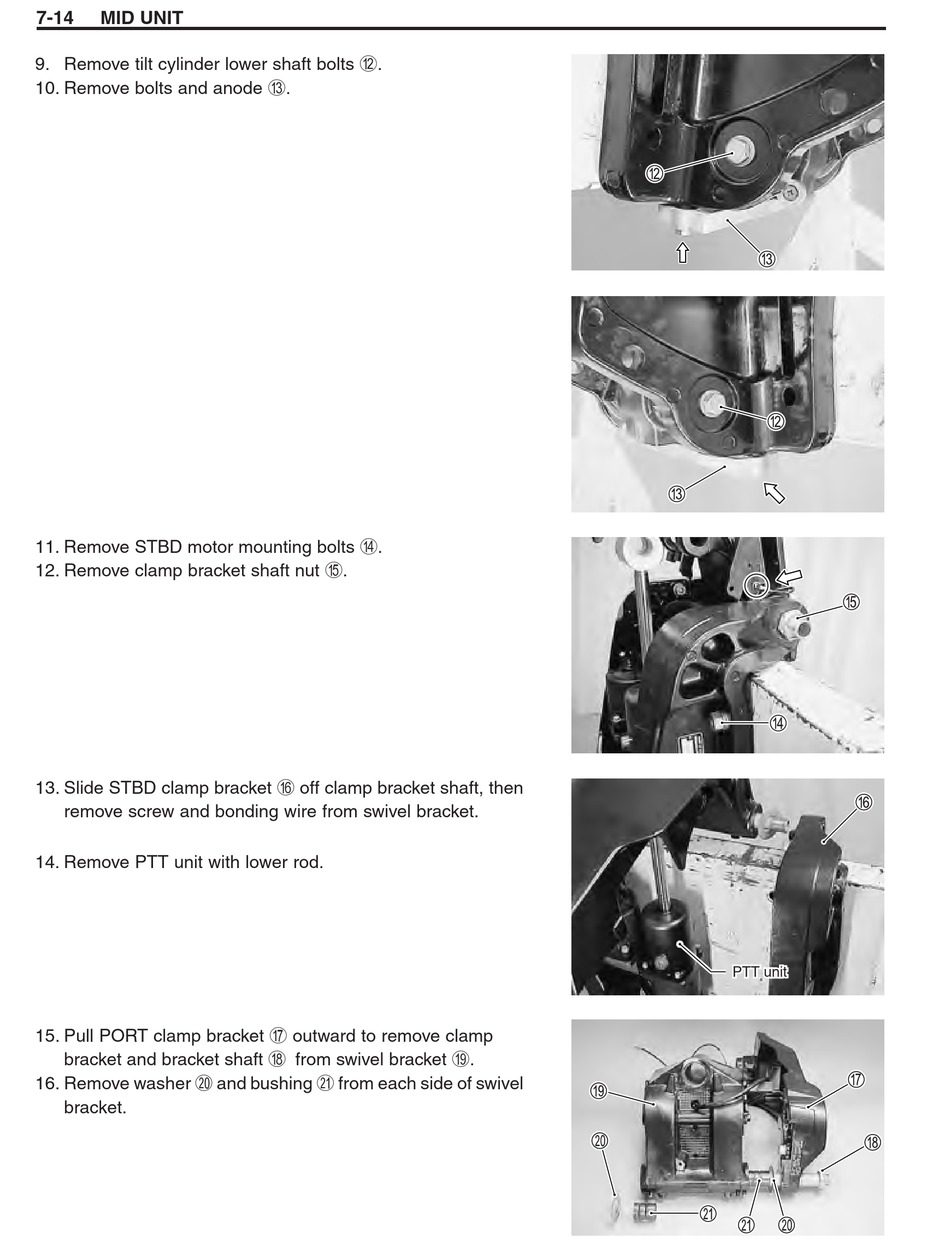

7-14 MID UNIT
9. Remove tilt cylinder lower shaft bolts B.
10. Remove bolts and anode C.
11. Remove STBD motor mounting bolts D.
12. Remove clamp bracket shaft nut E.
13. Slide STBD clamp bracket F off clamp bracket shaft, then
remove screw and bonding wire from swivel bracket.
14. Remove PTT unit with lower rod.
15. Pull PORT clamp bracket G outward to remove clamp
bracket and bracket shaft H from swivel bracket I.
16. Remove washer J and bushing K from each side of swivel
bracket.
PTT unit PTT unit PTT unit
