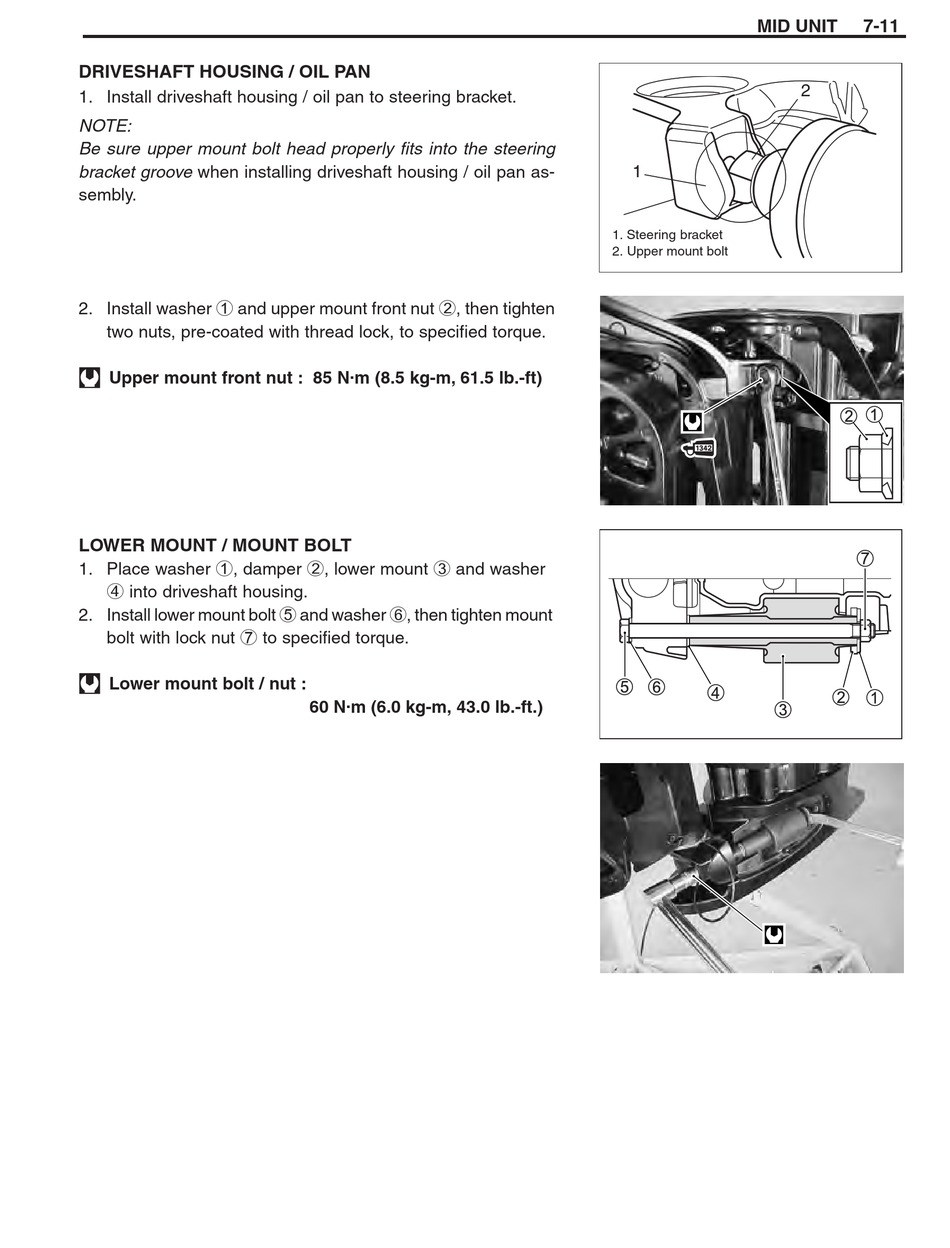

Suzuki DF 90 Service Manual page 221

DRIVESHAFT HOUSING / OIL PAN
1. Install driveshaft housing / oil pan to steering bracket.
NOTE:
Be sure upper mount bolt head properly fits into the steering
bracket groove when installing driveshaft housing / oil pan as-
sembly.
2. Install washer 1 and upper mount front nut 2, then tighten
two nuts, pre-coated with thread lock, to specified torque.
Upper mount front nut : 85 N . m (8.5 kg-m, 61.5 lb.-ft)
LOWER MOUNT / MOUNT BOLT
1. Place washer 1, damper 2, lower mount 3 and washer
4 into driveshaft housing.
2. Install lower mount bolt 5 and washer 6, then tighten mount
bolt with lock nut 7 to specified torque.
Lower mount bolt / nut :
60 N . m (6.0 kg-m, 43.0 lb.-ft.)
MID UNIT
1
1. Steering bracket
2. Upper mount bolt
7-11
2
