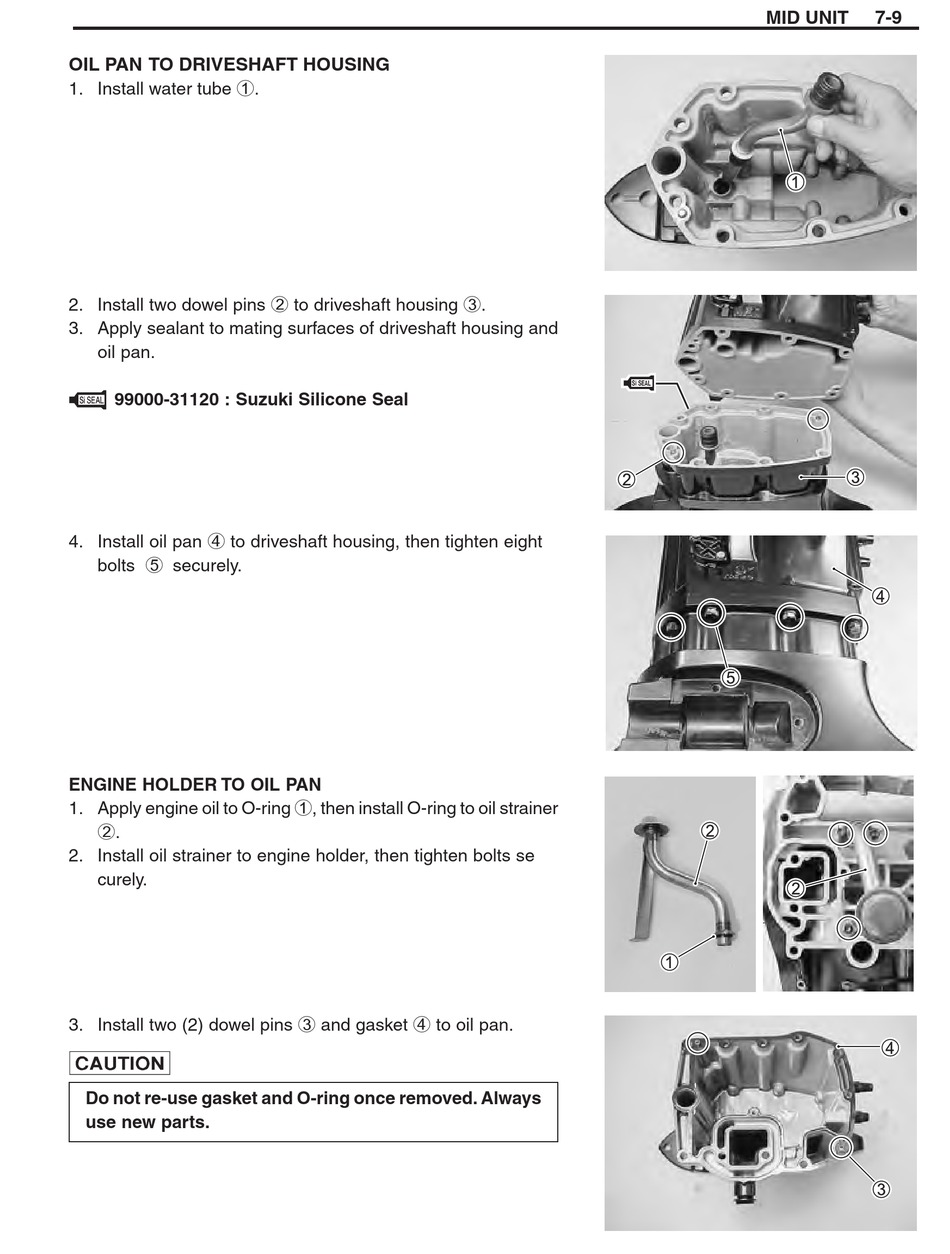

Suzuki DF 90 Service Manual page 219

OIL PAN TO DRIVESHAFT HOUSING
1. Install water tube 1.
2. Install two dowel pins 2 to driveshaft housing 3.
3. Apply sealant to mating surfaces of driveshaft housing and
oil pan.
99000-31120 : Suzuki Silicone Seal
4. Install oil pan 4 to driveshaft housing, then tighten eight
bolts 5 securely.
ENGINE HOLDER TO OIL PAN
1. Apply engine oil to O-ring 1, then install O-ring to oil strainer
2.
2. Install oil strainer to engine holder, then tighten bolts se
curely.
3. Install two (2) dowel pins 3 and gasket 4 to oil pan.
Do not re-use gasket and O-ring once removed. Always
use new parts.
MID UNIT 7-9
