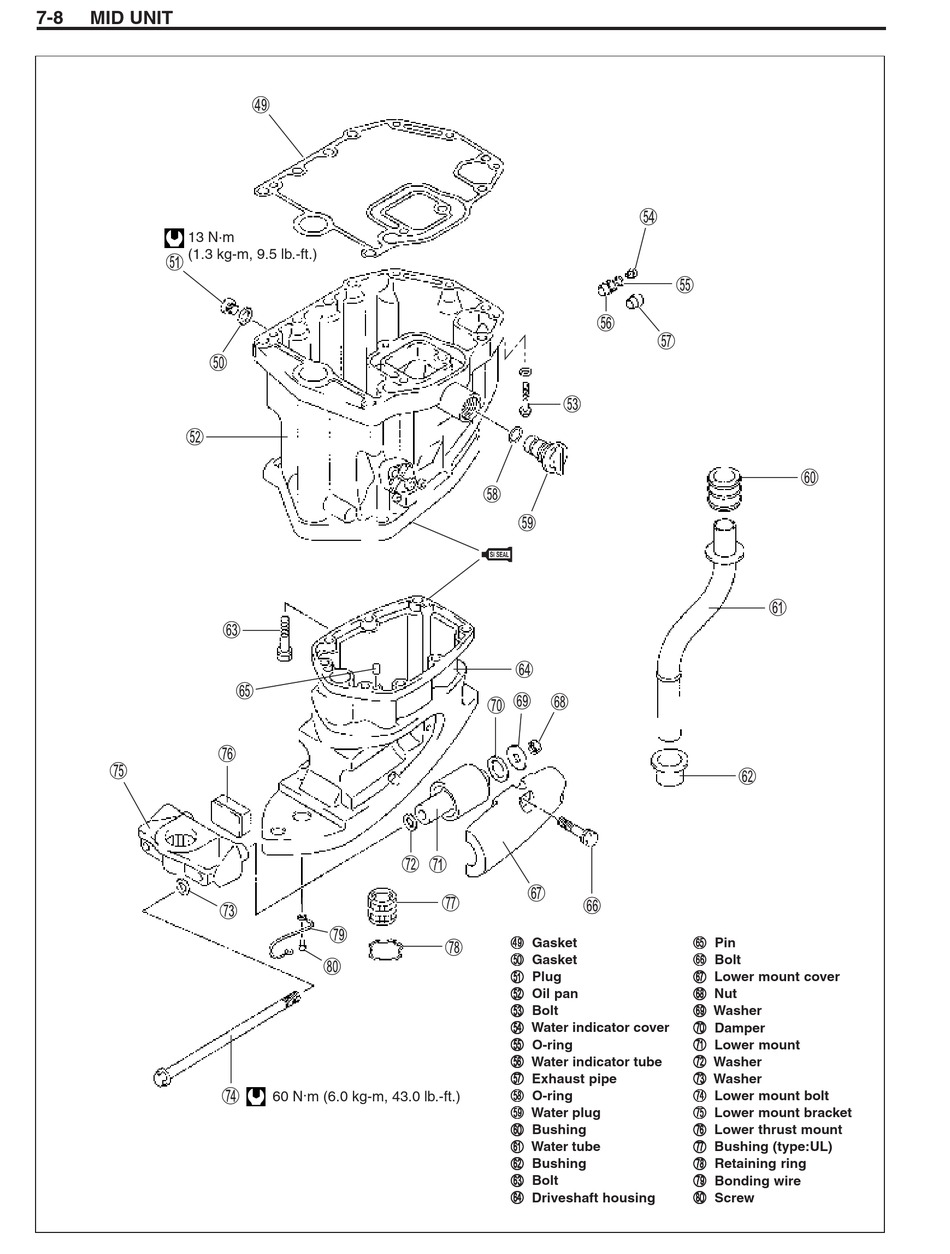

7-8 MID UNIT
13 N . m
(1.3 kg-m, 9.5 lb.-ft.)
60 N . m (6.0 kg-m, 43.0 lb.-ft.)
i i i i i Gasket
j j j j j Gasket
k k k k k Plug
l l l l l Oil pan
m m m m m Bolt
n n n n n Water indicator cover
o o o o o O-ring
p p p p p Water indicator tube
q q q q q Exhaust pipe
r r r r r O-ring
s s s s s Water plug
t t t t t Bushing
u u u u u Water tube
v v v v v Bushing
w w w w w Bolt
x x x x x Driveshaft housing
y y y y y Pin
z z z z z Bolt
{ { { { { Lower mount cover
| | | | | Nut
} } } } } Washer
~ ~ ~ ~ ~ Damper
; ; ; ; ; Lower mount
: : : : : Washer
, , , , , Washer
. . . . . Lower mount bolt
/ / / / / Lower mount bracket
+ + + + + Lower thrust mount
* * * * * Bushing (type:UL)
< < < < < Retaining ring
> > > > > Bonding wire
? ? ? ? ? Screw
