MINI MXS-R EP
Rudder fiberglass
control horn.

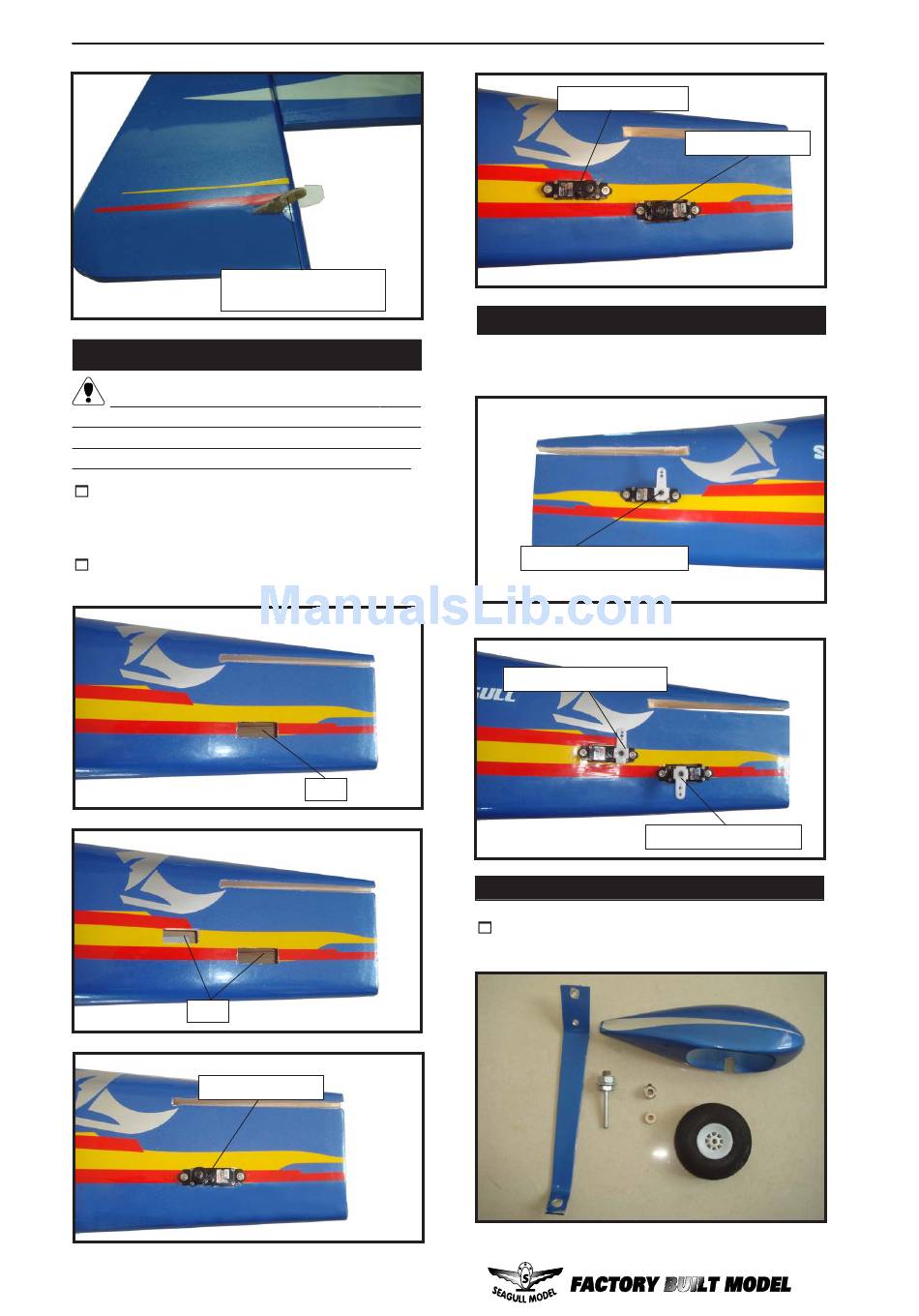

INSTALLING THE FUSELAGE SERVOS.

Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Cut.
Rudder servo.
6
FUSELAGE SERVO ARM INSTALLATION.
arm as same as picture below:
Cut.
pants as shown below pictures.
Instruction Manual.
Elevator servo.
Install adjustable servo connector in the servo
Elevator servo arm.
Elevator servo arm.
Rudder servo arm.
WHEEL AND WHEEL PANTS.
1) Assembling and mounting the wheel
Rudder servo.
