Pull out each terminal before connecting the wires. Be careful
not to drop screen cuts inside the cabinet. Connect the wires to
the terminal. Crimp the supplied Faston terminal to the screen
and connect to the grounding plug-in terminal. Secure the cable
by using the supplied cable ties (See Figure 2-11).
Distribution Unit Terminals
Steering gear with directional valves
(ON/OFF)
Three versions of JD5X are available for connection to steering
gears with two sets of directional valve solenoids.
- JD50 is used for steering gears with 19-40V DC solenoid
supply
- JD51 is used for steering gears with 110V DC solenoid
supply
- JD52 is used for steering gears with 110/220V AC
solenoid supply
Each of the solenoid switching versions includes two identical
Solid State Boards. The Solid State Boards for the different
versions are made from the same board but components related
to the solid state "relays" are different. However, the connection
is identical and the solenoid steering gear should be connected
to the Solid State Board according to the following diagram. Use
screened cable of 0.5 mm

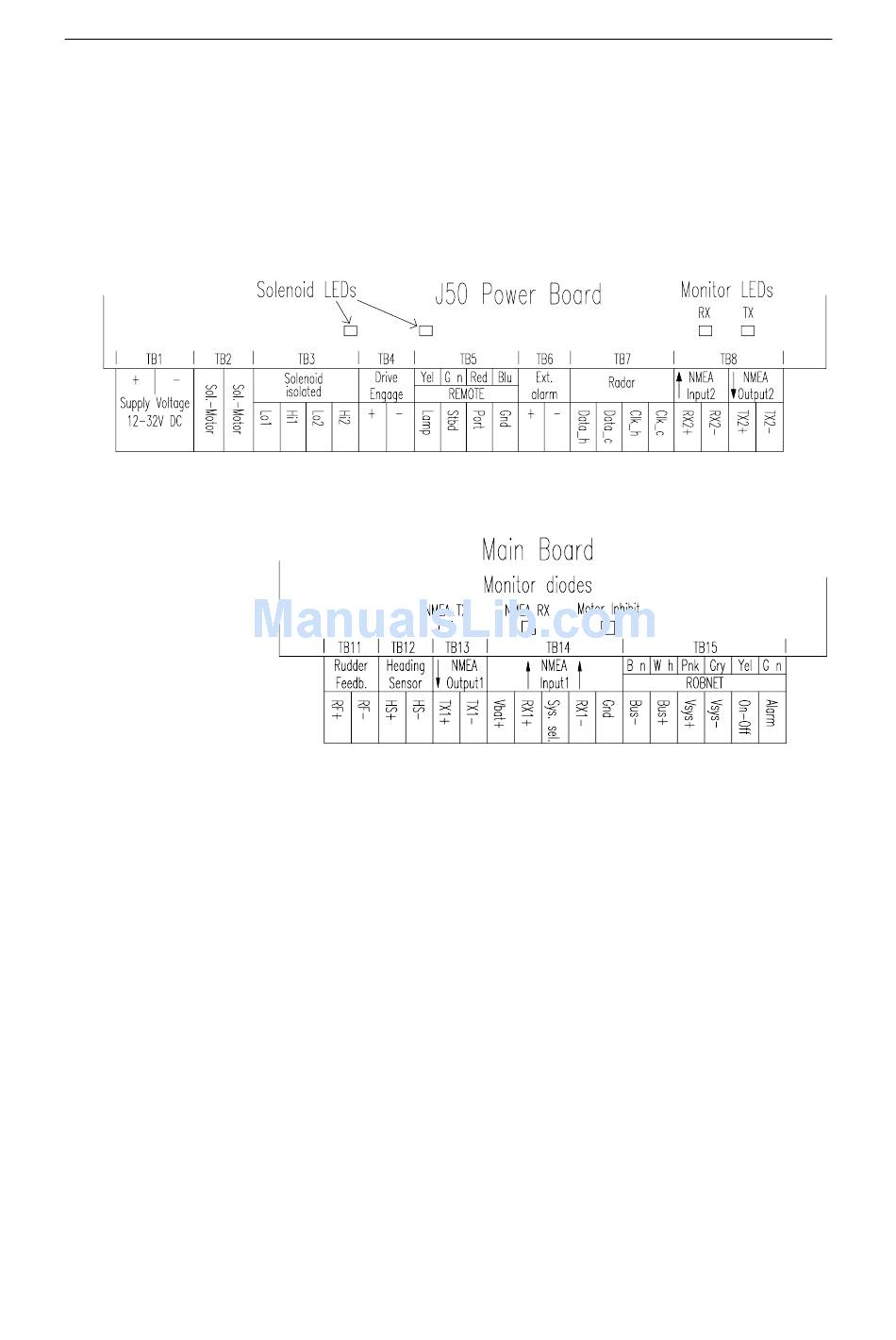

Power Board Terminals
Main Board Terminals
2
(AWG20), twisted pair.
Installation
17
