Step 10 — Configure the Imager in ESP

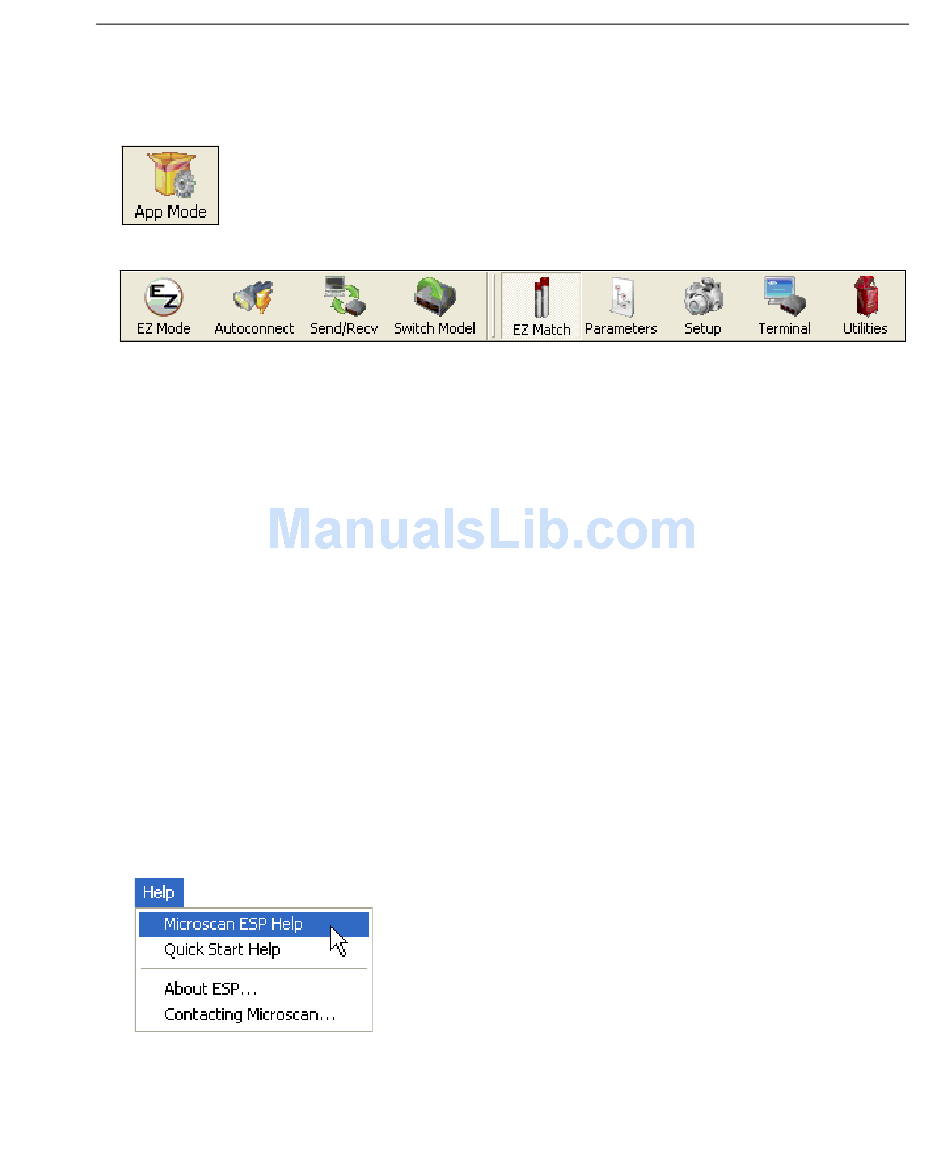

To make setup changes to the EZ Match Imager, click the App Mode button.
The following modes are accessible by clicking the buttons in the first row of App Mode icons:
• Click the EZ Mode button to return to EZ Mode.
• Click the Autoconnect button to establish communication.
• Click the Send/Recv button to send or receive commands.
• Click the Switch Model button to open the model menu, or to return to a previous model.
• Click the EZ Match button to Test the imager and to configure Multi-Operation settings,
tube/cap Library settings, and tube/cap detection Messages.
• Click the Parameters button to show the tabbed tree controls for Communication, Read
Cycle, Symbologies, I/O Parameters, Symbol Quality, Matchcode, and Diagnostics.
• Click the Setup button to access a Camera Setup tree control and Video view, and to
Evaluate image captures, Calibrate the imager, set the Window of Interest, fine-tune
capture settings and processing settings in the IP Database, set up output filters and
parse symbol data in Ordered Output and Output Format, and control multiple read
cycle functions in Dynamic Setup.
• Click the Terminal button to display tube or cap detection data or decoded symbol data,
and to send serial commands to the imager using text or macros.
• Click the Utilities button to test Read Rate, request or clear Counters, enable or disable
the imager or send output pulses in Device Control, determine the Differences from
Default in the current settings, add or remove master symbol data in Master Database,
and verify or update the imager's Firmware.
For further details, see ESP Help in the dropdown Help menu.
