Orientation Value

Usage: Instructs the imager to ignore symbols not in the specified orientation.
Definition: Sets the orientation of the symbol,
in degrees clockwise from the
default 0 orientation.
For Data Matrix symbols, sets the
finder "L" pattern, with the example
to the right showing the default 0
orientation.
For QR Code, sets the locator
pattern (three squares), with the
example to the right showing the
default 0 orientation.
The other position settings will
rotate clockwise from the defaults
shown above.
Serial Cmd: <K718,finder pattern status,symbol size mode,symbol size 1,symbol size
2,symbol size tolerance,dimension mode,dimension 1,dimension
2,dimension tolerance,orientation
Default: 0
Options: 0 to 359
Note: A symbol's orientation can miss the precise Orientation Value by several degrees
and still be qualified. To be certain of the extent of the allowable tolerance, you should
experiment with symbols in various orientations. In no case can they be more than 45°
from the assigned orientation value and still be qualified.
EZ Match User's Manual

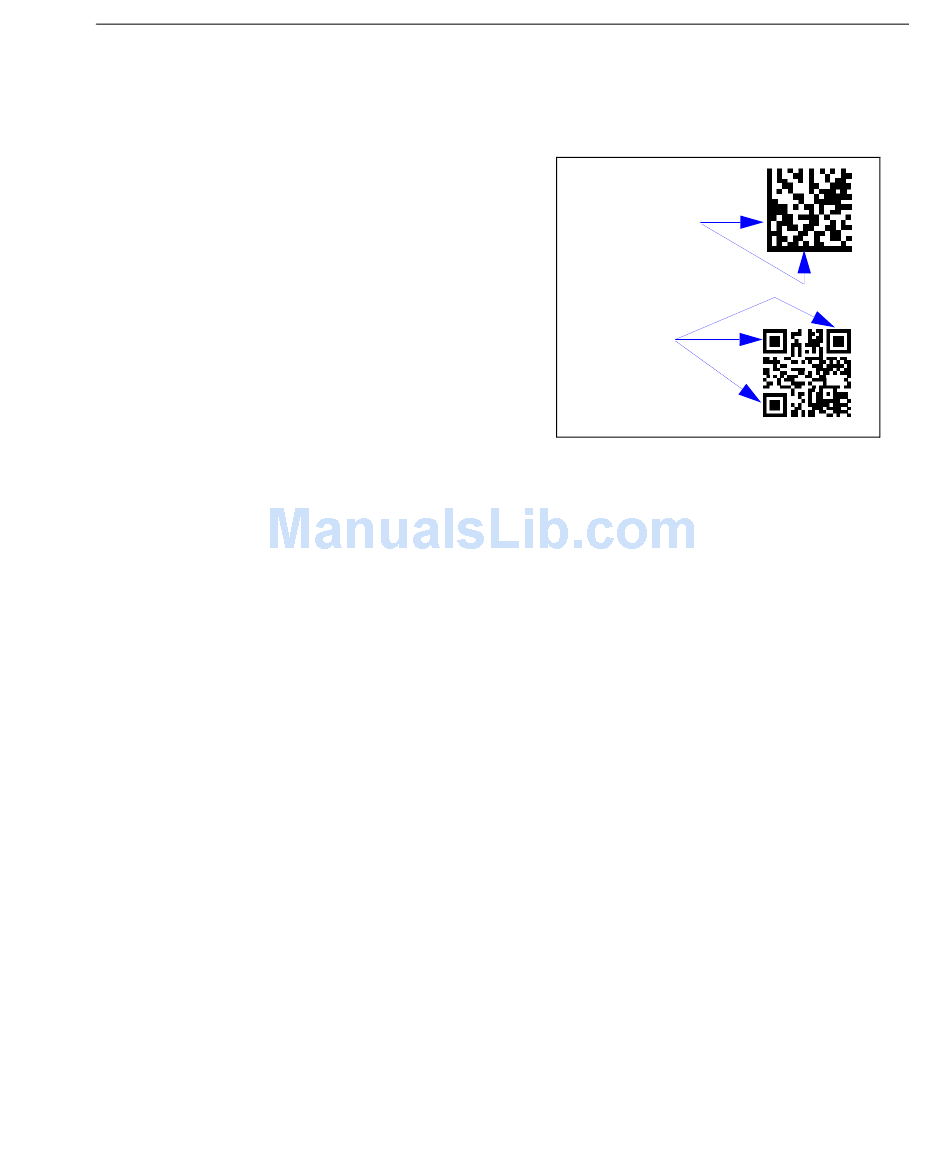

"L" finder pattern
(Data Matrix)
Three-square
finder pattern
(QR Code)
mode,orientation value>
I/O Parameters
8-17
