Instruction Manual
SB-5645AK

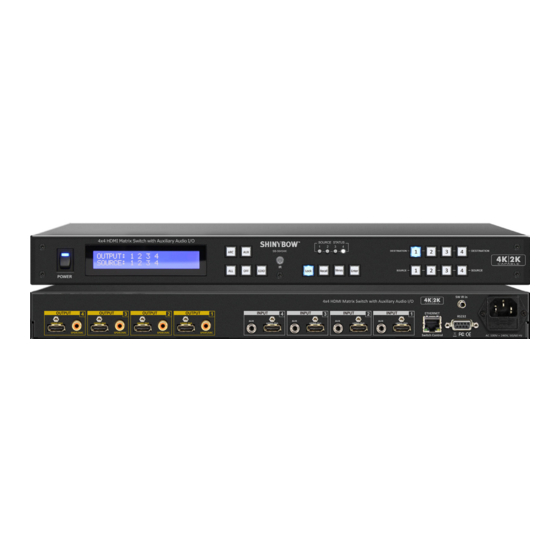

4x4 HDMI Matrix Switch with Auxiliary Audio I/O
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5645AK
Summary of Contents for Shinybow USA SB-5645AK

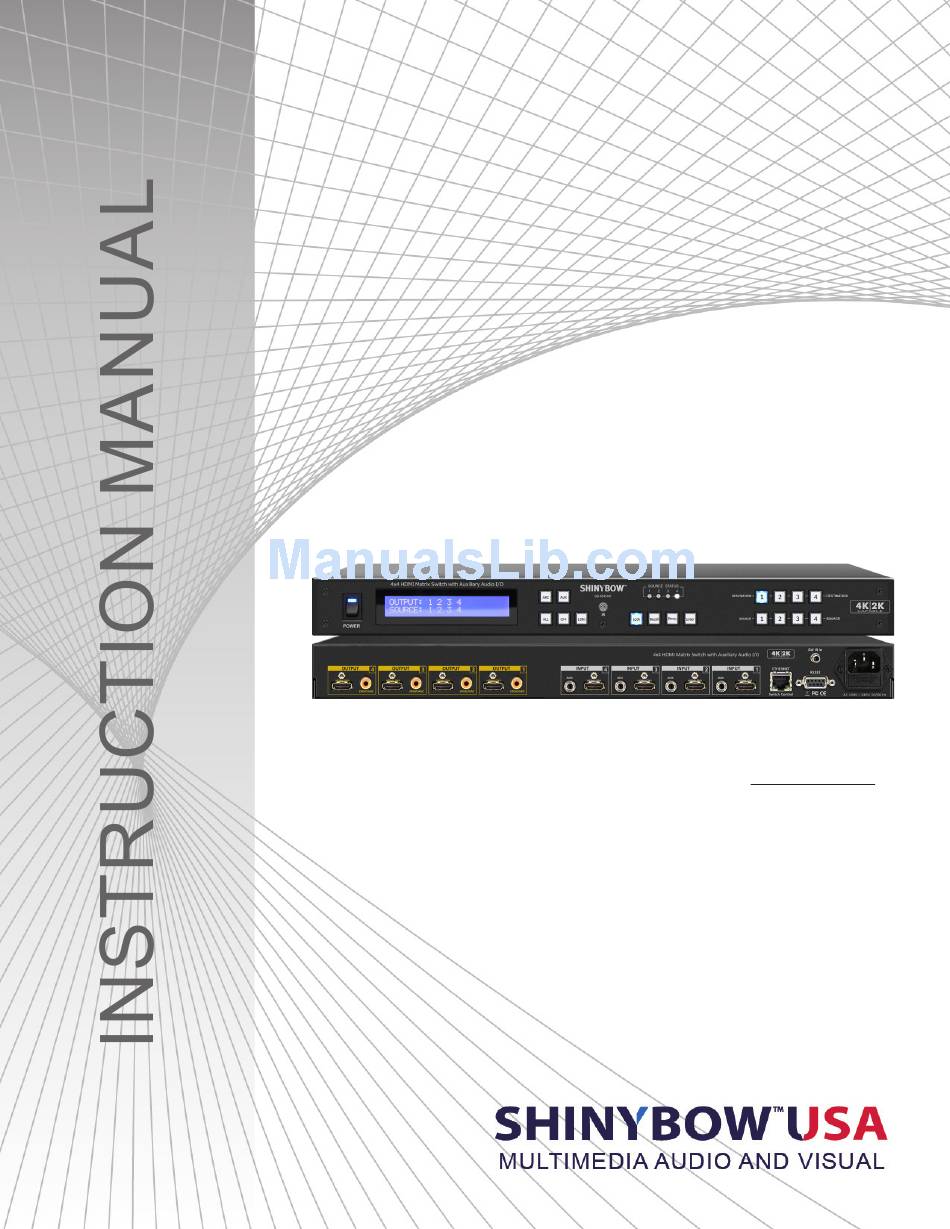

- Page 1 SB-5645AK 4x4 HDMI Matrix Switch with Auxiliary Audio I/O IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
HDMI-AUDIO MATRIX SWITCHER SERIES Thank you for purchasing the SB-5645AK HDMI Matrix Switch with Auxiliary. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 4x4 HDMI Matrix switcher. -
Page 4: Features & Contents
The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components: • SB-5645AK Matrix Switcher • RS-232 V2.0 / Ethernet V2.0 Protocol Instructions • IR Remote Control (SW-HD44AK) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (4) Inputs to (4) Outputs HDMI Matrix with Audio and Extension • HDMI Support: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 1.3 Compliant, CEC Compliant • Video Bandwidth: Wide frequency 25MHz ~ 340Mhz • Digital Video Support: HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K@30Hz up to 36bit deep color • Video Inputs: (4) HDMI (HDMI or DVI digital source) -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher. Not all displays support ARC, check your Users Guide for additional information.
- Page 8 FRONT PANEL FRONT PANEL 10. FUNCTION KEY - AUX (The audio additional on the “ Audio / ARC” Port ): The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function, this replaces the audio and does not mix the audio.
- Page 9 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - EDID: Used to display change current EDID mode. - Press EDID to select the new EDID mode or selection. - Press Source row #1 or #2 to select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
- Page 10 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by the OFF button. The display will show “0“ indicating all destinations have no video selected.
- Page 11 FRONT PANEL FRONT PANEL 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of (8). Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location.
-
Page 12: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the plug used is of an approved type and DC Jack - Inner OD Ø 2.1mm (+) is of sufficient current carrying connector capacity with the correct Outside OD Ø... - Page 13 BACK PANEL BACK PANEL 5. INPUTS - 1, 2, 3 & 4 HDMI: HDMI CONNECTOR: Connects a HDMI digital video/audio HDMI Type A SMD 19pin signal link direct to the female HDMI connector. This connector female socket connector supports HDMI with embedded audio and DVI with AUX audio sources.
-
Page 14: Remote Control
REMOTE CONTROL BEFORE MAKING ANY CONNECTIONS OBSERVE THE FOLLOWING: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 15 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 43BC DATA CODE : POWER ON: 43BC A15E LOCK: 43BC B54A AUX: 43BC 9966 POWER OFF: 43BC A25D RECALL: 43BC B24D ALL: 43BC...
-
Page 16: Rs-232 / Ethernet Serial Interface
RS-232 & ETHERNET SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the commanded string to select Inputs: Function Command Variables... -
Page 17: Edid Functions
EDID FUNCTION EDID FUNCTION SETUP EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3. - Page 18 EDID FUNCTION EDID FUNCTION: (7) EMBEDDED EDID MODES EDID FUNCTION: (7) EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Selecting ® ® ® this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start ®...
- Page 19 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER LEARNING EDID Learning EDID From Destination To Source EDID > DESTINATION Learning EDID setup Press Button EDID > DESTINATION > SOURCE > ENTER The LCM will be show LEARNING. The switcher will LEARN destination HDMI Press EDID and pass the selected source.
-
Page 20: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 21: Typical Application
INSTALLING DIAGRAM Samples Connection: 1. Using an IR External, RS-232 or Ethernet command to control the switcher SB-5645AK via a PC or the SB-100 IR receiver to transmit the SB-5645AK’s IR signal. 2. Audio ARC output link from a TV return channel, HDMI audio source or mixing Auxiliary audio. - Page 22 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 24 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
