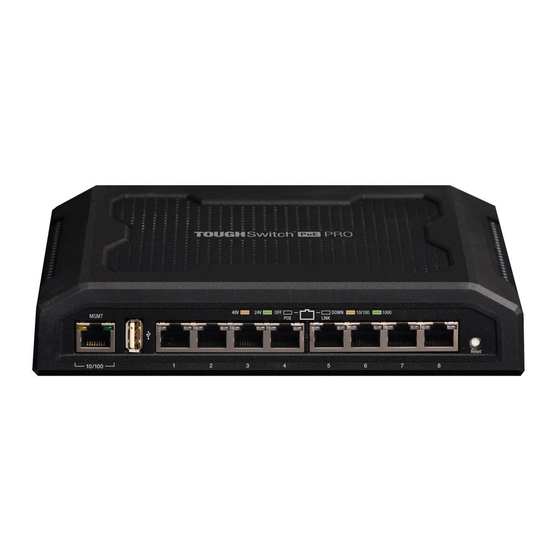

Ubiquiti TS-5-POE User Manual

Toughswitch table of contents poe power over ethernet managed switches
Hide thumbs Also See for TS-5-POE:
Table of Contents

Advertisement

Quick Links

Power over Ethernet Managed Switches
Models: TS-5-POE, TS-8-PRO, TS-16-CARRIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-5-POE and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti TS-5-POE

Summary of Contents for Ubiquiti TS-5-POE

  • Page 1 Power over Ethernet Managed Switches Models: TS-5-POE, TS-8-PRO, TS-16-CARRIER...

  • Page 2: Table Of Contents

    Configuration Management ........... . .22 Ubiquiti Networks, Inc.
  • Page 3 Ubiquiti Networks Support ........

  • Page 4: Introduction

    • “TOUGHSwitch PoE CARRIER” on page 4 (Qty. 2) (Qty. 2) 5-Port Power over Ethernet Managed Switch Model: TS-5-POE Power Adapter Power Cord Quick Start Guide (24V, 2.5A) TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

  • Page 5: Front Panel Leds

    To reset to factory defaults, press and hold the Reset Link/Act Reset button for more than 10 seconds while the unit is Green Link Established at 1000 Mbps already powered on. Green Flashing Link Activity at 1000 Mbps Ubiquiti Networks, Inc.
  • Page 6 Green Link established at 1000 Mbps To reset to factory defaults, press and hold the Reset Reset button for more than 10 seconds while the unit is Green Flashing Link activity at 1000 Mbps already powered on. Ubiquiti Networks, Inc.
  • Page 7 10/100/1000 Mbps ports for switching and PoE (also available for management by default). Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is already powered on. Ubiquiti Networks, Inc.
  • Page 8 24V Power over Ethernet Amber 48V Power over Ethernet No link Amber Link established at 10/100 Mbps Speed/ Amber Flashing Link activity at 10/100 Mbps Link/Act Green Link established at 1000 Mbps Green Flashing Link activity at 1000 Mbps Ubiquiti Networks, Inc.

  • Page 9: Introduction

    • We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Note: Although the cabling can be located outdoors, the TOUGHSwitch itself should be housed inside a protective enclosure.

  • Page 10: Connecting Power

    To enable PoE on the appropriate ports, use the Ports tab in the Configuration Interface (see “PoE” on page 24). Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch. Ubiquiti Networks, Inc.

  • Page 11: Installation Of The Toughswitch Poe Pro

    We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable 2. Connect Ethernet cables from the Ethernet ports Note:...

  • Page 12: Installation Of The Toughswitch Poe Carrier

    • We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Note: Although the cabling can be located...
  • Page 13 Ports tab in the Configuration Interface (see “PoE” on page 24). 3. Uplink options are described in the following section. EdgeRouter After you have finished the installation, proceed to “Configuring the TOUGHSwitch PoE CARRIER” on page 12. Ubiquiti Networks, Inc.

  • Page 14: Accessing The Configuration Interface

    TOUGHSwitch via any port; however, we recommend the Management port. (Access to the Configuration Interface can be limited to the Management port only. You can configure this setting on the Device tab; see “Management Network Settings” on page 18.) Ubiquiti Networks, Inc.

  • Page 15: Configuring The Toughswitch Poe Carrier

    • “MAC Forwarding Table” on page 30 • “Ping” on page 31 • “Traceroute” on page 31 • “Discovery” on page 31 5. You can enable PoE on the Ports tab and customize additional settings as needed. Ubiquiti Networks, Inc.

  • Page 16: Chapter 4: Status Tab

    Total Throughput for TX and RX are also displayed. statistics. The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 for more information. Ubiquiti Networks, Inc.

  • Page 17: Status

    Displays the status and voltage of the PoE feature. 24V is displayed in green. 48V* is displayed in orange (*available only on the TOUGHSwitch PoE PRO). Port Displays the number of the port. Name Displays the name of the port. Ubiquiti Networks, Inc.

  • Page 18: Total Throughput

    To display packet distribution for the last 20 seconds, click Last 20 sec. Two pie charts, RX and TX, display the data traffic allocated among the ports of the TOUGHSwitch. The pie charts are updated automatically. Ubiquiti Networks, Inc.
  • Page 19 Throughput displays the current data traffic on the port in both graphical and numerical form. The chart scale and throughput dimension (bps, kbps, Mbps) change dynamically depending on the mean throughput value. The statistics are updated automatically. Ubiquiti Networks, Inc.

  • Page 20: Chapter 5: Device Tab

    The Device tab allows you to configure and use the Firmware Update, Management Network Settings, Basic Settings, Management Connection Settings, Services, Spanning Tree Protocol, Jumbo Frames, Device Discovery, System Account, Device Maintenance, and Configuration Management options for the TOUGHSwitch. Ubiquiti Networks, Inc.

  • Page 21: Firmware Update

    You within the local network. The default is 192.168.1.1. cannot access the TOUGHSwitch until the firmware update Primary DNS IP Specify the IP address of the primary routine is completed. DNS (Domain Name System) server. Ubiquiti Networks, Inc.

  • Page 22: Basic Settings

    Specify the time zone in relation to Greenwich for SSH access to the device instead of using an admin Mean Time (GMT). The default is (GMT) Western Europe. password. Location Enter a description of the device’s location. Ubiquiti Networks, Inc.

  • Page 23: Services

    Enter the host name of the DDNS server. network-attached devices for issues that warrant • Username Enter the username of the DDNS account. attention. • Password Enter the password of the DDNS account. • Show Check the box to display the password characters. Ubiquiti Networks, Inc.

  • Page 24: Spanning Tree Protocol

    TOUGHSwitch does not handle jumbo frames and drops them. If you enable this option, the TOUGHSwitch handles jumbo frames and forwards them. The maximum MTU of the TOUGHSwitch PoE is 9216, and the maximum MTU of the TOUGHSwitch PoE PRO is 9720. Ubiquiti Networks, Inc.

  • Page 25: Device Discovery

    TS-8-PRO configuration file to a • Verify New Password Re-enter the new password for TS-8-PRO; do NOT upload a TS-5-POE configuration file to the administrator account. a TS-8-PRO. Note: The password length is 8 characters...

  • Page 26: Chapter 6: Ports Tab

    To sort the ports in a specific order, click the appropriate column head. Total Throughput for TX and RX are also displayed. PWR Cycle To power off the connected PoE device for five seconds and then power it back on, click PWR Cycle. Ubiquiti Networks, Inc.

  • Page 27: Basic Settings For Port

    10Mbps-Full, or 10Mbps-Half. Full-duplex mode allows communication in both directions simultaneously. Half-duplex mode allows communication in one direction at a time, alternating between transmission and reception. To achieve full performance with extra-long Ethernet cables, ensure that you use CAT6-qualified cables and interconnects. Ubiquiti Networks, Inc.

  • Page 28: Spanning Tree Settings For Port

    Priority is less likely to be blocked. If multiple ports share the highest Priority, then STP enables the port with the lowest port ID. The Priority range is 0 (highest priority) to 255 (lowest priority).The default is 128. Ubiquiti Networks, Inc.

  • Page 29: Chapter 7: Vlans Tab

    Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput. Trunk Ports Trunk mode is enabled by default. Trunk ports carry both untagged and tagged traffic from multiple VLANs. Ubiquiti Networks, Inc.

  • Page 30: Trunk

    VLAN. Native VLAN By default, the Native VLAN is 1. To specify a different Native VLAN, select it from the drop-down list. Note: Both ends of the trunk must use the same Native VLAN. Ubiquiti Networks, Inc.

  • Page 31: Chapter 8: Alerts Tab

    Entries in the Alert Log include the Port number, Date, and Message. Alert Log When alerts logging is configured on the Ports tab (see “Configure Alerts for Port” on page 25), the Alert Log lists all alerts. By default, alert logging is disabled. Ubiquiti Networks, Inc.

  • Page 32: System Log

    By default, system logging is disabled. When system logging is enabled, there are two buttons available: Clear To delete all entries in the System Log, click Clear. Refresh To update the log content, click Refresh. Ubiquiti Networks, Inc.

  • Page 33: Chapter 9: Tools

    The MAC Forwarding Table displays the MAC addresses of The MAC Forwarding Table reports the Port number, VLAN the hardware devices using the TOUGHSwitch. ID, and MAC Address for each hardware device. To refresh the window, click Refresh. Ubiquiti Networks, Inc.

  • Page 34: Ping

    Device Name, wireless Mode (if applicable), SSID, Product type, Firmware version, and IP Address for each Ubiquiti device. To access a device configuration through its web management interface, click the device’s IP address. To refresh the window, click Scan. Ubiquiti Networks, Inc.

  • Page 35: Appendix A: Specifications

    -25 to 55° C Operating Humidity 90% Non-Condensing PoE Configurable Per Port Management Data Ports Off/24V LEDs Per Port Management Power/Link Data Ports PoE, Speed/Link/Activity Networking Interfaces Management Port (1) 10/100 Ethernet Port Data Ports (5) 10/100/1000 Ethernet Ports Ubiquiti Networks, Inc.
  • Page 36 TOUGHSwitch PoE CARRIER Dimensions 480 x 44.5 x 186 mm Weight 3.95 kg Hardware Configuration (2) 8-Port TOUGHSwitch PoE PROs Mounting Integrated 1U Rack-Mount * Specifications apply to each 8-Port TOUGHSwitch PoE PRO unit of the TOUGHSwitch PoE CARRIER. Ubiquiti Networks, Inc.

  • Page 37: Appendix B: Safety Notices

    Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations. Ubiquiti Networks, Inc.

  • Page 38: Appendix C: Warranty

    SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET shall be for UBIQUITI NETWORKS, at its discretion, to ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND repair or replace any Product that fails to conform to the NON-INFRINGEMENT AND ANY WARRANTIES ARISING above warranty during the above warranty period.
  • Page 39 RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products. Ubiquiti Networks, Inc.

  • Page 40: Appendix D: Compliance Information

    Sie sich bitte an die örtlichen Behörden oder measures. städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Ubiquiti Networks, Inc.
  • Page 41 Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto. Ubiquiti Networks, Inc.

  • Page 42: Appendix E: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar [Icelandic] eru í tilskipun 1999/5/EC.

  • Page 43: Appendix F: Contact Information

    San Jose, CA 95131 www.ubnt.com © 2012-2013 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti Networks ® and TOUGHSwitch ™ are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. JL082613 Ubiquiti Networks, Inc.
