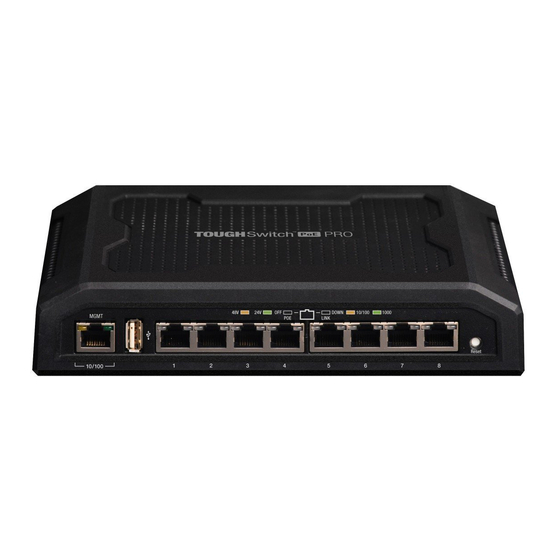

  • Page 1 5-Port Power over Ethernet Managed Switch 8-Port Power over Ethernet Managed Switch PRO Models: TS-5-POE, TS-8-PRO...

  • Page 2: Table Of Contents

    Configure Alerts for Port ............21 Ubiquiti Networks, Inc.
  • Page 3 Ubiquiti Networks Support ........

  • Page 4: Introduction

    TOUGHSwitch PoE User Guide Chapter 1: Overview ™ Chapter 1: Overview TOUGHSwitch PoE PRO Introduction Thank you for purchasing the Ubiquiti TOUGHSwitch PoE, ™ which is part of the TOUGHSwitch series: Name Model Description 8-Port Power over Ethernet Carrier Class...

  • Page 5: Front Panel Leds

    Link Established at 10/100 Mbps Reset button for more than 10 seconds while the unit is already powered on. Speed/ Amber Flashing Link Activity at 10/100 Mbps Link/Act Green Link Established at 1000 Mbps Green Flashing Link Activity at 1000 Mbps Ubiquiti Networks, Inc.
  • Page 6 To reset to factory defaults, press and hold the Reset Link/Act Reset button for more than 10 seconds while the unit is Green Link established at 1000 Mbps already powered on. Green Flashing Link activity at 1000 Mbps Ubiquiti Networks, Inc.

  • Page 7: Introduction

    AC ground of the power supply. We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks . For more details, visit: ™...

  • Page 8: Connecting Ethernet

    To enable PoE on the appropriate ports, use the Ports 2. Connect the Power Cord to the power port on the tab in the Configuration Interface (see “PoE” on Power Adapter. Connect the other end of the Power page 20). Cord to a power outlet. Ubiquiti Networks, Inc.

  • Page 9: Installation Of The Toughswitch Poe Pro

    AC ground of the power supply. We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti 2. Connect Ethernet cables from the Ethernet ports Networks . For more details, visit: ™...

  • Page 10: Accessing The Configuration Interface

    5. The Configuration Interface will appear, allowing you to setting on the Device tab; see “Management customize your settings as needed. You can enable PoE Network Settings” on page 14.) on the Ports tab; see “PoE” on page 20. Ubiquiti Networks, Inc.

  • Page 11: Product Verification

    For a genuine TOUGHSwitch, the Configuration Interface will display a Genuine Product logo in the lower left corner of the screen. For any product that is not an official Ubiquiti product, the Configuration Interface will display a counterfeit warning. support@ubnt.com...

  • Page 12: Status Tab

    The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 The Main tab displays a summary of the link status for more information. information, current values of the basic configuration settings, network settings and information, and traffic statistics. Ubiquiti Networks, Inc.

  • Page 13: Status

    Displays the activity status of the link connection. Link Status Displays the speed and duplex mode of the port. If the port is inactive, “Down” is displayed. Port Displays the number of the port. Name Displays the name of the port. Ubiquiti Networks, Inc.

  • Page 14: Total Throughput

    To display packet distribution for the last 20 seconds, click Last 20 sec. Two pie charts, RX and TX, display the data traffic allocated among the ports of the TOUGHSwitch. The pie charts are updated automatically. Ubiquiti Networks, Inc.
  • Page 15 Throughput displays the current data traffic on the port in both graphical and numerical form. The chart scale and throughput dimension (bps, kbps, Mbps) change dynamically depending on the mean throughput value. The statistics are updated automatically. Ubiquiti Networks, Inc.

  • Page 16: Device Tab

    The Device tab allows you to configure and use the Management Network Settings, Basic Settings, Management Connection Settings, Services, Spanning Tree Protocol, Jumbo Frames, Device Discovery, System Account, and Maintenance options for the TOUGHSwitch. Total Throughput for TX and RX are also displayed. Ubiquiti Networks, Inc.

  • Page 17: Management Network Settings

    The IP address may change, and you will need Address and Netmask are not mandatory; however, if you to use the Discovery tool from another Ubiquiti want to manage the TOUGHSwitch, then you will need to device or computer to discover the IP address configure the IP Address and Netmask unless you select of the TOUGHSwitch.

  • Page 18: Basic Settings

    Specify the maximum timeout before • Deletes a public key file. the session expires. Once a session expires, you must log Save Saves your changes. in again using the username and password. The default is Close Discards your changes. 15 minutes. Ubiquiti Networks, Inc.

  • Page 19: Services

    The more detailed the system messages • Location Specify the physical location of the device. reported, the greater the volume of log messages generated. Ubiquiti Networks, Inc.

  • Page 20: Ntp Client

    This option is enabled by default, so the device create excessive traffic and slow down performance. STP can be discovered by other Ubiquiti devices through the calculates the best path for network traffic; if the best path Device Discovery tool. See “Discovery” on page 27 for fails, STP recalculates and finds the next best path.

  • Page 21: Maintenance

    This generates a support information Updating the firmware is a three-step procedure: file that the Ubiquiti support engineers can use when 1. Click Choose File to locate the new firmware file. Select providing customer support. This file only needs to be the file and click Open.

  • Page 22: Ports Tab

    Then click Save Changes. WARNING: The PoE setting is also cloned. Ensure that the same PoE setting suits all ports before you clone the settings of the selected port. Ubiquiti Networks, Inc.

  • Page 23: Basic Settings For Port

    Specify the number of seconds this port in one direction at a time, alternating between should pause PoE (if applicable). transmission and reception. WARNING: Cutting power during a firmware upgrade can damage your device. Ensure that you specify a safe Ping Interval. Ubiquiti Networks, Inc.

  • Page 24: Spanning Tree Settings For Port

    Priority is less likely to be blocked. If multiple ports share the highest Priority, then STP enables the port with the lowest port ID. The Priority range is 0 (highest priority) to 255 (lowest priority).The default is 128. Ubiquiti Networks, Inc.

  • Page 25: Vlans Tab

    VLAN ID Enter a unique VLAN ID from 2 to 4095. • Comment Enter a description of this VLAN. Save Changes To immediately save your changes, click Save Changes. Revert Changes To cancel your changes, click Revert Changes. Ubiquiti Networks, Inc.
  • Page 26 The port does not belong to this VLAN. Click the letter until it becomes a “E” . • Delete Permanently removes the VLAN. If you want to temporarily disable the VLAN, remove the check from the Enabled box. Ubiquiti Networks, Inc.

  • Page 27: Alerts Tab

    Allows you to search for specific text. Begin typing; there is no need to press enter. The results are filtered in real time as soon as you type two or more characters. Entries in the Alert Log include the Port number, Date, and Message. Ubiquiti Networks, Inc.

  • Page 28: System Log

    By default, system logging is disabled. When system logging is enabled, there are two buttons available: Clear To delete all entries in the System Log, click Clear. Refresh To update the log content, click Refresh. Ubiquiti Networks, Inc.

  • Page 29: Ping

    Specify the size of the packet in bytes. The estimation between two network devices. default is 56. Start Click this button to start the test. Packet loss statistics and latency time evaluation are displayed after the test is completed. Ubiquiti Networks, Inc.

  • Page 30: Traceroute

    The Device Discovery tool reports the MAC Address, Device Name, wireless Mode (if applicable), SSID, Product type, Firmware version, and IP Address for each Ubiquiti Destination Host Enter the IP address of the destination device. To access a device configuration through its web host.

  • Page 31: Specifications

    -25 to 55°C (-13 to 131° F) Operating Humidity 90% Non-Condensing PoE Configurable Per Port Management Data Ports Off/24V LEDs Per Port Management Power/Link Data Ports PoE, Speed/Link/Activity Networking Interfaces Management Port (1) 10/100 Ethernet Port Data Ports (5) 10/100/1000 Ethernet Ports Ubiquiti Networks, Inc.
  • Page 32 -25 to 55°C (-13 to 131° F) Operating Humidity 90% Non-Condensing PoE Configurable Per Port Management Data Ports Off/24V/48V LEDs Per Port Management Power/Link Data Ports PoE, Speed/Link/Activity Networking Interfaces Management Port (1) 10/100 Ethernet Port Data Ports (8) 10/100/1000 Ethernet Ports Ubiquiti Networks, Inc.

  • Page 33: Safety Notices

    Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations. Ubiquiti Networks, Inc.

  • Page 34: General Warranty

    Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).

  • Page 35: Compliance Information

    Informationen zur Entsorgung Ihrer Altgeräte benötigen, compliance with all directives that are applicable to it. wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben. Ubiquiti Networks, Inc.
  • Page 36 Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto. Ubiquiti Networks, Inc.

  • Page 37: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar [Icelandic] eru í tilskipun 1999/5/EC.

  • Page 38: Contact Information

    Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com 2580 Orchard Parkway San Jose, CA 95131 www.ubnt.com © 2012 Ubiquiti Networks, Inc. All rights reserved. TOUGHSwitch ™ Ubiquiti Networks ™ are trademarks of Ubiquiti Networks, Inc. JL082712 Ubiquiti Networks, Inc.
