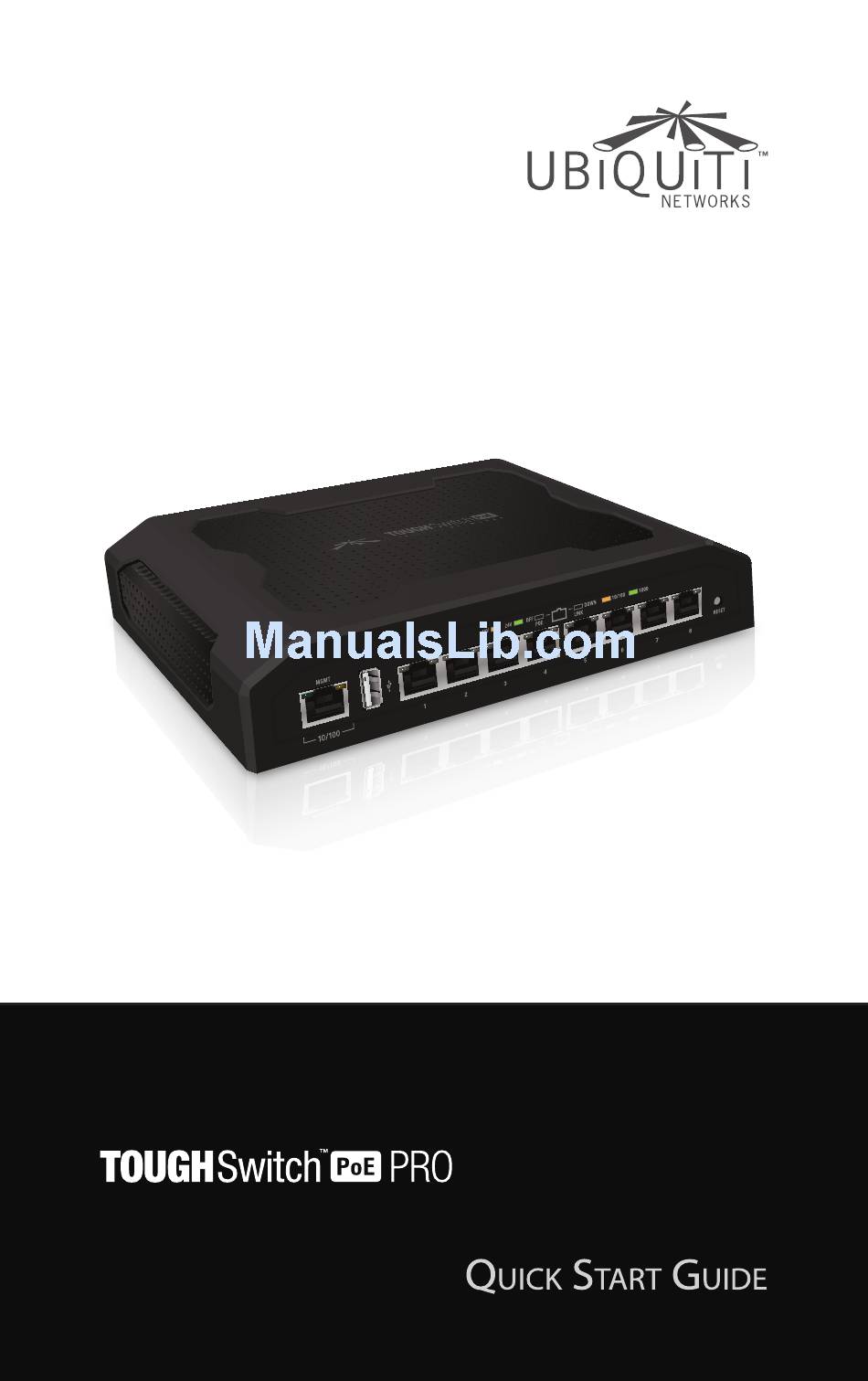

- Page 1 8-Port Power over Ethernet Managed Switch PRO Model: TS-8-PRO...
-
Page 3: Package Contents
This Quick Start Guide is designed to guide you through the installation and show you how to access the Configuration Interface. This Quick Start Guide also includes the warranty terms, and is for use with the TOUGHSwitch PoE PRO, model TS-8-PRO. For more information, visit www.ubnt.com/toughswitch Package Contents... -
Page 4: Back Panel
TOUGHSwitch PoE PRO Quick Start Guide ™ Hardware Back Panel Ventilation Holes Power Note: There are additional ventilation holes on the top and sides of the TOUGHSwitch. Front Panel Ports Management Reset Interface Description 10/100 Mbps port for management. Traffic between the Management port and numbered ports will Management be limited to 10/100 Mbps and, under heavy... -
Page 5: Front Panel Leds
Hardware Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the Link Amber link terminates, the LED turns off until a link is re-established. -
Page 6: Hardware Installation
AC ground of the power supply. We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Note:... -
Page 7: Connecting Ethernet
Installation Requirement Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch. Note: PoE is disabled by default on all numbered ports and is not available on the Management port. -
Page 8: Accessing The Configuration Interface
TOUGHSwitch PoE PRO Quick Start Guide ™ Accessing the Configuration Interface Connect to the Configuration Interface by performing the following steps: 1. Ensure that your computer (or other host machine) is connected to the Management port on the TOUGHSwitch. Note: By default, you can configure the TOUGHSwitch via any port;... -
Page 9: Configuring Poe Settings
Accessing the Configuration Interface Configuring PoE Settings The PoE settings are set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. On the Status tab, click the Ports tab. 2. -
Page 10: Specifications
TOUGHSwitch PoE PRO Quick Start Guide ™ Specifications TOUGHSwitch PoE PRO Dimensions 210 x 185 x 41 mm Weight 1.24 kg Power Input 110-120VAC / 210-230VAC Max. Power Consumption 150 W PoE Out Voltage Range 45-48VDC / 22-24VDC Max. PoE Wattage Per Data Port 11.5 W (24 V), 23 W (48V) ESD Rating 24 kV Air / 24 kV Contact... -
Page 11: Safety Notices
Safety Notices Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. -
Page 12: Limited Warranty
UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. -
Page 13: Limitation Of Liability
DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s... -
Page 14: Industry Canada
TOUGHSwitch PoE PRO Quick Start Guide ™ Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference... -
Page 15: Rohs/Weee Compliance Statement
Compliance RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. - Page 16 TOUGHSwitch PoE PRO Quick Start Guide ™ Français La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.
-
Page 17: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. - Page 18 TOUGHSwitch PoE PRO Quick Start Guide ™ Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB...
- Page 20 Support support.ubnt.com Community community.ubnt.com Downloads downloads.ubnt.com w w w . u b n t . c o m © 2012-2013 Ubiquiti Networks, Inc. All rights reserved.
