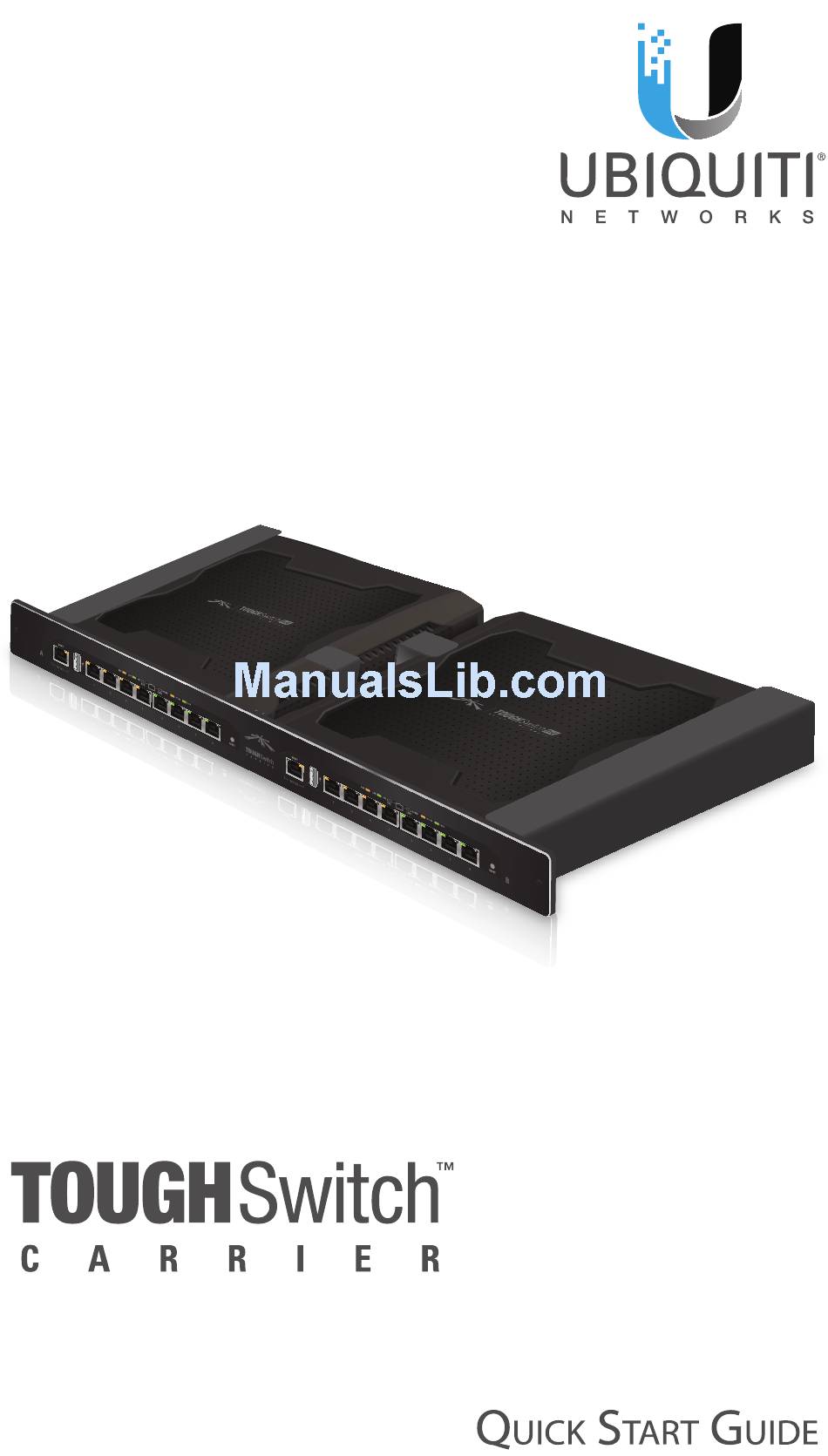

- Page 1 Rack-Mount Power over Ethernet Managed Switches Model: TS-16-CARRIER...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® TOUGHSwitch CARRIER. This Quick Start Guide is designed to ™ guide you through installation and includes warranty terms. Package Contents TOUGHSwitch CARRIER Flathead Screws Phillips Screws Cage Nuts (M3x8, Qty. 2) (#10-32 x 5/8” , Qty. 4) (#10-32 x 5/8”... -
Page 3: Hardware Overview
Hardware Overview A and B designate the two 8-Port TOUGHSwitch PoE PROs housed in the rack. This may be useful for the Location setting on the Device tab in the Configuration Interface. Front Panel Ports Management Ports 1-8 Management Ports 1-8 Reset Reset TOUGHSwitch A... - Page 4 Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the link Link Amber terminates, the LED turns off until a link is re-established.
-
Page 5: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Important: Although the cabling can be located outdoors, the TOUGHSwitch itself should be housed inside a protective enclosure. -
Page 6: Hardware Installation
Hardware Installation 1. Connect the Power Cord to the Power port of each TOUGHSwitch. 2. Attach the TOUGHSwitch PoE CARRIER to the rack using the four Phillips Screws. (If the rack has square slots, then use the Cage Nuts with the Phillips Screws.) - Page 7 3. Attach the top portion of the faceplate at a slight angle, and then snap on the bottom portion. Secure the faceplate to the TOUGHSwitch PoE CARRIER using the two Flathead Screws. 4. Connect the other end of each Power Cord to a power outlet.
- Page 8 Daisy-Chain (Optional) All data ports are available as uplink ports. If you want to daisy-chain TOUGHSwitch A and B, we recommend that you connect an Ethernet cable from port 8 of TOUGHSwitch A to port 1 of TOUGHSwitch B. Note: PoE is disabled by default on all numbered ports and is not available on the Management port.
-
Page 9: Accessing The Configuration Interface
Accessing the Configuration Interface Connect to the Configuration Interface by performing the following steps: 1. Ensure that your computer is connected to the Management port on the TOUGHSwitch. Note: By default, you can configure the TOUGHSwitch via any port; however, we recommend the Management port. -
Page 10: Configuring Poe Settings
Configuring PoE Settings WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. By default, PoE is off on each port. 1. Click the Ports tab. 2. On the Ports tab, select the Ethernet port you want to configure. -
Page 11: Specifications
Specifications TOUGHSwitch PoE CARRIER Dimensions 480 x 44.5 x 186 mm (18.9 x 1.75 x 7.32") Weight 3.95 kg (8.71 lb) Hardware Configuration (2) 8-Port TOUGHSwitch PoE PROs Mounting 19" 1U Rack-Mount 8-Port TOUGHSwitch PoE PRO* Power Input 110-120VAC / 210-230VAC Max. -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 13: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 14: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 15 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 16: Industry Canada
Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian ICES-003. CAN ICES-3(A)/NMB-3(A) Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. - Page 17 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 18 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 19: Declaration Of Conformity
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è... -
Page 20: Online Resources
©2012-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
