Summary of Contents for Ubiquiti UniFi Switch Flex

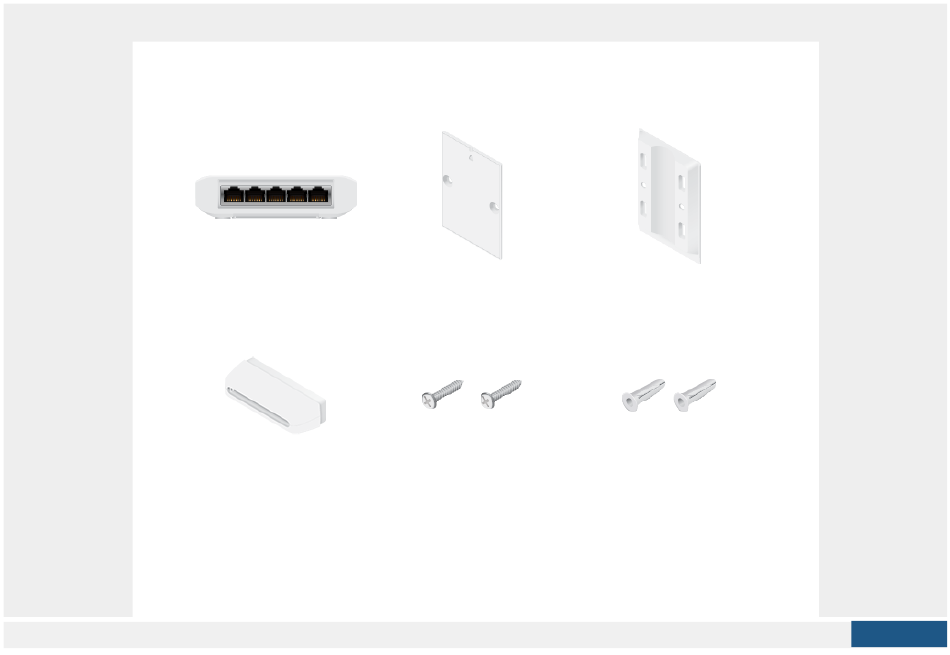

- Page 1 Package Contents UniFi Switch Flex Wall Mount Pole Mount Port Cover Mounting Screws (Qty. 2) Screw Anchors (Qty. 2) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: System Requirements
Zip Ties (Qty. 2) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.8 or above recommended Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi All UniFi devices support off-site management controllers. - Page 3 RJ45 (Ports 1 - 5) RJ45 ports support 10/100/1000 Mbps Ethernet connections. PoE In (Port 1) Supports 802.3af/at/bt System LED Steady White Factory defaults, awaiting adoption. Flashing White Bootup in process. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 4: Hardware Installation
Steady Blue Successfully adopted. Flashing Blue Firmware upgrade in process. PoE LEDs (Ports 2 - 5) No PoE Amber Powered on, IEEE 802.3af Link/Speed/Activity LEDs (Ports 1 - 5) No Link Link established at 10/100/1000 Mbps Green Flashing indicates activity Hardware Installation Wall Mounting Create PDF in your applications with the Pdfcrowd... - Page 5 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 8: Magnetic Mounting
Magnetic Mounting Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 9 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 10: Pole Mounting
Pole Mounting Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 12: Powering The Switch
NOTE: For outdoor installations, please install the Port Cover prior to connecting your Ethernet cables. See Outdoor Installation. Powering the Switch Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 13 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 14: Connecting Ethernet
Connecting Ethernet Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... -
Page 15: Outdoor Installation
NOTE: For outdoor installations, please install the Port Cover prior to connecting your Ethernet cables. See Outdoor Installation. Outdoor Installation Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 16 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 17: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.10.x or newer installed, skip to Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. - Page 18 You can manage your network and view network statistics using the UniFi Controller management interface. To adopt the UniFi Switch, proceed to the Adopting the UniFi Switch section. For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch...
- Page 19 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 20: Specifications
3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications USW-Flex Dimensions 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") Weight 230 g (8.11 oz) Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports Management Interface Ethernet In-Band... -
Page 21: Safety Notices
USW-Flex PoE Mode 3: 54V / 1.1A PoE Adapter PoE Out (Ports 2-5) 802.3af (Pins 1, 2+; 3, 6-) Max. Power Consumption (Excluding PoE Output) Supported Voltage Range 802.3af Mode 44V - 57V 802.3at/bt Mode 50V - 57V LEDs System Status RJ45 Data Ports PoE;... -
Page 22: Electrical Safety Information
WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 23: Australia And New Zealand
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 24: Weee Compliance Statement
WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
