Ubiquiti TS-8-PRO Quick Start Manual

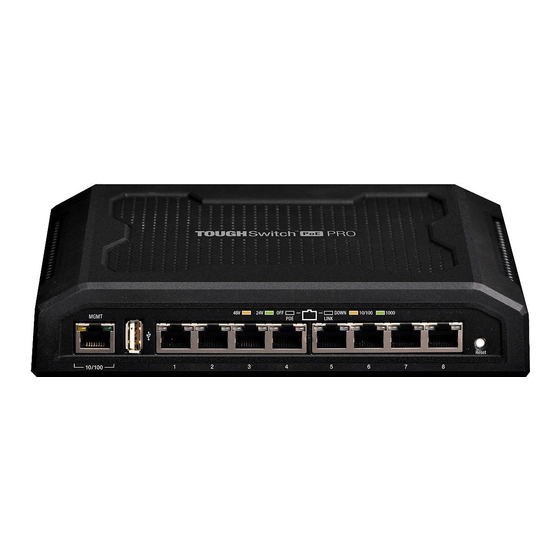

8-port power over ethernet managed switch
Hide thumbs Also See for TS-8-PRO:
Table of Contents

Advertisement

Quick Links

8-Port Power over Ethernet
Managed Switch
Model: TS-8-PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-8-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti TS-8-PRO

Summary of Contents for Ubiquiti TS-8-PRO

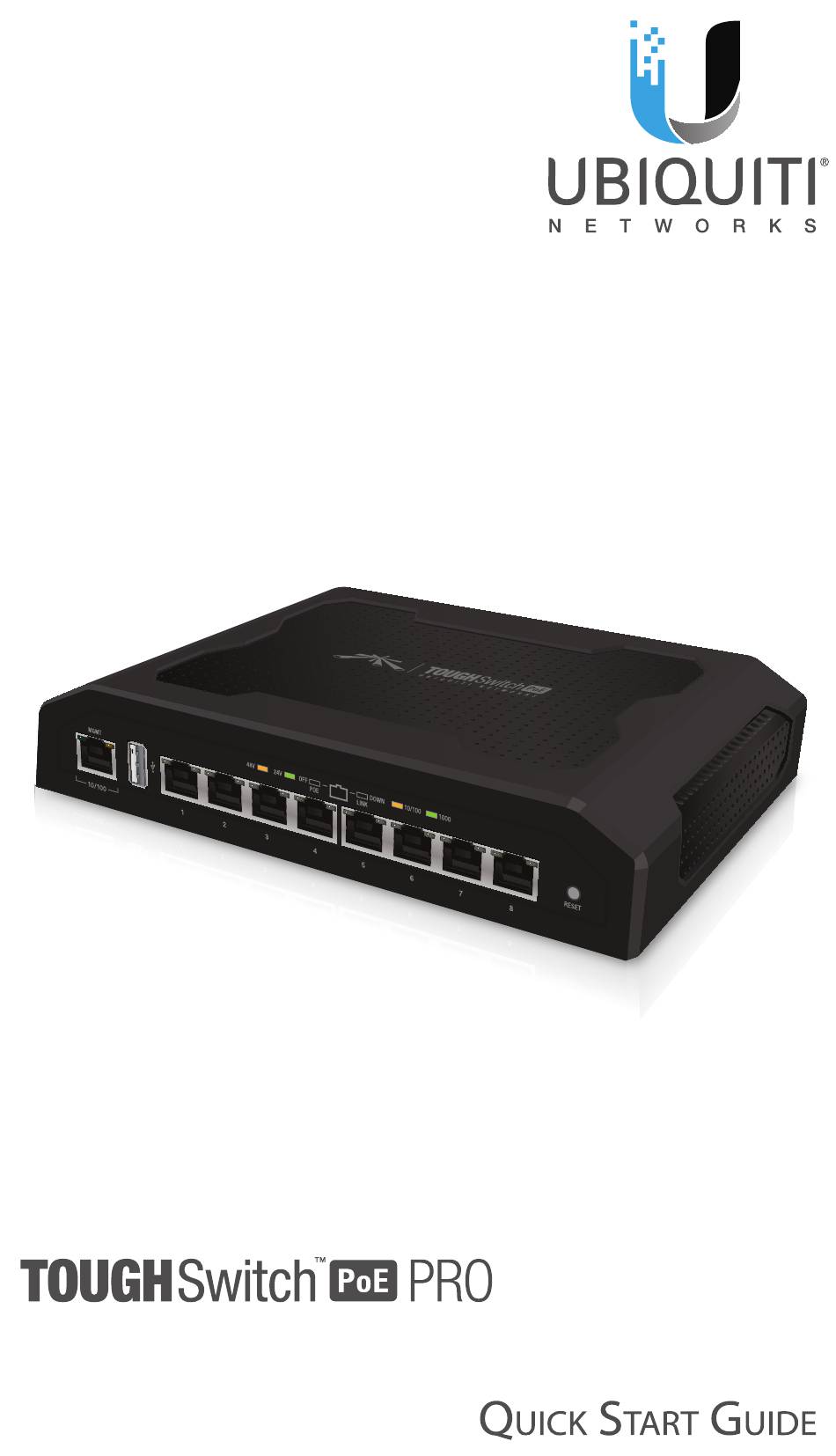

  • Page 1 8-Port Power over Ethernet Managed Switch Model: TS-8-PRO...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® TOUGHSwitch PoE Pro. This Quick Start Guide is designed to ™ guide you through installation and includes warranty terms. Package Contents TOUGHSwitch PoE PRO Power Cord 8-Port Power over Ethernet Managed Switch...

  • Page 3: Hardware Overview

    Hardware Overview Back Panel Ventilation Holes Power Note: There are additional ventilation holes on the top and sides of the TOUGHSwitch. Front Panel Ports Management Ports 1-8 Reset Interface Description 10/100 Mbps port used to access the MGMT TOUGHSwitch Configuration Interface. Reserved for future use.
  • Page 4 Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the link Link Amber terminates, the LED turns off until a link is re-established.

  • Page 5: Hardware Installation

    AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Important: Although the cabling can be located outdoors, the TOUGHSwitch itself should be housed inside a protective enclosure.

  • Page 6: Connecting Power

    Connecting Power 1. Connect the Power Cord to the Power port of the TOUGHSwitch. 2. Connect the other end of the Power Cord to a power outlet.

  • Page 7: Connecting Ethernet

    Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch. Note: PoE is disabled by default on all numbered ports and is not available on the Management port.

  • Page 8: Accessing The Configuration Interface

    Accessing the Configuration Interface Connect to the Configuration Interface by performing the following steps: 1. Ensure that your computer (or other host machine) is connected to the Management port on the TOUGHSwitch. Note: By default, you can configure the TOUGHSwitch via any port; however, we recommend the Management port.
  • Page 9 Configuring PoE Settings The PoE settings are set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. Click the Ports tab. 2. On the Ports tab, select the Ethernet port you want to configure.

  • Page 10: Specifications

    Specifications TS-8-PRO Dimensions 210 x 185 x 41 mm (8.27 x 7.28 x 1.61") Weight 1.24 kg (2.73 lb) Power Input 110-120VAC / 210-230VAC Max. Power Consumption 150W PoE Out Voltage Range 45-48 VDC / 22-24VDC Max. PoE Wattage Per 11.5W (24V)

  • Page 11: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 12: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.
  • Page 13 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.

  • Page 14: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...

  • Page 15: Industry Canada

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 17 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 18: Declaration Of Conformity

    Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è...

  • Page 19: Online Resources

    [Slovak] a ďalšími relevantnými ustanoveniami smernice 2014/30/EÚ, 2014/35/EÚ. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE.
  • Page 20 . u b n t . c o m ©2012-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc.

This manual is also suitable for:

Toughswitch poe pro
