5-Port Power over Ethernet
Managed Switch
Model: TS-5-POE

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti TS-5-POE

Summary of Contents for Ubiquiti TS-5-POE

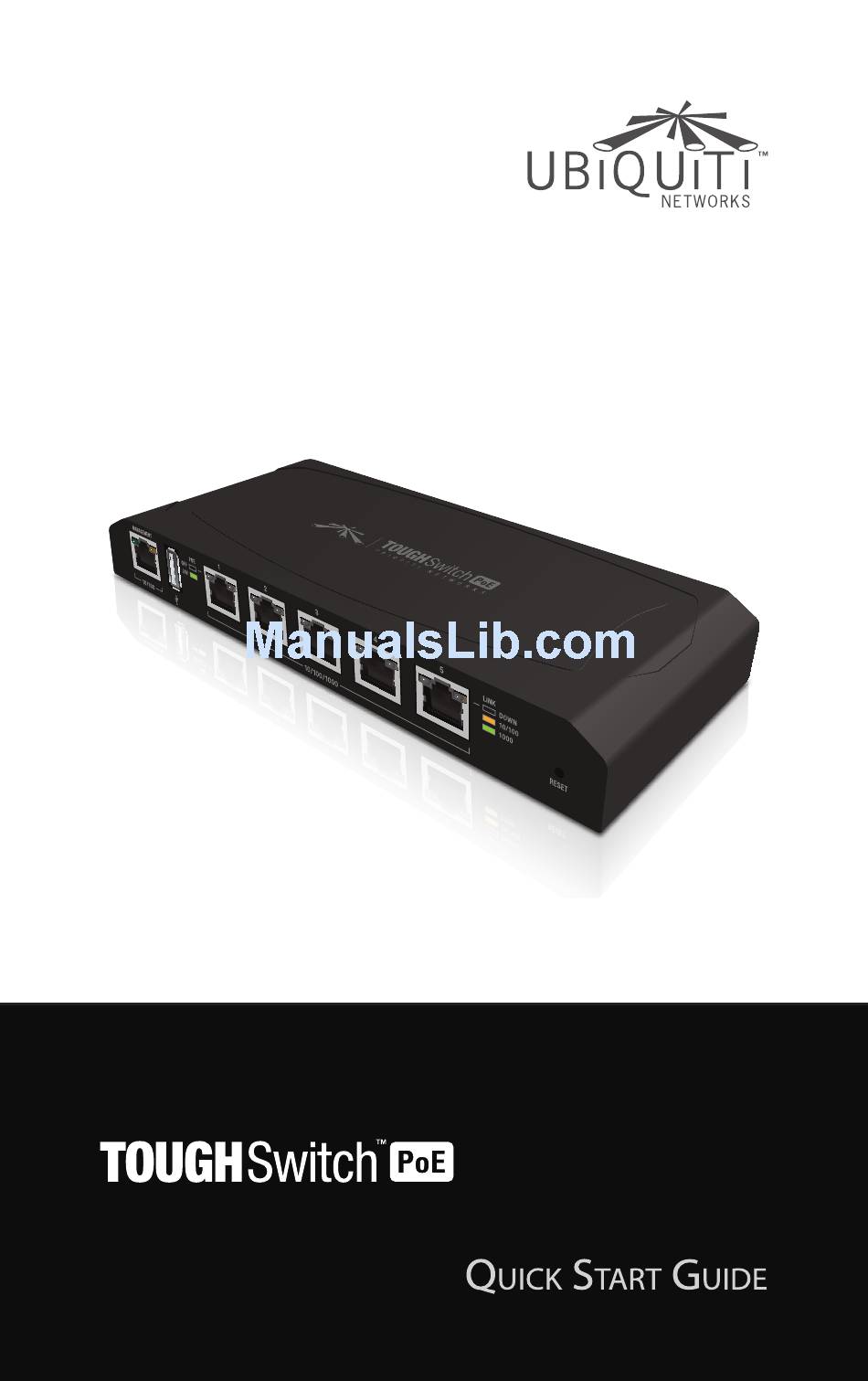

  • Page 1 5-Port Power over Ethernet Managed Switch Model: TS-5-POE...

  • Page 3: Package Contents

    This Quick Start Guide is designed to guide you through the installation and show you how to access the Configuration Interface. This Quick Start Guide also includes the warranty terms, and is for use with the TOUGHSwitch PoE, model TS-5-POE. For more information, visit www.ubnt.com/toughswitch Package Contents TOUGHSwitch PoE M2.9x20 Screws...

  • Page 4: Back Panel

    TOUGHSwitch PoE Quick Start Guide ™ Hardware Back Panel Grounding Grounding Ventilation Holes Power Slot Slot Front Panel Ports Management Reset Interface Description 10/100 Mbps port for management. Traffic between the Management port and numbered ports will Management be limited to 10/100 Mbps and, under heavy load, may cause performance degradation of the TOUGHSwitch.

  • Page 5: Front Panel Leds

    Hardware Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the Link Amber link terminates, the LED turns off until a link is re-established.

  • Page 6: Hardware Installation

    AC ground of the power supply. We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Note:...
  • Page 7 Hardware Installation 4. Position the Wall-Mount Slots of the TOUGHSwitch over the screw heads on the wall. Then slide the TOUGHSwitch to the left to lock it into place. Grounding the TOUGHSwitch (Optional) The TOUGHSwitch is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection.

  • Page 8: Connecting Power

    TOUGHSwitch PoE Quick Start Guide ™ Connecting Power 1. Connect the power connector of the Power Adapter to the Power port of the TOUGHSwitch. 2. Connect the Power Cord to the power port on the Power Adapter. Connect the other end of the Power Cord to a power outlet.

  • Page 9: Connecting Ethernet

    Hardware Installation Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch. Note: PoE is disabled by default on all numbered ports and is not available on the Management port.

  • Page 10: Accessing The Configuration Interface

    TOUGHSwitch PoE Quick Start Guide ™ Accessing the Configuration Interface Connect to the Configuration Interface by performing the following steps: 1. Ensure that your computer (or other host machine) is connected to the Management port on the TOUGHSwitch. Note: By default, you can configure the TOUGHSwitch via any port;...

  • Page 11: Specifications

    Specifications Specifications TOUGHSwitch PoE Dimensions 197 x 87.5 x 27.3 mm Weight 250 g Power Input 24VDC, 2.5A Power Adapter (Included) Max. Power Consumption 60 W PoE Out Voltage Range 22-24VDC Max. PoE Wattage Per Data Port 11.5 W ESD Rating 24 kV Air / 24 kV Contact PoE Method Passive...

  • Page 12: Safety Notices

    (the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.

  • Page 13: Warranty Conditions

    OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including the Products) for buyer’s application and/or failure of...

  • Page 14: Limitation Of Liability

    TOUGHSwitch PoE Quick Start Guide ™ Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE...

  • Page 15: Australia And New Zealand

    Compliance Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
  • Page 16 TOUGHSwitch PoE Quick Start Guide ™ Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 17: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
  • Page 18 TOUGHSwitch PoE Quick Start Guide ™ Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB...
  • Page 20 Support support.ubnt.com Community community.ubnt.com Downloads downloads.ubnt.com w w w . u b n t . c o m © 2012-2013 Ubiquiti Networks, Inc. All rights reserved.
