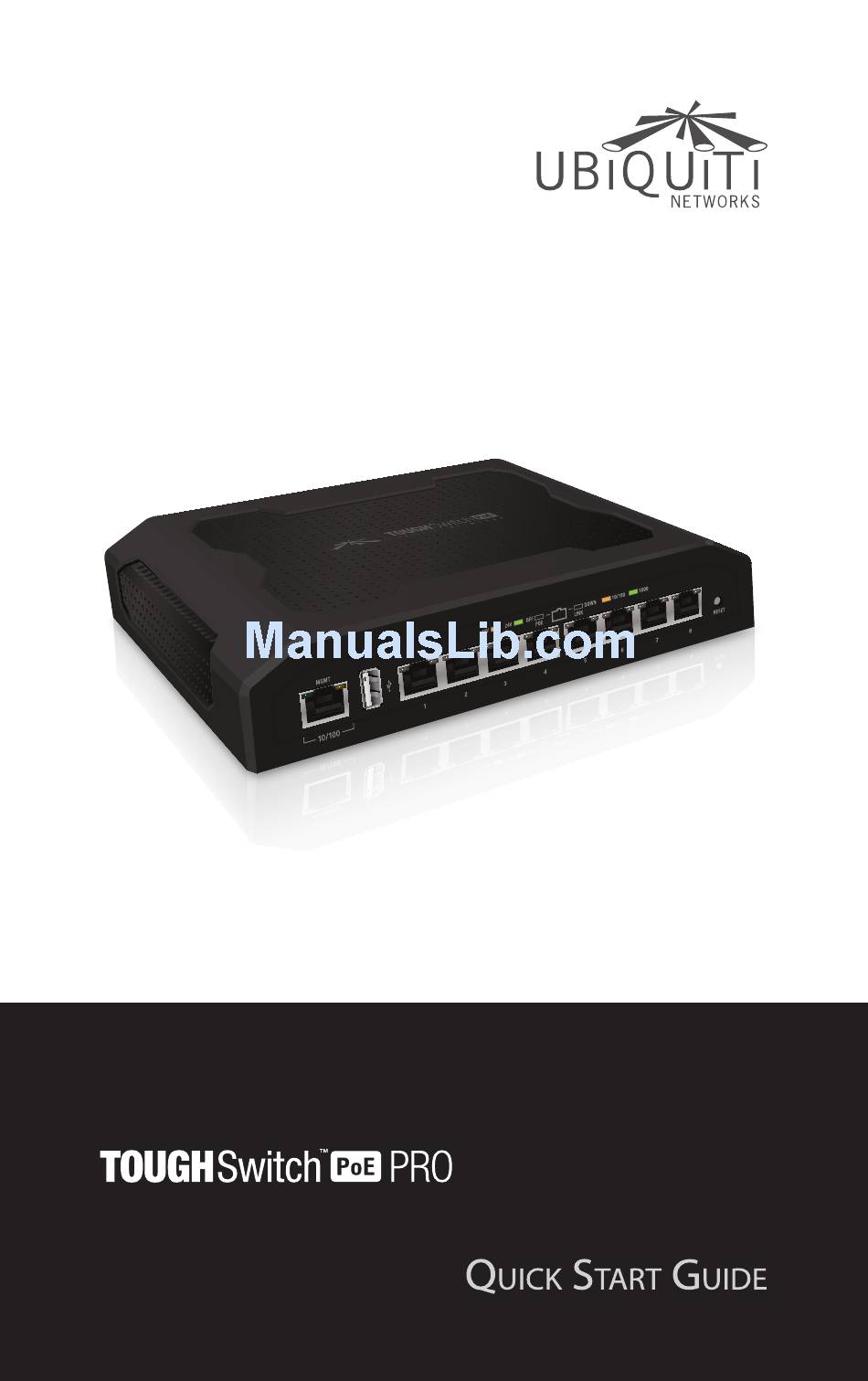

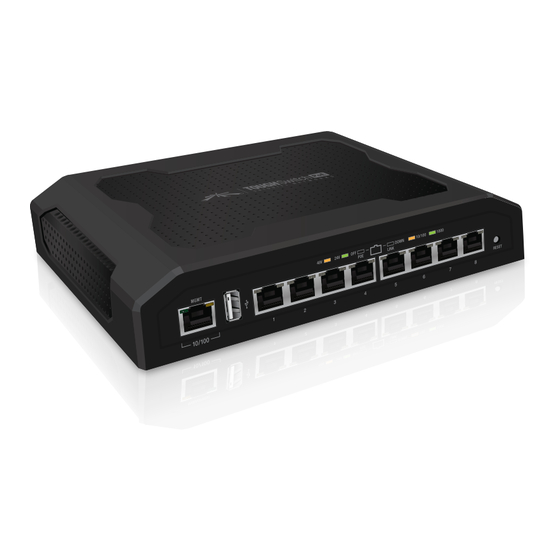

- Page 1 8-Port Power over Ethernet Managed Switch PRO Model: TS-8-PRO...
-
Page 3: Package Contents
Introduction Introduction Thank you for purchasing the Ubiquiti Networks TOUGHSwitch ™ PoE PRO, model TS-8-PRO. It is part of the TOUGHSwitch series: Name Model Description TOUGHSwitch PoE TS-5-POE 5-port managed switch featuring 24V PoE TOUGHSwitch PoE PRO TS-8-PRO 8-port managed switch... -
Page 4: Back Panel
TOUGHSwitch PoE PRO Quick Start Guide ™ Hardware Back Panel Ventilation Holes Power Note: There are additional ventilation holes on the top and sides of the TOUGHSwitch. Front Panel Ports Management Reset Interface Description 10/100 Mbps port for management. Traffic between the Management port and numbered ports will Management be limited to 10/100 Mbps and, under heavy... -
Page 5: Front Panel Leds
Hardware Front Panel LEDs Power/Link/Act Speed/Link/Act State Status No power After bootup, the LED indicates power. After an initial link is established, the LED indicates a 10/100 Mbps connection. If the Power/ Amber link terminates, the LED turns Link/Act off until a link is re-established. If the unit reboots, the LED will again indicate power until a link is established. -
Page 6: Hardware Installation
TOUGHSwitch PoE PRO Quick Start Guide ™ Hardware Installation Place the TOUGHSwitch on a bench top or other flat surface. Note: Keep 20 mm of clearance next to the ventilation holes for adequate airflow. Connecting Power 1. Connect the Power Cord to the Power port of the TOUGHSwitch. 2. -
Page 7: Connecting Ethernet
Hardware Installation Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch. Note: PoE is disabled by default on all numbered ports and is not available on the Management port. -
Page 8: Accessing The Configuration Interface
TOUGHSwitch PoE PRO Quick Start Guide ™ Accessing the Configuration Interface Connect to the Configuration Interface by performing the following steps: 1. Ensure that your computer (or other host machine) is connected to the Management port on the TOUGHSwitch. Note: By default, you can configure the TOUGHSwitch via any port;... -
Page 9: Specifications
Specifications Specifications TOUGHSwitch PoE PRO Dimensions 210 x 185 x 41 mm Weight 1.24 kg Power Input 110-120VAC / 210-230VAC Max. Power Consumption 150 W PoE Out Voltage Range 45-48VDC / 22-24VDC Max. PoE Wattage Per Data Port ESD Rating 24 kV Air / 24 kV Contact PoE Method Passive... -
Page 10: Safety Notices
TOUGHSwitch PoE PRO Quick Start Guide ™ Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 11: General Warranty
Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid). -
Page 12: Industry Canada
TOUGHSwitch PoE PRO Quick Start Guide ™ Returns In the unlikely event a defect occurs, please work through the dealer or distributor from which this product was purchased. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. - Page 13 Compliance Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas provoquer d’interférences et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.
-
Page 14: Rohs/Weee Compliance Statement
TOUGHSwitch PoE PRO Quick Start Guide ™ RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. - Page 15 Compliance Français La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.
-
Page 16: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. - Page 17 Declaration of Conformity Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB...
- Page 18 Pour en savoir plus, rendez-vous sur www.ubnt.com/toughcable Italiano Si consiglia di proteggere le reti dagli ambienti e dagli attacchi ESD più invasivi con il cavo Ethernet schermato-di tipo industriale di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web www.ubnt.com/toughcable JL062212...
-
Page 20: Ubiquiti Networks Support
Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
