Package Contents

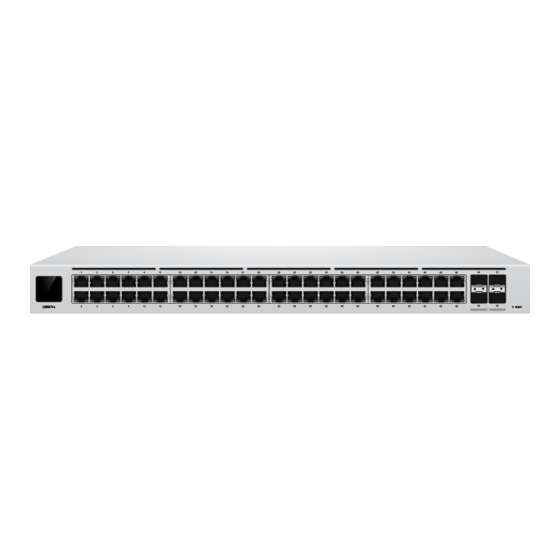

UniFi Switch
Mounting Screws (Qty. 4)
Rubber Feet (Qty. 4)
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.12.x (or newer), available at:
IMPORTANT:
We strongly recommend using UPS backup and power regulation
to prevent equipment damage due to stability issues with local AC power.
Hardware Overview
USW-Pro-48 Quick Start Guide
Rack-Mount Brackets (Qty. 2)
Cage Nuts (Qty. 4)
Bracket Screws (Qty. 8)
Power Cord
ui.com/download/unifi
Advertisement
Table of Contents
Related Manuals for Ubiquiti UniFi USW-Pro-48
Summary of Contents for Ubiquiti UniFi USW-Pro-48
- Page 1 USW-Pro-48 Quick Start Guide Package Contents UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Rubber Feet (Qty. 4) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v5.12.x (or newer), available at:...
- Page 2 USW-Pro-48 Quick Start Guide Touchscreen Display Bootup Animation Initializing. Steady White Factory defaults, waiting for adoption. Successfully adopted by a network and working Steady Blue properly. This indicates that you clicked Locate in the UniFi Location Animation Controller software. The software will also display the location of the device on the map.
-
Page 3: Installation Requirements
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the UniFi Switch itself should be housed inside a protective enclosure. -
Page 4: Connecting Power
USW-Pro-48 Quick Start Guide Connecting Power... - Page 5 USW-Pro-48 Quick Start Guide Connecting Ethernet Connecting SFP...
-
Page 6: Software Installation
USW-Pro-48 Quick Start Guide For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility Software Installation... - Page 7 Download and install the latest version of the UniFi Controller software at USW-Pro-48 Quick Start Guide ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.12.x or higher installed, go to the section, Adopting the UniFi Switch. After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface.
-
Page 8: Specifications
USW-Pro-48 Quick Start Guide 3. The display will turn blue to confirm that the UniFi Switch has been successfully adopted. Specifications USW-Pro-48 Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") Weight 4.00 kg (8.82 lb) With Rackmount Brackets 4.09 kg (9.02 lb) Interfaces Networking... -
Page 9: Electrical Safety Information
WARNING: Do not use this product in location that can be submerged by water. USW-Pro-48 Quick Start Guide WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. -
Page 10: Weee Compliance Statement
CE marking on this product represents the product is in compliance with all directives that are USW-Pro-48 Quick Start Guide applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
