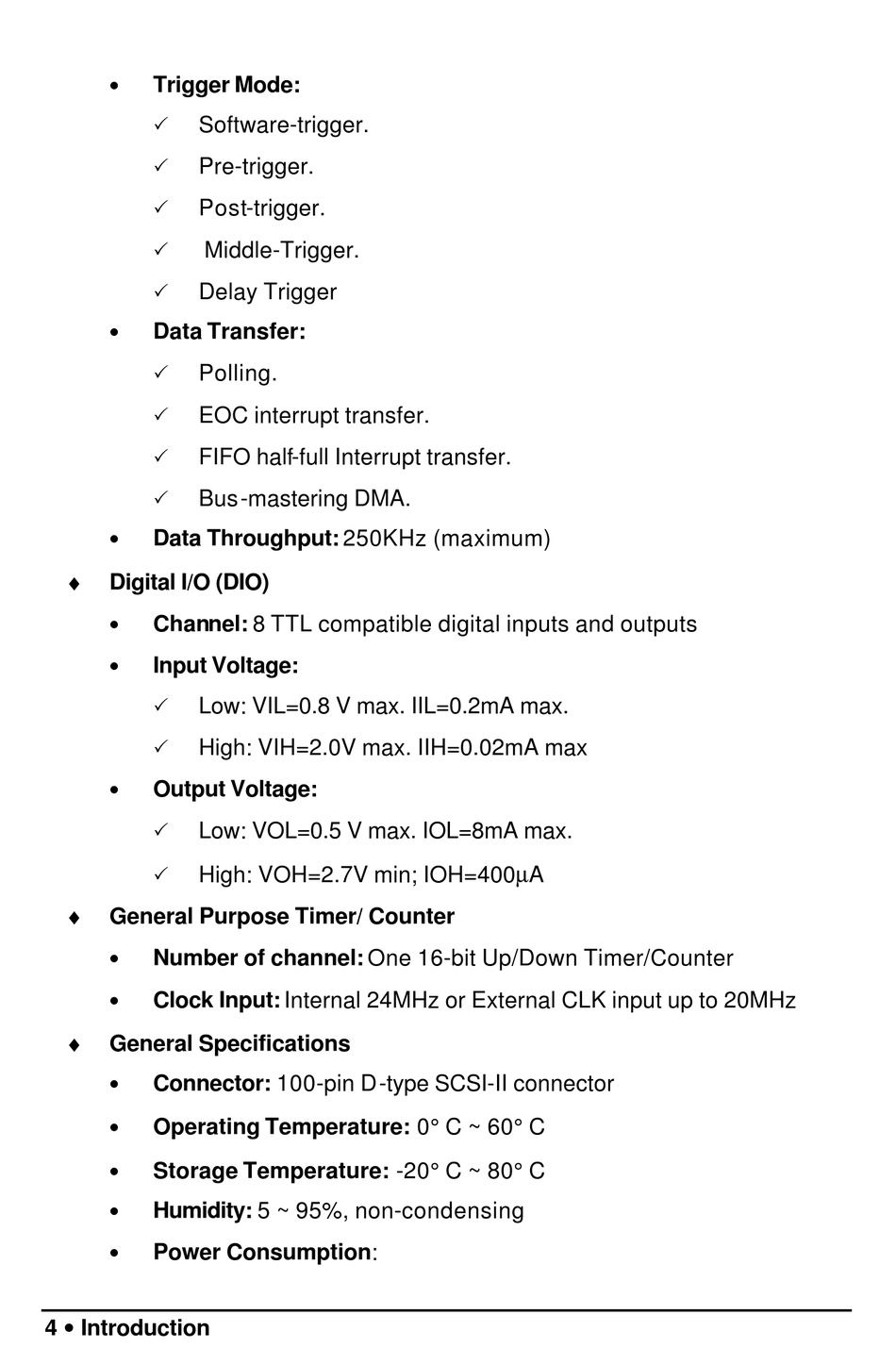

Trigger Mode:
P
Software-trigger.
P
Pre-trigger.
P
Post-trigger.
P
Middle-Trigger.
P
Delay Trigger
•
Data Transfer:
P
Polling.
P
EOC interrupt transfer.
P
FIFO half-full Interrupt transfer.
P
Bus-mastering DMA.
•
Data Throughput: 250KHz (maximum)
♦
Digital I/O (DIO)
•
Channel: 8 TTL compatible digital inputs and outputs
•
Input Voltage:
P
Low: VIL=0.8 V max. IIL=0.2mA max.
P
High: VIH=2.0V max. IIH=0.02mA max
•
Output Voltage:
P
Low: VOL=0.5 V max. IOL=8mA max.
P
High: VOH=2.7V min; IOH=400µA
♦
General Purpose Timer/ Counter
•
Number of channel: One 16-bit Up/Down Timer/Counter
•
Clock Input: Internal 24MHz or External CLK input up to 20MHz
♦
General Specifications
•
Connector: 100-pin D-type SCSI-II connector
•
Operating Temperature: 0° C ~ 60° C
•
Storage Temperature: -20° C ~ 80° C
•
Humidity: 5 ~ 95%, non-condensing
•
Power Consumption:
