1-3 Installing the Camera

Ceiling Mount
Camera
1.
Attach Drop
Prevention Wire
to this hook.
Drop Prevention
Wire
2.
Locking Screw
3.
Camera Clamping
Bracket

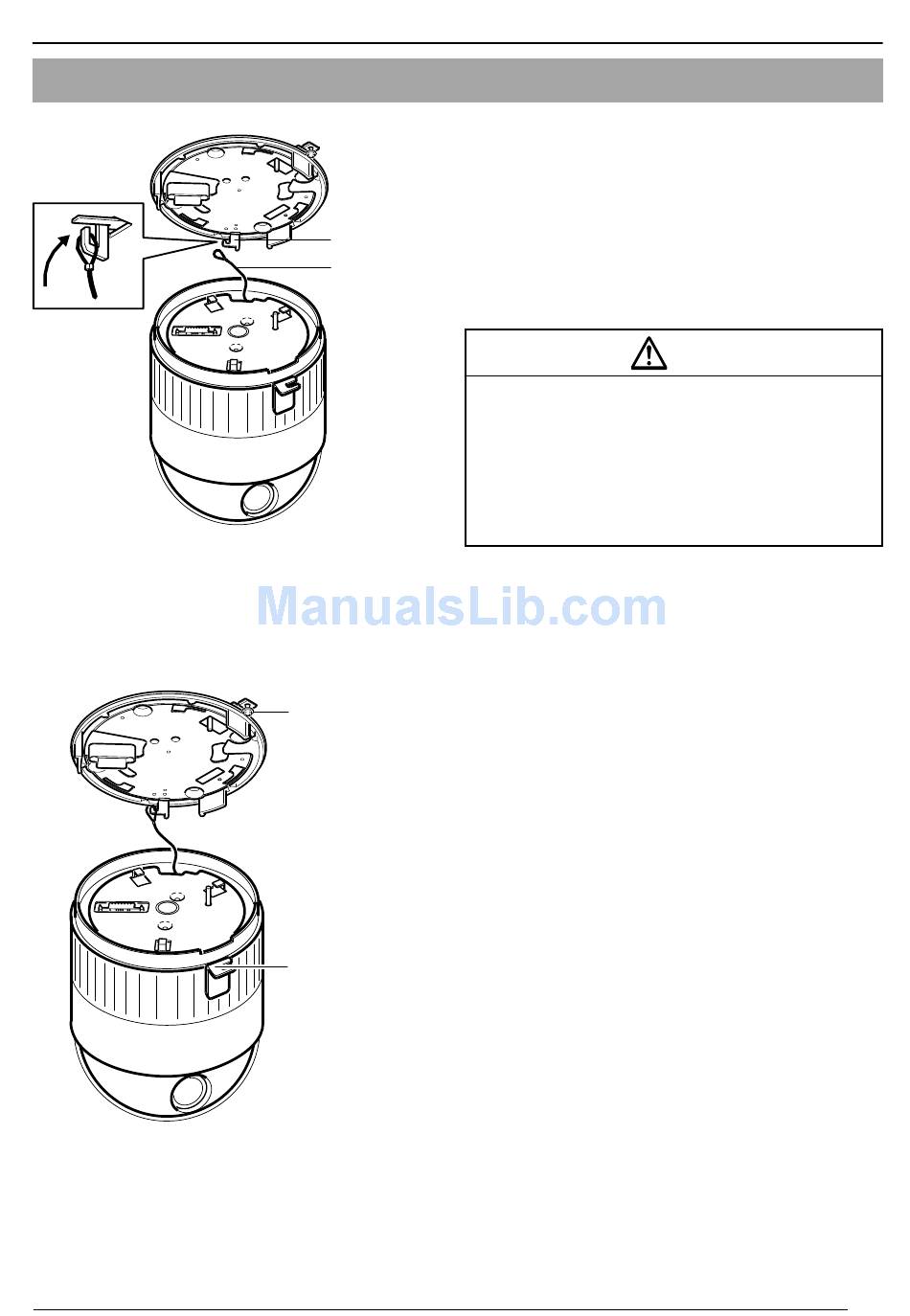

Attach the safety wire to prevent the
camera from falling down
As shown in the diagram, pull out the safety
wire from the camera and hang it to the safety
wire fastening hook on the ceiling mount.
Be sure to connect the safety wire to prevent
the camera from falling down.
• Do not connect cameras other than VN-
C655 to the ceiling mount. Doing so may
cause the camera to malfunction.
• Be sure to connect the safety wire.
Otherwise, the camera may fall to the
ground.
Check that the locking screw is loosened
The camera cannot be properly installed if the
locking screw of the ceiling mount is not
loosened.
Fit the camera to the ceiling mount
Check the position of the camera clamping
bracket and that of the locking screw, and fit
the camera to the Ceiling Mount.
Cautions
