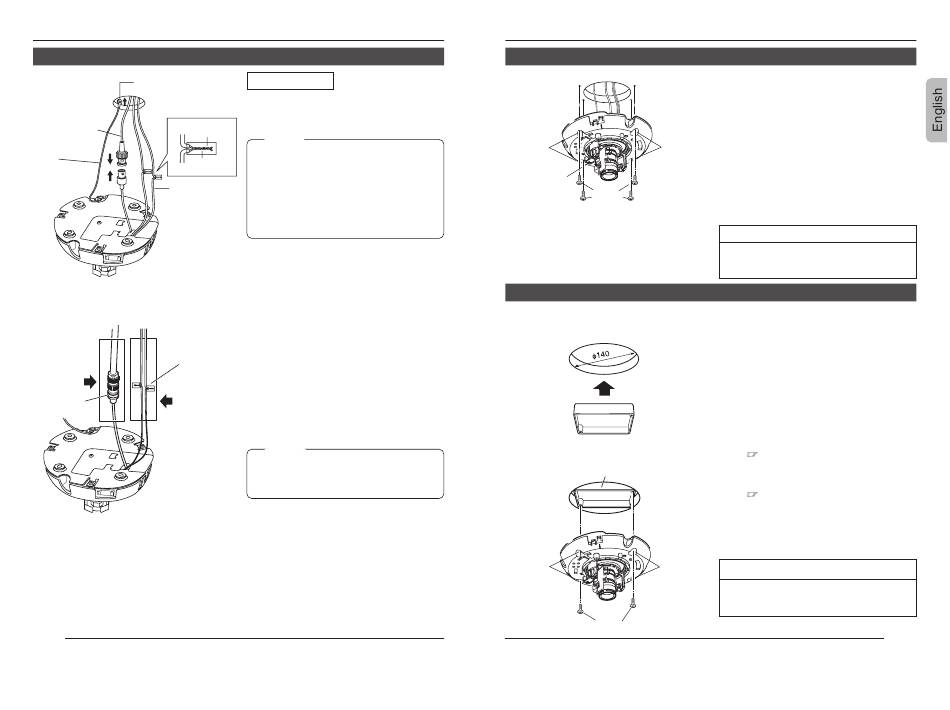

Installation and connection
Mounting the Camera to the Ceiling (continued)
2.
Attach to ceiling slab
1.
Solder or
Video signal
crimp
cable
Safety
Insulation
cable
tape
3.
Power supply cable
4.
Power
supply
cable
connection
Wrap with
tape
BNC
Wrap with
tape
connector
E-12
Installation
1.
Connect the power supply cable.
Connect the cable protruding from the
ceiling to the power supply cable.
MEMO
The power supply cable uses materials
similar to those of machinery wiring, so
wrap the cable with insulation tape to
prevent it from becoming damaged when
mounting the camera.
Use durable wiring for the power supply
cable.
2.
Attach the safety cable to the ceiling
slab. (Safety cable not included)
Attach the safety cable that has already
been attached to the camera to the
ceiling slab or channel.
Make sure that the wire is attached
securely.
3.
Connect the video signal cable.
4.
Wrap insulation tape around cables.
As shown in the diagram to the left,
wrap insulation tape around the power
supply cable connection and BNC
connector. Insert the cables into the
hole in the ceiling.
MEMO
Wrapping the wires with insulation tape
improves handling as well as reducing
interference.
Mounting
Mounting
holes
holes
5.
Horizontal
Lock screw
Screws
6.

When installing the Dome camera to the electrical box

The camera can be mounted directly onto an electrical box.
1.
2.
4inch square electrical box
Mounting
Mounting
holes
holes
5.
Screws
5.
Point the camera in the direction you
wish to capture.
Point the camera so that the Horizontal
Lock screw is facing the direction you wish
to capture. The camera can be adjusted
±60° horizontally to either side of the
Horizontal Lock screw.
6.
Mount the camera to the ceiling.
Use M4 screws/bolts or wood screws
(φ4.1mm) to secure the camera in four
places when mounting to the ceiling or wall.
CAUTION:
Tighten all screws securely. Otherwise the
camera may come loose and fall.
1.
Open a hole in the ceiling.
Open a φ140mm hole in the ceiling.
2.
Mount the electrical box.
The camera can be mounted on a
4-inch square electrical box.
For instructions on mounting the
electrical box, ask your dealer.
3.
Follow steps 2 to 3 of "Mounting the
Camera to the Ceiling (Preparations)".
(
page 11)
4.
Follow steps 1 to 6 of "Mounting the
Camera to the Ceiling (Installation)".
(
page 12)
5.
Mount the camera to the electrical
box.
Secure the camera to the electrical box
using two mounting holes.
CAUTION:
Tighten all screws properly. Otherwise the
camera may come loose and fall.
E-13
