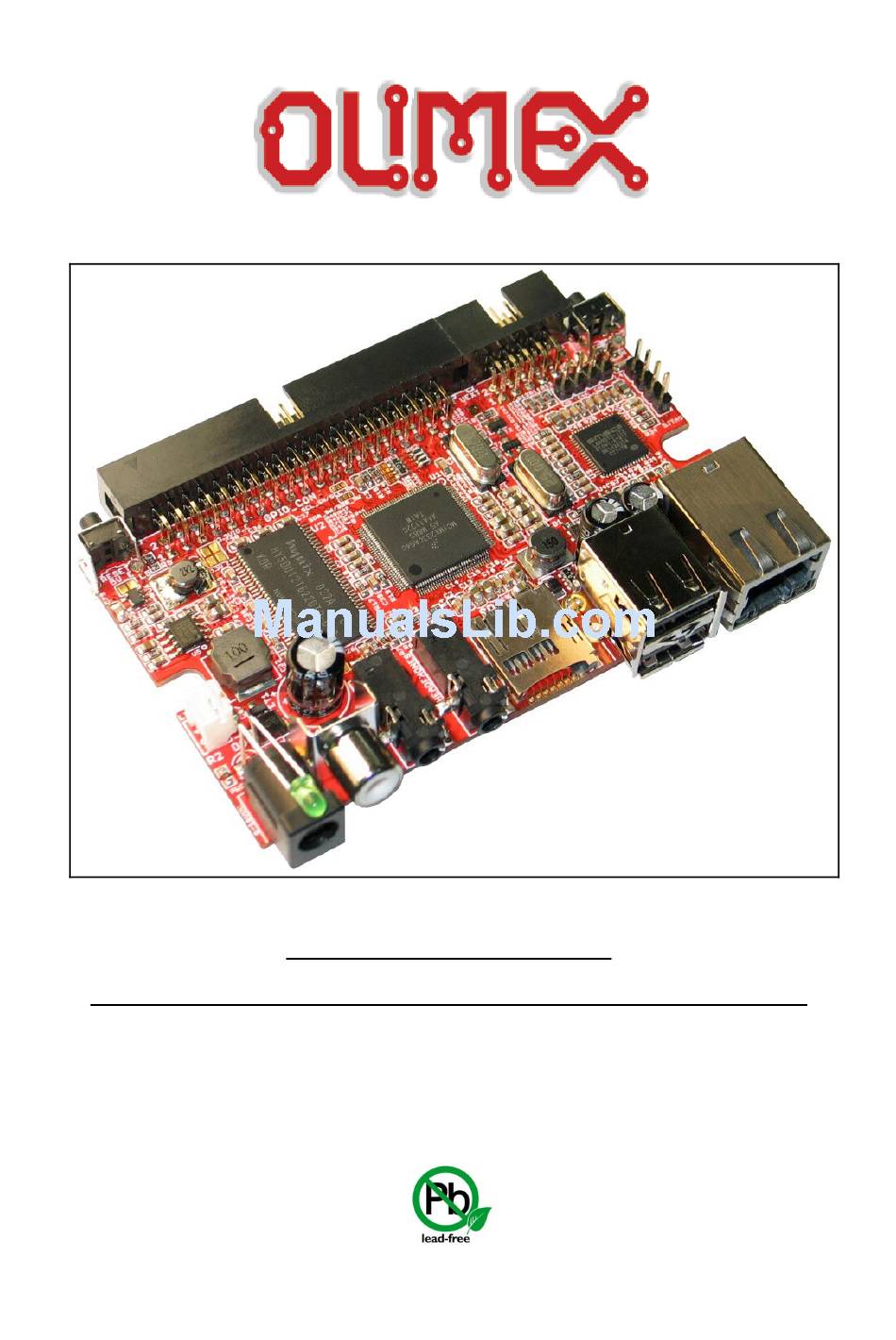

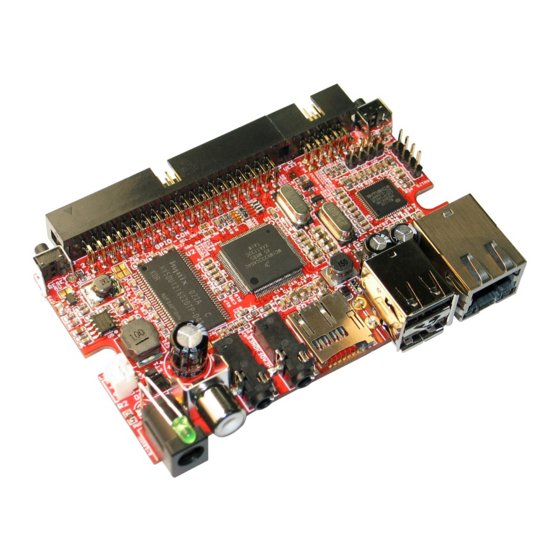

OLinuXino-MAXI
Open-source single-board Linux computer
USER'S MANUAL
Revision F, July 2012
Designed by OLIMEX Ltd, 2012
All boards produced by Olimex LTD are ROHS compliant
