Summary of Contents for OLIMEX OLIMEXINO-5510

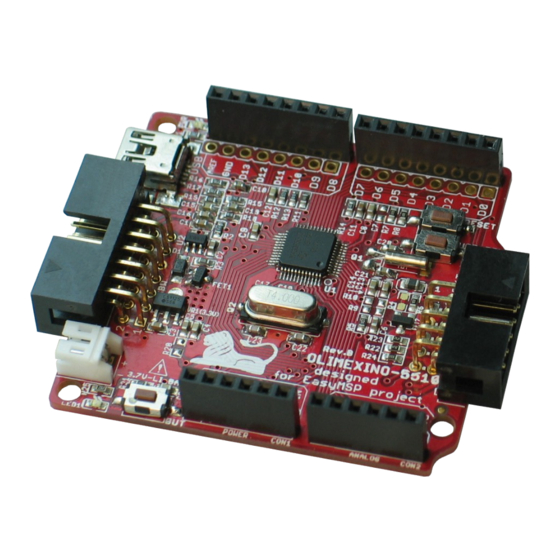

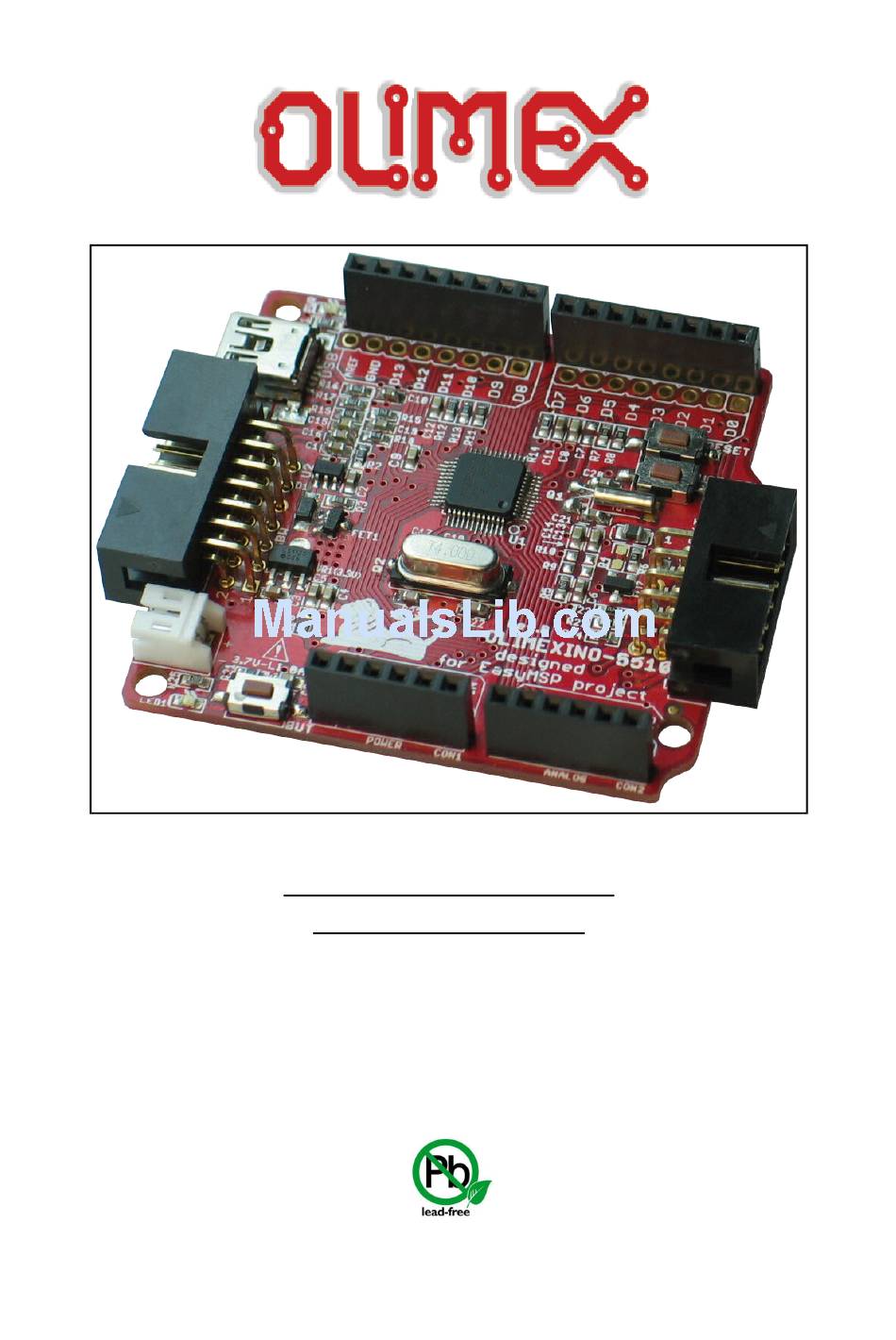

- Page 1 OLIMEXINO-5510 Development board USER’S MANUAL Document revision D, July 2015 Designed by OLIMEX Ltd, 2012 All boards produced by Olimex LTD are ROHS compliant...
-
Page 2: Disclaimer
This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product. -
Page 3: Table Of Contents
1.1 Features ..........................5 1.2 Target market and purpose of the board ................6 1.3 Organization .......................... 6 CHAPTER 2: SETTING UP THE OLIMEXINO-5510 BOARD ......7 2. Introduction to the chapter ....................7 2.1 Electrostatic warning ......................7 2.2 Hardware requirements ....................... 7 2.3 Powering the board and operating modes ................ - Page 4 OLIMEX© 2015 OLIMEXINO-5510 user's manual 6.6.7 HW_SCL/SW_SCL and HW_SDA/SW_SDA ............20 6.7 Additional hardware components ..................20 CHAPTER 7: BLOCK DIAGRAM AND MEMORY ........... 21 7. Introduction to the chapter ....................21 7.1 Processor block diagram ....................21 7.2 Physical memory map ......................22 CHAPTER 8: SCHEMATICS ..................
-
Page 5: Chapter 1: Overview
Thank you for choosing the OLIMEXINO-5510 development board from Olimex! This document provides a user’s guide for the Olimex OLIMEXINO-5510 board. As an overview, this chapter gives the scope of this document and lists the board’s features. The document’s organization is then detailed. -
Page 6: Target Market And Purpose Of The Board
– Chapter 2 provides a guide for quickly setting up the board and software notes – Chapter 3 contains the general board diagram and layout – Chapter 4 describes the component that is the heart of the board: the OLIMEXINO-5510 microcontroller –... -
Page 7: Chapter 2: Setting Up The Olimexino-5510 Board
CHAPTER 2: SETTING UP THE OLIMEXINO-5510 BOARD 2. Introduction to the chapter This section helps you set up the OLIMEXINO-5510 development board for the first time. Please consider first the electrostatic warning to avoid damaging the board, then discover the hardware and software required to operate the board. -
Page 8: Powering The Board And Operating Modes
- UEXT expansion boards All OLIMEX boards which names start with MOD, are compatible with the UEXT interface. Notice that there is multiplexing between the Arduino platform connector (for the shields) and the UEXT. You can't use two devices with SPI communication at the same time. -
Page 9: Easymsp And Energia
OLIMEXINO-5510 user's manual 2.5 EasyMSP and Energia OLIMEXINO-5510 is intended to work with Energia - an Arduino-like IDE for MSP430. The community is working on adding full support for Energia. At the time of writing this manual such support isn't fully added but it is on the way. When such support is implemented there will be software examples below in Energia format. -
Page 10: Chapter 3: Olimexino-5510 Board Description
OLIMEX© 2015 OLIMEXINO-5510 user's manual CHAPTER 3: OLIMEXINO-5510 BOARD DESCRIPTION 3. Introduction to the chapter Here you get acquainted with the main parts of the board. Note the names used on the board might differ from the names used below to describe them. For the actual names check the OLIMEXINO- 5510 board itself. -
Page 11: Layout (Bottom View)
OLIMEX© 2015 OLIMEXINO-5510 user's manual 3.2 Layout (bottom view) Page 11 of 28... -
Page 12: Chapter 4: The Msp430F5510 Microcontroller
OLIMEXINO-5510 user's manual CHAPTER 4: THE MSP430F5510 MICROCONTROLLER 4. Introduction to the chapter In this chapter is located the information about the heart of OLIMEXINO-5510 – its microcontroller MSP430F5510. The information is a modified version of the datasheet provided by its manufacturers. - Page 13 OLIMEX© 2015 OLIMEXINO-5510 user's manual - USCI_A0 and USCI_A1 Each Supporting: - Enhanced UART Supporting Auto-Baudrate Detection - IrDA Encoder and Decoder - Synchronous SPI - USCI_B0 and USCI_B1 Each Supporting: - I2CTM - Synchronous SPI Full-Speed Universal Serial Bus (USB) ...
-
Page 14: Chapter 5: Control Circuity
Q2 – 4 MHz quartz crystal is connected to pins 45 and 46 of the MSP430F5510 processor. 5.3 Power supply circuit The power supply circuit of OLIMEXINO-5510 allows powering via two sources – from the miniUSB (the device will draw it's required current automatically, however ensure the USB port is standard compatible and can provide at least 1A of current) or from the Li-Po connector if you have 3.7V battery. -
Page 15: Chapter 6: Connectors And Pinout
*The information lines can be switched via the SMD jumpers TI_RST/OLI_RST and TI_TST/OLI_TST. This might be required for different programmers. If you use Texas Instruments programmer switch them to TI_RST and TI_STS. If using Olimex programmer switch to OLI_RST and OLI_TST. By default they are in Olimex position. -
Page 16: Uext Connector
OLIMEX© 2015 OLIMEXINO-5510 user's manual 6.2 UEXT connector OLIMEXINO-5510 board has a UEXT connector and can interface Olimex's UEXT expansion modules. For more information on UEXT please visit: http://www.olimex.com/dev/OTHER/UEXT.pdf UEXT connector Pin # Signal Name +3.3V D1(TXD) D0(RXD) SW_SCL/NC* SW_SDA/NC*... -
Page 17: Arduino Shield Platform Connectors
OLIMEX© 2015 OLIMEXINO-5510 user's manual 6.3 Arduino shield platform connectors The pad names are written on the board and the names are above the corresponding pads. Arduino shield POWER – CON1 ANALOG – CON2 Pad name [Name], Processor pin# Pad name [Name], Processor pin#... -
Page 18: Mini Usb
OLIMEX© 2015 OLIMEXINO-5510 user's manual 6.4 Mini USB This connector can be used to program the board (as an alternative to using a programmer tool). Make sure to enter bootloader mode and use the mini USB to establish connection between the board and the personal computer. -
Page 19: Jumper Description
OLIMEX© 2015 OLIMEXINO-5510 user's manual 6.6 Jumper description Please note that the jumpers on the board are ONLY SMD type. For setting the SMD jumpers please consider that if you feel insecure of your soldering/cutting technique it is better not to try to adjust those jumpers. -
Page 20: Hw_Scl/Sw_Scl And Hw_Sda/Sw_Sda
The default position is set for software SPI – SW_SCL closed + SW_SDA closed. 6.7 Additional hardware components The components below are mounted on OLIMEXINO-5510 but are not discussed above. They are listed here for completeness: Reset button – used for hardware reset of the board BUT –... -
Page 21: Chapter 7: Block Diagram And Memory
OLIMEX© 2015 OLIMEXINO-5510 user's manual CHAPTER 7: BLOCK DIAGRAM AND MEMORY 7. Introduction to the chapter On the next page you can find a memory map for this family of processors. It is strongly recommended to refer to the original datasheet released by NXP for one of higher quality. -
Page 22: Physical Memory Map
7.2 Physical memory map This is the memory map diagram from the original datasheet of MSP430F5510. You may use it if you need to adjust the configuration file in Olimex MSP programmer software (to add the device). Page 22 of 28... -
Page 23: Chapter 8: Schematics
In this chapter you would find the schematics describing logically and physically OLIMEXINO- 5510. 8.1 Eagle schematic OLIMEXINO-5510's schematics are shown for reference. You can also find them on the web page for OLIMEXINO-5510 at our site: https://www.olimex.com/Products/Duino/MSP430/OLIMEXINO-5510/. They are located in HARDWARE section. - Page 24 D11(MOSI) UEXT-8 BH10R D13(SCK) UEXT-9 BH10R #UEXT_CS 0603(GREEN) 1M/1% UEXT-10 BH10R VBAT 330R 100nF RESET 470k/1% OLIMEXINO-5510_Rev_B 100nF P_OUT/P_IN 330R BAT_SENSE_E T 11 07A-6_3.8_2 .5 P_O UT :Cl ose;P_IN:Open Designed by OLIMEX LTD. 2012 BH14R http://www.olimex.com/dev/ Page 24 of 28...
-
Page 25: Physical Dimensions
OLIMEX© 2015 OLIMEXINO-5510 user's manual 8.2 Physical dimensions Note that all dimensions are in mils. The three highest elements on the board with same height are: JTAG/SBW connector – 340mil; UEXT connector – 340mil; Arduino shield connectors – 340mil. Page 25 of 28... -
Page 26: Chapter 9: Revision History And Support
OLIMEX© 2015 OLIMEXINO-5510 user's manual CHAPTER 9: REVISION HISTORY AND SUPPORT 9. Introduction to the chapter In this chapter you will find the current and the previous version of the document you are reading. Also the web-page for your device is listed. Be sure to check it after a purchase for the latest available updates and examples. -
Page 27: Useful Web Links And Purchase Codes
9.3 Useful web links and purchase codes The web page you can visit for more info on your device is https://www.olimex.com/Products/Duino/MSP430/OLIMEXINO-5510/ ORDER CODES: OLIMEXINO-5510 – OLIMEXINO-5510 featuring MSP430F5510 processor MSP430-JTAG-TINY-V2 – low cost fast USB JTAG and SWD tool suitable for programming and flash emulation: https://www.olimex.com/Products/MSP430/JTAG/MSP430-JTAG-TINY-V2/ MSP430-JTAG-ISO-V2 –... -
Page 28: Product Support
All goods are checked before they are sent out. In the unlikely event that goods are faulty, they must be returned, to OLIMEX at the address listed on your order invoice. OLIMEX will not accept goods that have clearly been used more than the amount needed to evaluate their functionality.
