LeMond Revolution 250202-2 Owner's Manual page 8

ASSEMBLY
WARNING: THE BODY ASSEMBLY WEIGHS 28LBS
!
THE BODY ASSEMBLY AND BE SURE TO SUPPORT THE ASSEMBLY PROPERLY WHILE INSTALLING
THE BASE ASSEMBLY. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PROPERTY
DAMAGE OR INJURY.
Note: Ensure that you have all the parts listed and illustrated above prior to beginning assembly.

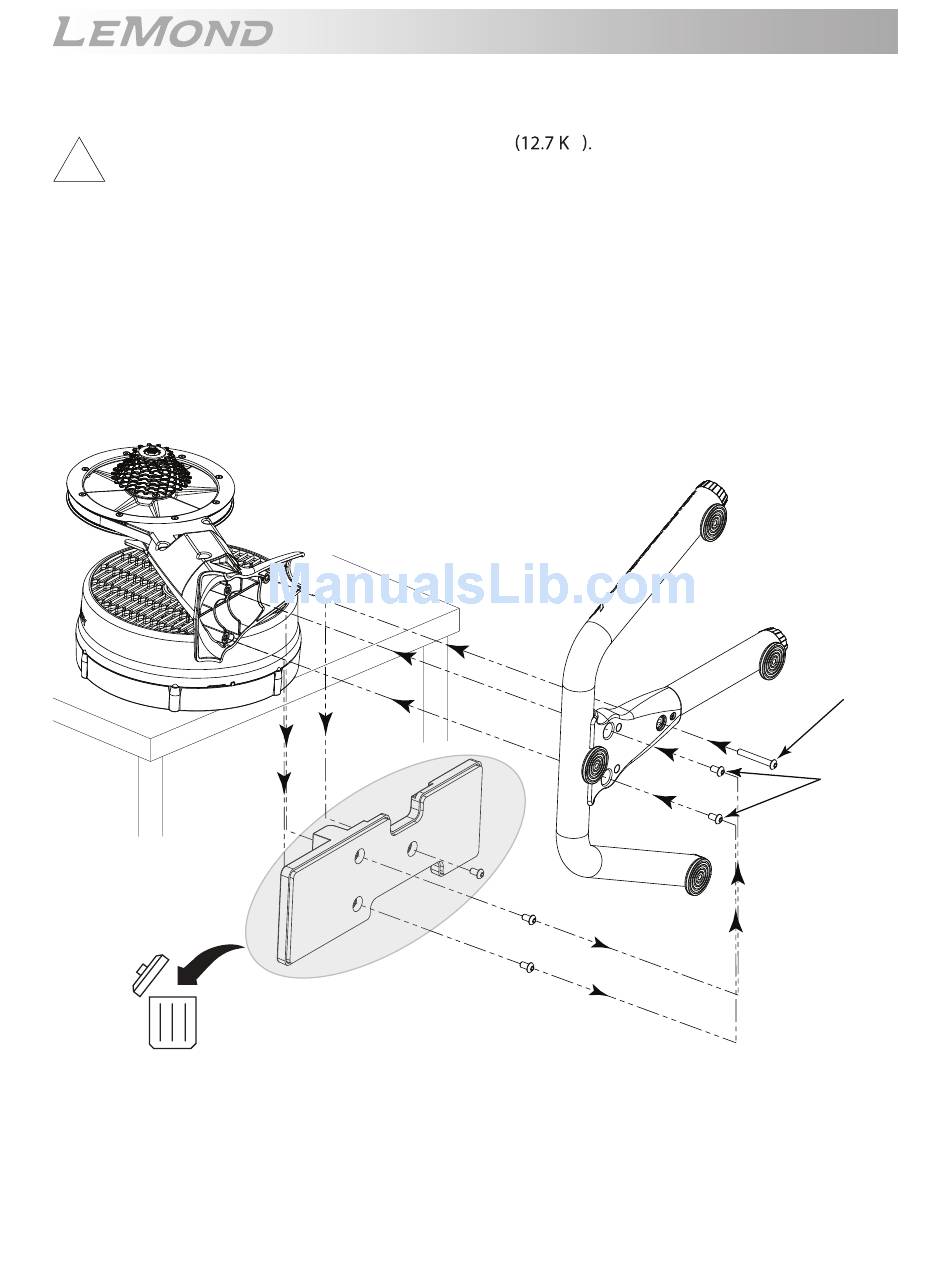

1. Place the body assembly fan-side down on the edge of a table with the belt wheel away from you
and the black shipping base overhanging the edge of the table. (Figure 1.2)
Note: The fan shroud should hang 1-2 inches over the table edge to allow full installation of the base.
2. Remove the shipping base and set two of the screws aside for use in the next step. Discard the
shipping base and the remaining screw. (Figure 1.2)
ASSEMBLY INSTRUCTIONS
G USE CAUTION WHEN HANDLING
60mm
15 mm
FIGURE 1.2
8
