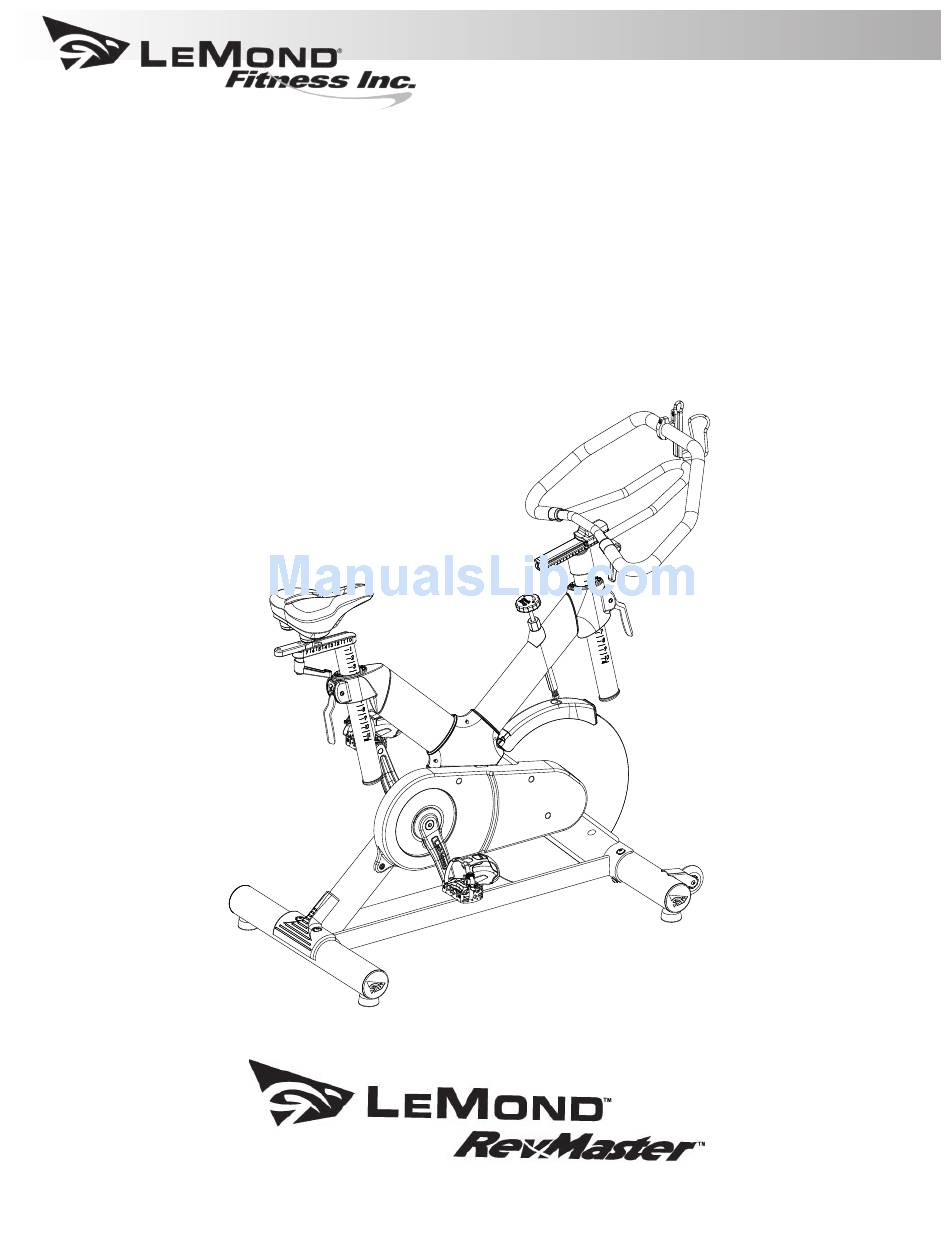

  • Page 1 O W N E R ’ S M A N UA L...
  • Page 2 LeMond® RevMaster™ Visit our website at www.LeMondfitness.com LeMond Fitness Inc. 15540 Woodinville-Redmond Road Suite A100 Woodinville, WA 98072 USA Telephone (+1) 425.482.6773 Fax: (+1) 425.482.6724 © 2007 LeMond Fitness Inc. LeMond and RevMaster are registered trademarks.
  • Page 3 CONGRATULATIONS! CONGRATULATIONS You have just become a valued LeMond fitness customer. Our team is committed to making your cycling experience fun and rewarding — offering you detailed product information, expert fitness advice, and direct customer support you can depend on. I want to thank-you for purchasing an exciting LeMond RevMaster indoor group cycle.
  • Page 4 RevMaster We are confident that you will love your new . From Greg and the whole LeMond Fitness team, we wish you a lifetime of good rides and great workouts.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS WARRANTY ..............6 SAFETY GUIDELINES .

  • Page 6: Warranty

    WARRANTY Warranty This is to certify that the LeMond® RevMaster™ exercise bike is warranted by LeMond Fitness Inc. to be free of all defects in materials and workmanship. This warranty does not apply to any defect caused by negligence, misuse, accident, alteration, improper maintenance, or an “act of God. ”...

  • Page 7: Safety Guidelines

    Wait for the flywheel to coast to a stop. If you want to quickly stop the flywheel, apply firm down- ward pressure to the brake knob. Do not attempt to dismount the RevMaster unless the pedals and the flywheel are at a complete stop.
  • Page 8 (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS Your Serial Number: ____________________________________________________________________________________ Your LeMond Fitness: Dealer: _____________________________________________________________________________ Phone: _____________________________________________________________________________ Your comments and suggestions are welcome. Congratulations, and thank you for buying the RevMaster.

  • Page 9: Assembly And Installation Instructions

    Rear Stabilizer LeMond RevMaster ASSEMBLY AND INSTALLATION Before leaving the manufacturing facility, your LeMond® RevMaster® exercise bike was thoroughly inspected and tested for proper operation. To minimize shipping damage, careful attention was given to making your bike ready for shipment.
  • Page 10 ASSEMBLY INSTRUCTIONS DELIVERY Your LeMond RevMaster will arrive packed in 1 carton. Upon arrival fully inspect the carton for damage. Point out any damage to the delivery person and have the delivery person record the damage on the delivery paperwork. Contact the Customer Service Department at (425) 482-6773 to report any damage.
  • Page 11 ASSEMBLY INSTRUCTIONS REMOVE ThE BIkE AND COMpONENTS FROM ThE ShIppING CARTON Move the box to the desired location. Ensure that the carton is standing upright and remove the strapping material. Pull the cardboard edge out along the bottom of the box to remove the staples. Lift the top of the box up and set aside.
  • Page 12 ASSEMBLY INSTRUCTIONS Position the seat assembly atop the seat track on the seat post. Lightly grease the end of the threads on an adjustment lever. Loosely thread the adjustment lever through the brass washer, through the hole in the seat track, and into the seat assembly. Slide the seat to the desired position and tighten the adjustment lever.

  • Page 13: Guidelines For Safe Operation

    Although all equipment manufactured by LeMond® Fitness, Inc. has been thoroughly inspected by the manufacturing facility prior to shipment, proper installation and regular maintenance are...

  • Page 14: Operating Instructions

    Your First Workout On The LeMond® RevMaster™ Adjusting the fit Take a moment to learn how to properly fit your RevMaster to your body; it will make your workouts a more pleasant and safer experience. The RevMaster provides more seat and handlebar adjustability than any other indoor group cycle, and each adjustment is numbered so you can quickly return the adjust- ments to your specific settings.
  • Page 15 OpERATING INSTRUCTIONS Note: There are two threaded holes on the seat assembly slider, to allow a greater range of forward/aft ad- justment. The seat adjustment lever can be attached to either. Taller users may want to use the front hole; shorter users may want to use the back hole. handlebar Adjustment: Adjusting the handlebar height Handlebar height is a matter of preference.

  • Page 16: General Exercise Guidelines

    GENERAL EXERCISE GUIDELINES BAsic OPeRAtiOn Now that you have established a riding position, take a few minutes to ride the bike and determine that your position is comfortable. Start pedaling at a slow pace with your toes and knees pointed directly forward.

  • Page 17: Flexibility Training

    GENERAL EXERCISE GUIDELINES fLeXiBiLitY tRAining* Achieving and maintaining an adequate range of motion should always be objectives of a comprehen- sive exercise program. The warm-up phase of your exercise session should include some type of light warm-up activity to increase both your heart rate and your body temperature, which is then followed by flexibility exercises that are specifically designed to stretch the musculature around your body’s major skeletal joints.

  • Page 18: Maintenance Instructions

    MAINTENANCE MAINTENANCE INSTRUCTIONS heLPfuL hints The safety level given by the design of this equipment can only be maintained when the equipment is regularly examined for damage and wear. Inoperable components should be replaced immediately or the equipment should be put out of use until it is repaired. Read all maintenance instructions thoroughly before beginning work.

  • Page 19: Maintenance Schedule

    MAINTENANCE MAintenAnce scheduLe PARt RecOMMended ActiOn fReQuencY cLeAneR LuBRicAnt Pedals Ensure that the pedals are tight Before each use N/A in crank arms; that all screws on pedals are tight; and that the pedal straps are not frayed Frame Wipe down Daily Soap &...

  • Page 20: Troubleshooting

    TROUBLEShOOTING TROUBLEShOOTING SYMpTOM: Seat or handlebar post move after locked into position. Locate smaller 3mm hex bolt at pivot point of cam handle and loosen 1 turn. Disengage 6mm hex bolt on other side from indicator plate and rotate one notch towards (+) sign. Tighten smaller 3mm hex bolt.
  • Page 21 Let oil soak into pad and reapply if needed until brake pad is thoroughly saturated. Reinstall fender assembly. SYMpTOM: Rocking or movement from RevMaster while in use. Using a 5mm hex wrench, check the attachment bolts on the front and rear stabilizers and make sure they are tight (4 bolts on each stabilizer).

  • Page 22: Specifications

    SpECIFICATIONS 46.0 in. (min) 42.0 in. 23.0 in. PhYsicAL diMensiOns: shipping carton dimensions: • Length: 42 in (106.7 cm) • Length: 39.5 in (100.3 cm) • Height: 46 in (116.8 cm) • Height: 37 in (94.0 cm) • Width: 23 in (58.4 cm) •...
  • Page 23 SpECIFICATIONS fRAMe: stRetch PAd: • Welded X Style frame with 4-way bolted • Foot-pad at base of rear stabilizer for stabilizers stretching • ED and powder coated finish seAt: • 22 inch wide base with large diameter ad- • Dual position seat slider for extended fore/ justable levelers aft adjustment fLYWheeL:...

  • Page 24: Exercise Logs

    Daily and Monthly Exercise Logs Week # Weekly Goals Date Distance Calories Time Comments Weekly Totals Week # Weekly Goals Date Distance Calories Time Comments Weekly Totals Week # Weekly Goals Date Distance Calories Time Comments Weekly Totals...
  • Page 25 MONTH Monthly Goals Week Distance Calories Time Monthly Totals MONTH Monthly Goals Week Distance Calories Time Monthly Totals MONTH Monthly Goals Week Distance Calories Time Monthly Totals...
  • Page 26 15540 Woodinville-Redmond Road Suite A100 Woodinville, WA 98072 USA www.LeMondfitness.com Telephone (+1) 425.482.6773 Fax: (+1) 425.482.6724 Document #300207, Rev -...
