LeMond Revolution 250202-2 Owner's Manual page 16

Install the Campagnolo® adapter onto the shaft and reinstall the 16mm hub nut. Tighten the nut to
7.
2.5 N m (22 in-lb). (Figure 4.1)
Note: In some cases the bearing inside the adaptor will come loose during installation. If the bearing moves,
be sure that the spacer between the bearings is still in place and push the bearing back into place by
pressing around the outside edge of the bearing.
Note: It may be necessary to turn the adaptor counterclockwise or press the clutch tabs down with your
Load the Campagnolo® cassette onto the adapter.
8.
Note:
tor in one orientation. However, it is possible to install them out of order. Before installing the lockring
make sure that the sprockets are in the correct order and the spacers are installed properly. Refer to the
manufacturers documentation if necessary.
5.
Thread the lockring onto the cassette and tighten to the speci ed torque.
Note: Make sure that the cassette spins freely counter-clockwise. If the cassette does not spin freely remove
the lockring, loosen the hub nut, check that the adaptor spacer is installed, and repeat steps 7-9 above
ensuring proper torque on all fasteners.

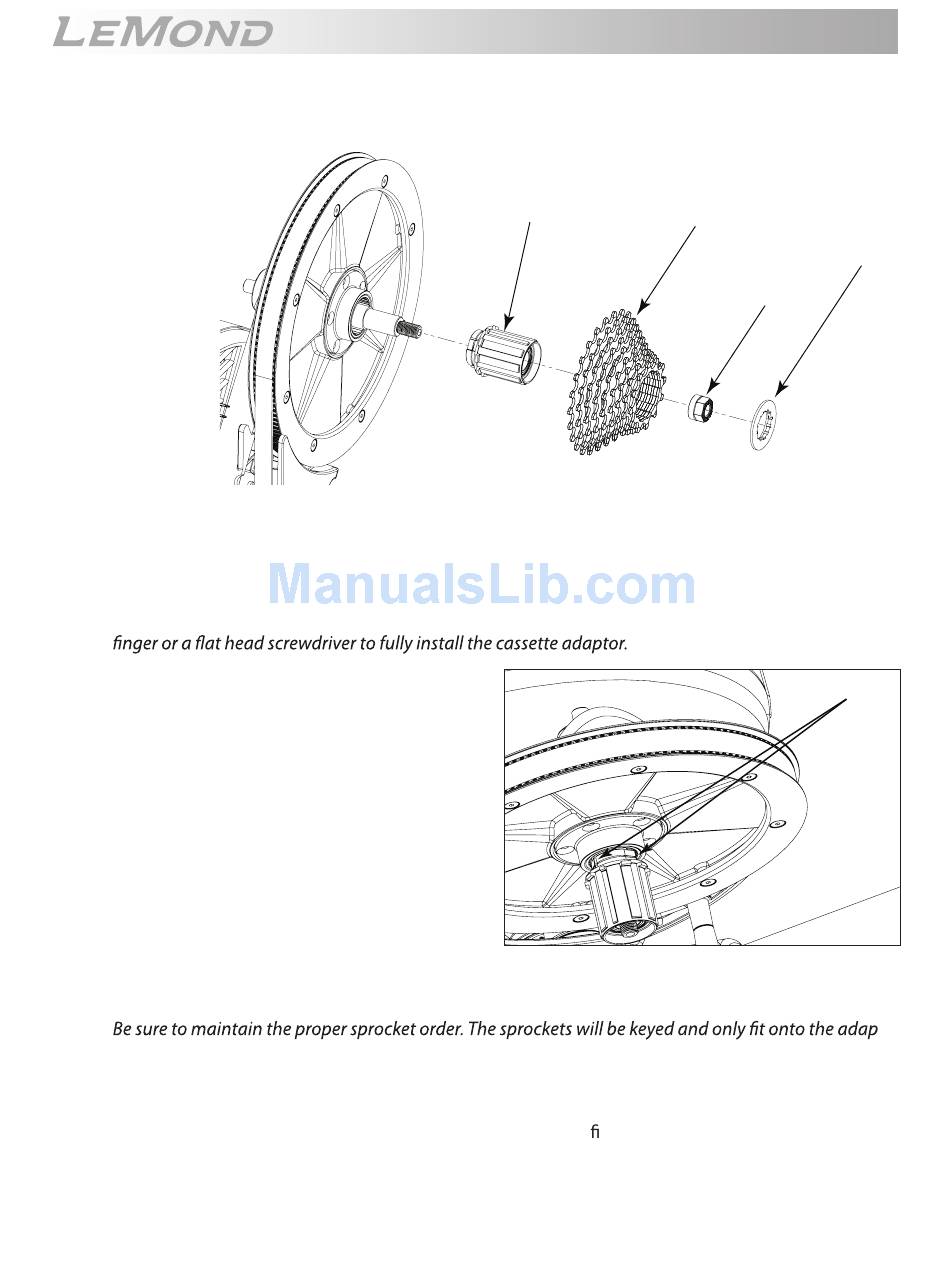

CASSETTE ADAPTER INSTALLATION
Cassette
Adaptor
Cassette
(Figure 4.4)
Cassette
Lockring
Hub Nut
FIGURE 4.1
Clutch
Tabs
FIGURE 4.4
-
16
