CASSETTE ADAPTER REMOVAL/INSTALLATION
We designed the Revolution to be compatible with both Shimano /SRAM and Campagnolo
components. However, the equipment ships from the factory con gured for a 8/9/10/11-Speed
Shimano /SRAM derailleur. If you need to convert the equipment for use with a Campagnolo
derailleur follow the instructions below.*
WARNING: IF YOU ARE UNCERTAIN ABOUT YOUR ABILITY TO PERFORM THE PROCEDURE
!
BELOW PLEASE CONTACT YOUR LOCAL BICYCLE MECHANIC. DAMAGE TO THE EQUIPMENT
WHILE PERFORMING THIS PROCEDURE MAY VOID YOUR WARRANTY.
:
REQUIRED TOOLS
Chain Whip
Shimano®/SRAM® Lockring Tool
Campagnolo® Lockring Tool
16mm Socket and Socket Wrench
Torque Wrench
:
REQUIRED PARTS
Campagnolo® Cassette
Campagnolo® Cassette Adapter
INSTRUCTIONS:
1. Remove the axle skewer from the
2. Using the chain whip and the Shimano® lockring tool remove the lockring on the cassette.
3. Remove the cassette rings from the cassette adapter. . (Figure 4.1)
4. With the cassette removed, use the 16mm socket to remove the hub nut from the shaft at the
center of the cassette adapter. (Figure 4.2)
(10 or 11-speed)
[LeMond P/N: 250126-2]
R
using caution to retain the spacer on the fan side.
EVOLUTION
1.8mm Spacer
*10-speed Shimano only
CASSETTE ADAPTER INSTALLATION
Cassette
Adaptor
Cassette
Hub Nut
Cassette
Lockring

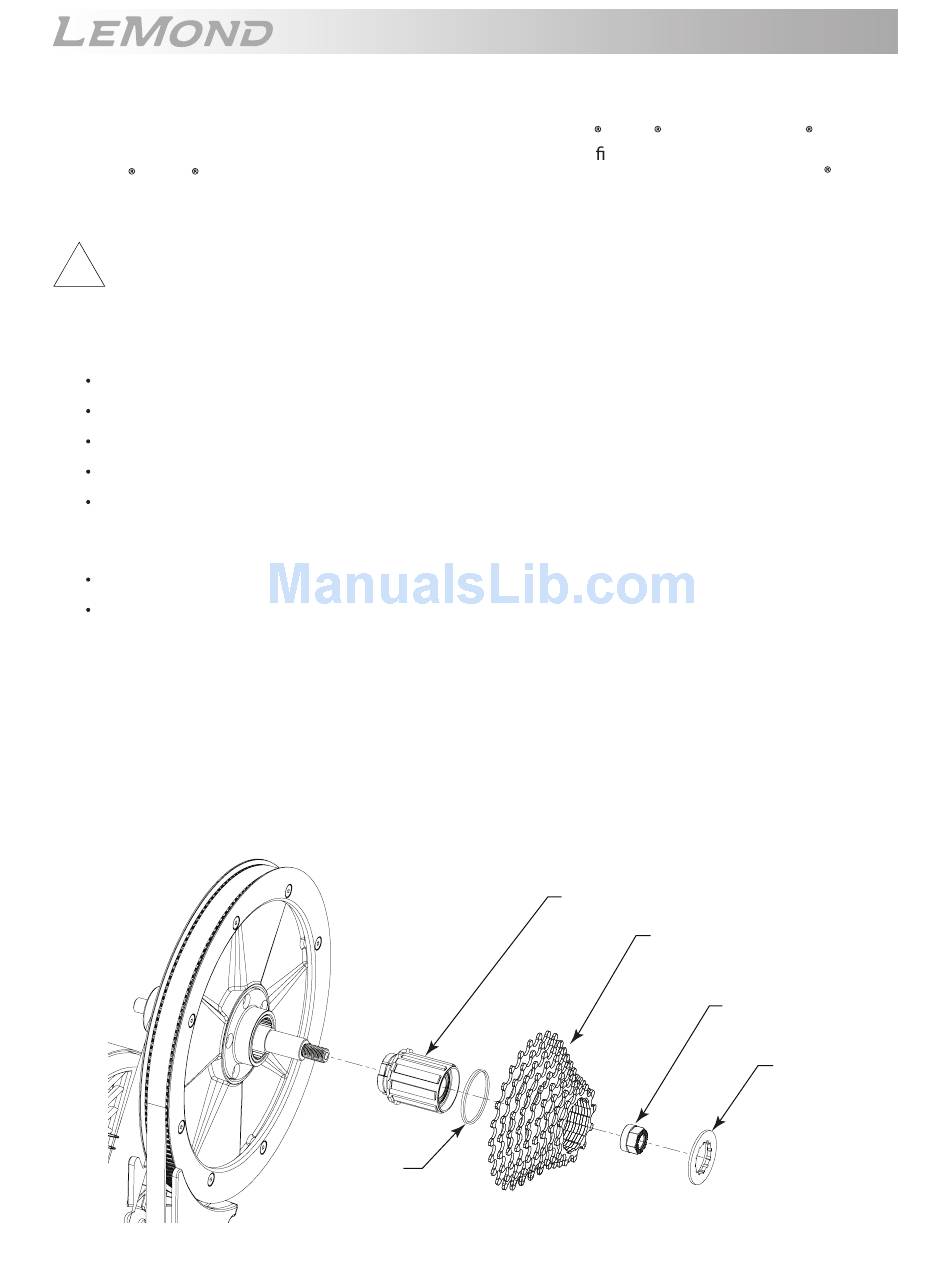

FIGURE 4.1
14
