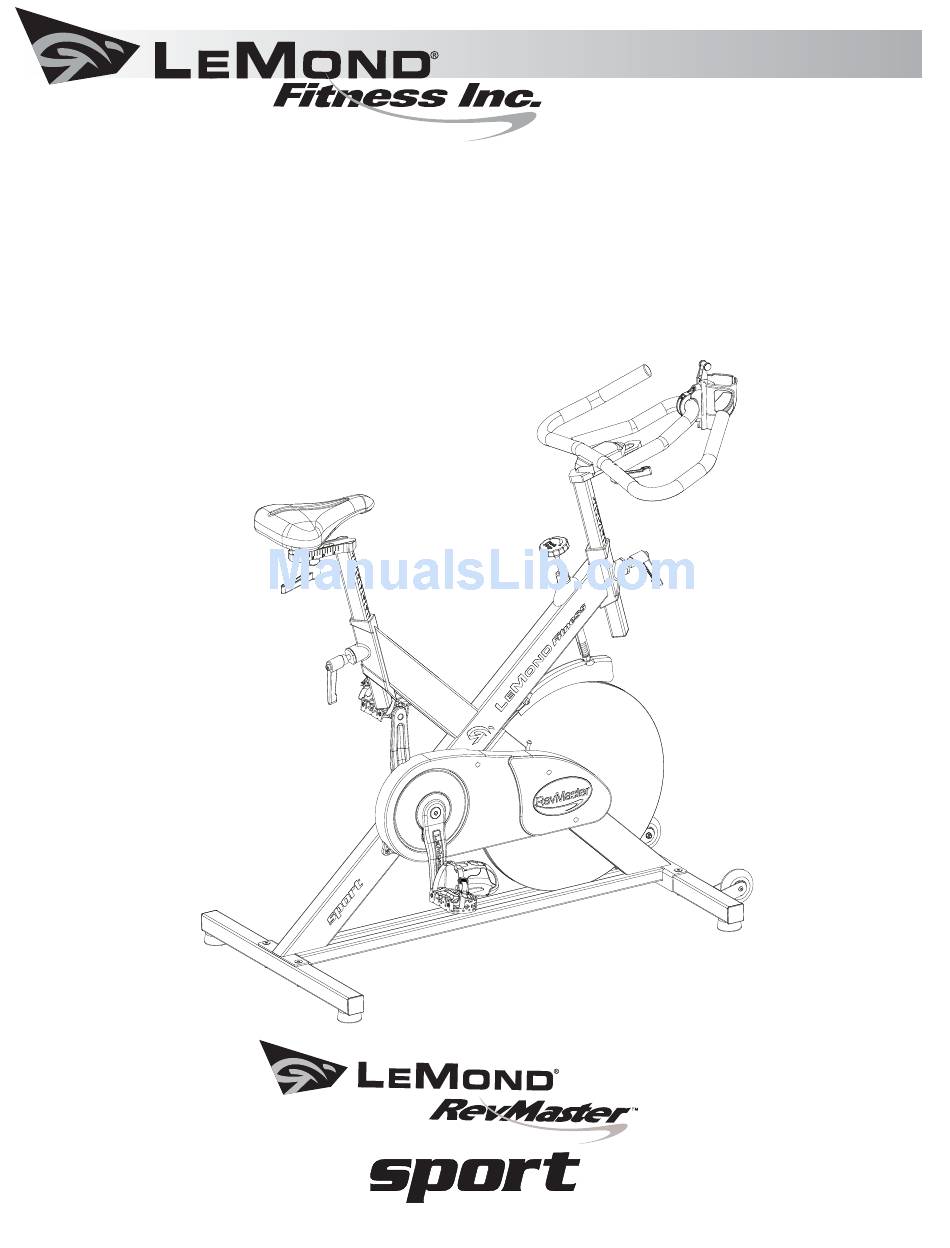

- Page 1 O W N E R ’ S M A N UA L...
- Page 2 Visit our website at www.LeMondfitness.com © 2008 LeMond Fitness Inc. LeMond and RevMaster are registered trademarks.
- Page 3 CONGRATULATIONS! CONGRATULATIONS RevMaster Sport RevMaster Sport RevMas- ter Sport RevMaster Sport RevMaster Sport RevMaster Sport RevMaster Sport Greater Comfort RevMaster Sport RevMaster Sport RevMaster Sport...
- Page 4 FEATURES FEATURES Exclusive Features RevMaster Sport RevMaster Sport RevMaster Sport...
- Page 5 TABLE OF CONTENTS...
-
Page 6: Warranty
WARRANTY WARRANTY Parts:... -
Page 7: Safety Guidelines
SAFETY GUIDELINES Attention! Be Alert! Your saftey is involved. WARNING... - Page 8 SAFETY GUIDELINES...
-
Page 9: Assembly And Installation
ASSEMBLY INSTRUCTIONS Water Bottle Holder Handlebars Seat Brake Knob/ Assembly Resistance Adjustment Handlebar Seat Post Post Adjustment Fender lever Flywheel Crank Belt Cover Transport Rear Wheels Stabilizer Front Stabilizer Pedal Leveler LeMond RevMaster Sport ASSEMBLY AND INSTALLATION... - Page 10 ASSEMBLY INSTRUCTIONS DELIVERY [not to scale]...
- Page 11 ASSEMBLY INSTRUCTIONS Assembly Parts REMOVE THE BIKE AND COMPONENTS FROM THE SHIPPING CARTON ASSEMBLY Note: It is not necessary to remove the bike from the foam shipping cradle before assembly.
- Page 12 ASSEMBLY INSTRUCTIONS Note: The handle on the adjustment lever has a ratchet function. Once you have tightened a lever, pull out on the handle and rotate it so it does not stick out. Release the handle to lock it into place. Pull Out and Rotate Note: The brass washer must be installed so the handlebar can be...
-
Page 13: Guidelines For Safe Operation
GUIDELINES FOR SAFE OPERATION GUIDELINES FOR SAFE OPERATION... -
Page 14: Adjusting The Fit
OPERATING INSTRUCTIONS INSTRUCTIONS FOR FIRST-TIME USERS ADJUSTING THE FIT Seat Adjustment: Adjusting the Seat’s Height Adjusting the Seat’s Forward/Aft Position Note: There are two threaded holes on the seat assembly slider, to allow a greater range of forward/aft ad-... - Page 15 OPERATING INSTRUCTIONS justment. The seat adjustment lever can be attached to either. Taller users may want to use the front hole; shorter users may want to use the back hole. Handlebar Adjustment: Adjusting the Handlebar Height Adjusting the Handlebar’s Forward/Aft Position...
-
Page 16: Basic Operation
GENERAL EXERCISE GUIDELINES BASIC OPERATION GENERAL EXERCISE GUIDELINES SETTING A GOAL... -
Page 17: Flexibility Training
GENERAL EXERCISE GUIDELINES FLEXIBILITY TRAINING* EXERCISE PRINCIPLES * *Note: Some of the material contained in this section is adapted from The StairMaster® Fitness Handbook 2nd Ed., James A Peterson, and Cedric X. Bryant (editors), Sagamore Publish- ing, 1995. -
Page 18: Maintenance Instructions
MAINTENANCE MAINTENANCE INSTRUCTIONS HELPFUL HINTS TOOL LIST INITIAL SERVICE... -
Page 19: Maintenance Schedule
MAINTENANCE MAINTENANCE SCHEDULE PART RECOMMENDED ACTION FREQUENCY CLEANER LUBRICANT... -
Page 20: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING SYMPTOM: Clicking noise with each pedal revolution. SYMPTOM: Clicking noise when flywheel rotates. SYMPTOM: Drive belt is slipping. Note: Use caution around belt when cover is removed. SYMPTOM: Knocking noise or play felt in pedals/cranks. Note: Left pedal is reverse threaded. SYMPTOM: Inconsistent resistance or noisy brake pad. - Page 21 TROUBLESHOOTING SYMPTOM: Rocking or movement from RevMaster Sport while in use.
-
Page 22: Specifications
SPECIFICATIONS PHYSICAL DIMENSIONS: Shipping Carton Dimensions: Length: 41.4 in (105 cm) Length: 40 in (101.6 cm) Weight: 42 in (106.7 cm) Height: 33 in (83.8 cm) Width: 23 in (58.4 cm) Width: 8 in (20.3 cm) Weight: 114 lbs (51.7 kg) Weight: 133lbs (60.3 kg) - Page 23 SPECIFICATIONS FRAME: SEAT: FLYWHEEL: TRANSPORT WHEELS DRIVE TRAIN BRAKING AND RESISTANCE MECHANISM: CRANK SET: HANDLEBARS:...
- Page 24 Daily and Monthly Exercise Logs...
