2. Seat the cables from the bottom of the cradle in the grooves along the length of it
so that the bottom of the cradle is smooth.
3. Fasten the two screws provided into the wall where the cradle will hang, leaving
about 1/8" (0.3 cm) of the screw outside the wall for the cradle's wall mounting
sockets (A template is provided for you in the PL 370/470 Quick Reference Guide
p/n 72-38494-xx).
4. Place the cradle over the screw heads and slide down until it fits into place. Slight
pressure upwards should not move the cradle.
5. Position the antenna vertically (pointing toward the ceiling).
6. Place the scanner in the cradle.
Cable
Grooves

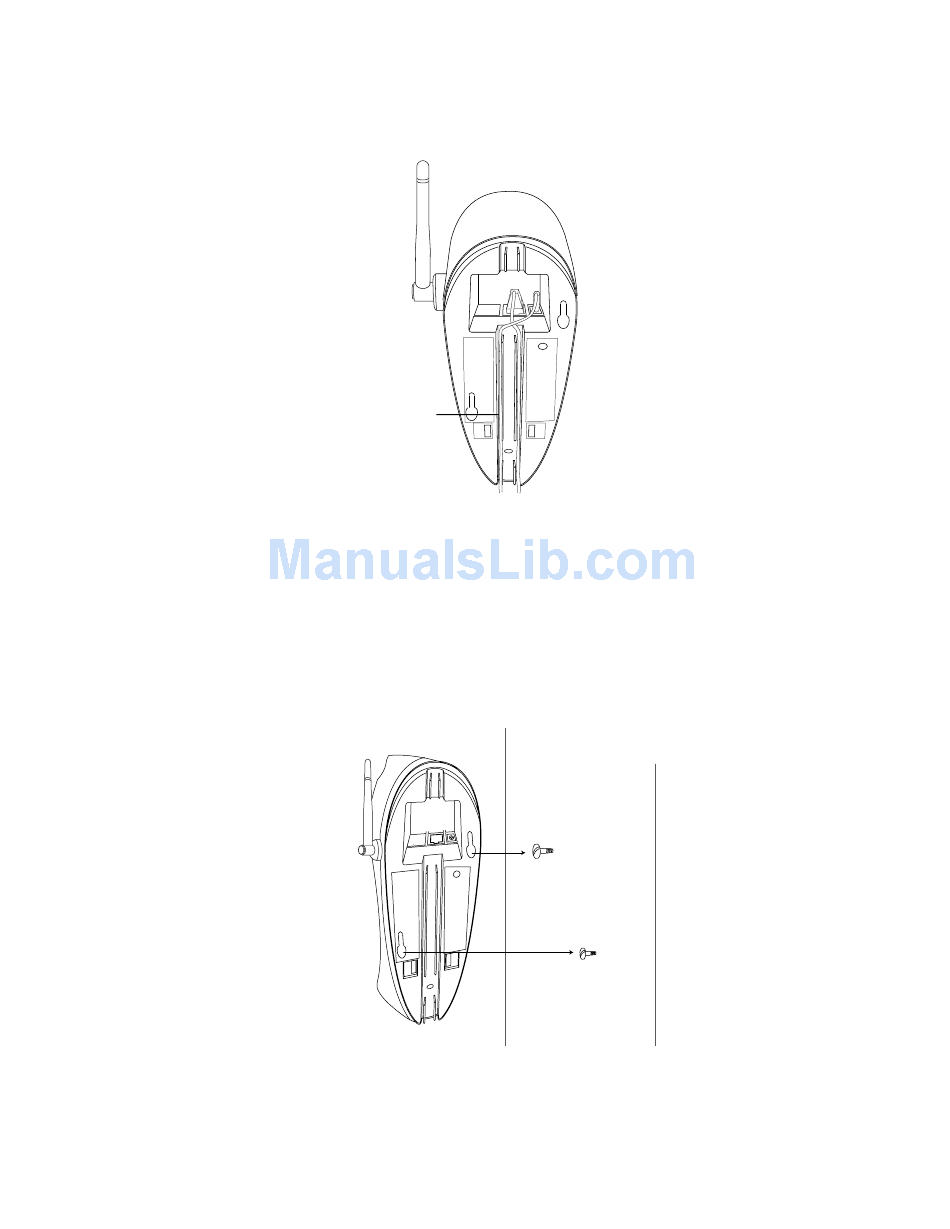

Figure 1-5. Placement of Cables
Figure 1-6. Securing Cradle to Wall
