Using the Cradle

1. Set up the cradle as described in Setting Up the Cradle on page 1-3.
2. Insert the scanner into the cradle so that the nose of the scanner and tip of the
handle seat into the receptacles. The battery charges automatically. A full charge
of a depleted battery takes approximately 3-1/2 hours.
For charging indications, see Charge Status LED Indications on page 1-12.
The cradle recharges batteries in the scanner only when the scanner is in the cradle. A
scanner with a depleted battery starts charging immediately upon insertion into the cradle,
whereas a scanner with a partially charged battery begins charging after approximately 15
minutes. Note that the scanner can be removed from the cradle at any time.

Using the UBC 2000

The battery can be charged using the Universal Battery Charger UBC 2000. The UBC
adapter for the P370/P470 scanner battery is required. Refer to the UBC 2000 Universal
Battery Charger Product Guide for information on recharging the battery using the UBC
2000.

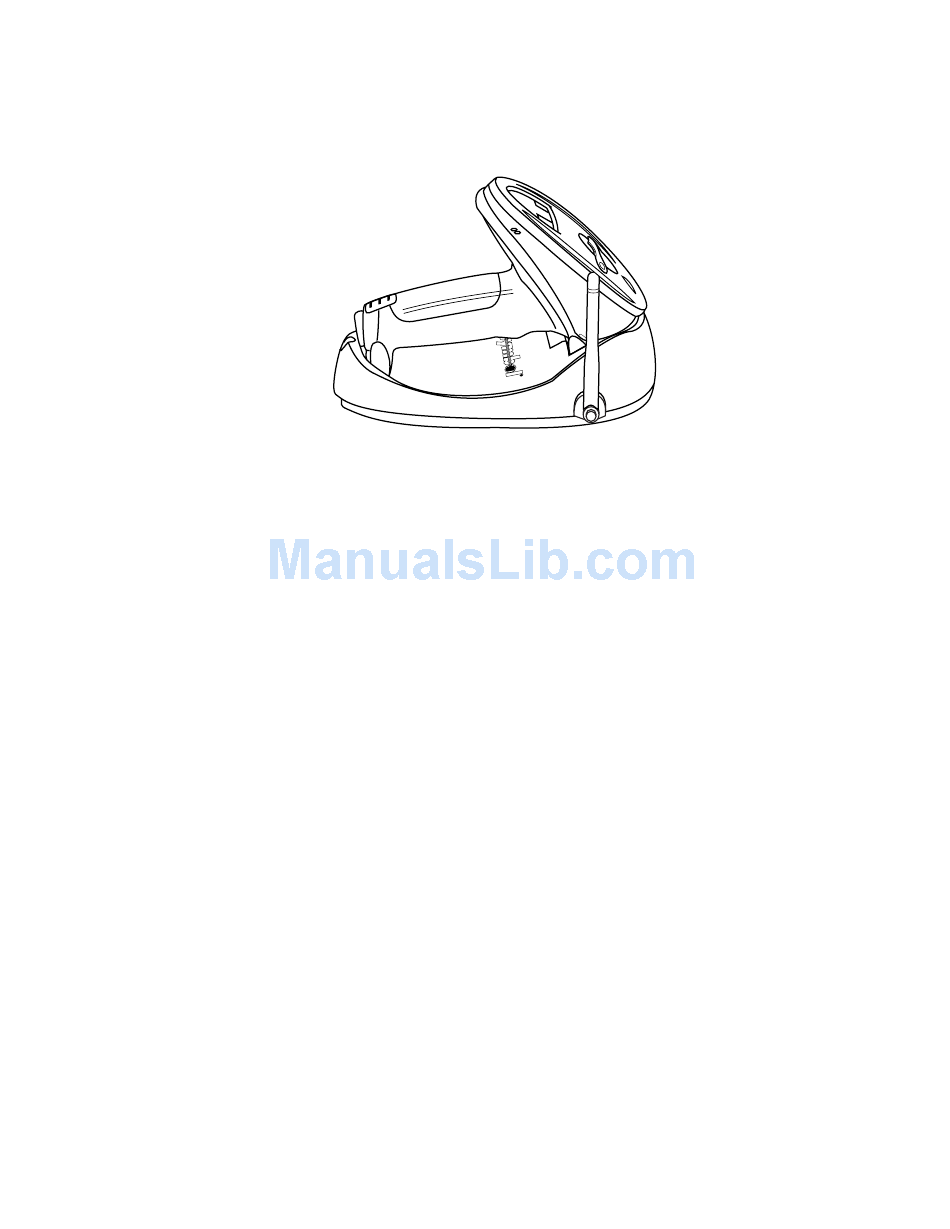

Figure 1-7. Placing the Scanner into the Cradle
Getting Started
1-11
