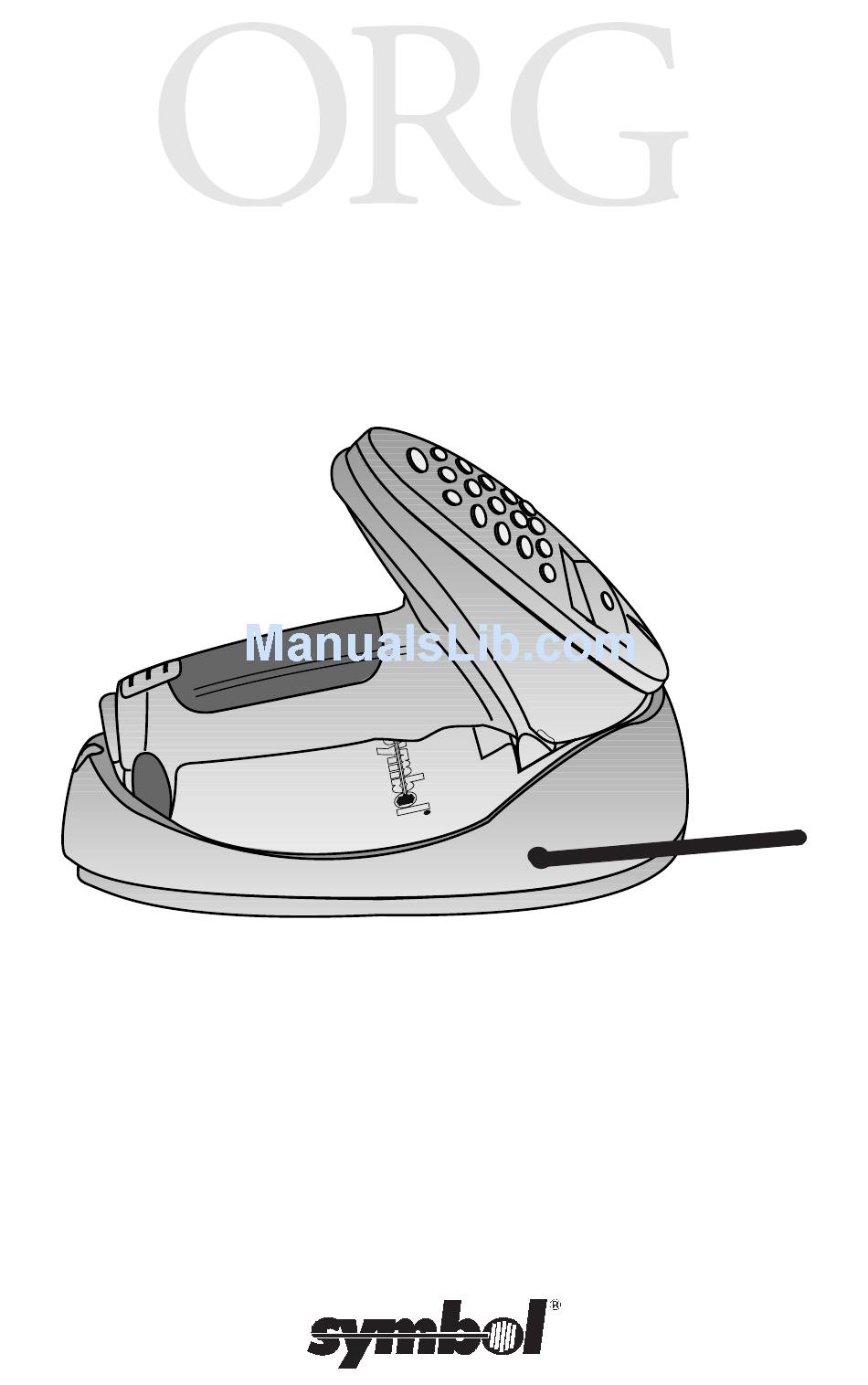

  • Page 1 Preliminary...
  • Page 2 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

  • Page 3: Equipment Supplied

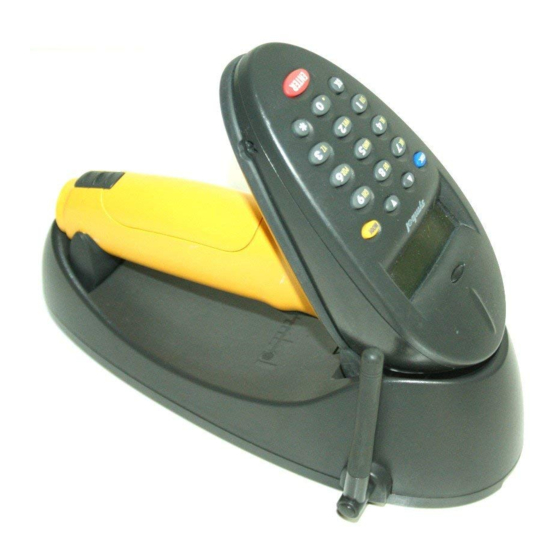

    Q u i c k R e f e r e n c e Introduction The PhaserLink PL 470 Base Cradle acts as a stand, host communication interface, and a charger for the Phaser Radio Scanner. It can sit on a desktop or be wall-mounted - whichever is more convenient.
  • Page 4 4 7 0 B a s e C r a d l e P 370/470 Radio Scanner Quick Reference Guide, p/n 72-xxxxx-xx Preliminary...

  • Page 5: Parts Of The Cradle

    Q u i c k R e f e r e n c e Parts of the Cradle This figure shows the parts of the PhaserLink Cradle: Antenna Scanner Support Charging/ Communications Contacts Charging COM 1 Indicator Power COM 2 Port Wall- mounting...

  • Page 6: Connecting To The Host

    4 7 0 B a s e C r a d l e Connecting To The Host On the bottom of the cradle are three ports - COM 1 COM 2 Power Port COM 1 connects to the host computer, COM 2 is used for daisy- chaining multiple cradles together, and the Power Port supplies power to the cradle.

  • Page 7: Daisy Chaining

    Q u i c k R e f e r e n c e 2. Insert the cable from the host computer into COM 1 and the cable to the other cradles, if any, into COM 2. Daisy-Chaining Note: The cradle supports daisy-chaining when connected to a serial host and not when using Synapse interfaces.
  • Page 8 4 7 0 B a s e C r a d l e 2. Seat the cables from the bottom of the cradle in the grooves along the length of it so that the bottom of the cradle is smooth and flat, as shown: 3.

  • Page 9: Inserting Phaser In The Cradle

    Q u i c k R e f e r e n c e Inserting Phaser in the Cradle Place the Phaser scanner in the cradle so that the top of the scanner sits in the larger part of the cradle and the metal contacts on the bottom of the scanner touch the contacts on the cradle, like so: Sending Data to Host Computer To set up the PhaserLink Cradle for communications between a...

  • Page 10: Indicator Led

    4 7 0 B a s e C r a d l e Indicator LED Once the scanner is placed in the cradle, it will wait 15 minutes to start charging the battery in the scanner. The LED blinks in a specific pattern to show what the cradle is doing: The scanner is not in the cradle Scanner is in cradle, not charging...

  • Page 11: Regulatory Information

    Q u i c k R e f e r e n c e Regulatory Information Cradle Labeling Radio Frequency Interference Requirements This device has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the Federal Communications Commissions Rules and Regulation.

  • Page 12: Radio Frequency Interference Requirements - Canada

    The majority of Symbol’s RF devices are type approved and do not require the user to obtain license or authorization before using the equipment. Any changes or modifications to Symbol Technologies equipment not expressly approved by Symbol Technologies could void the user’s authority to operate the equipment.

  • Page 13: Service Information

    This warranty is limited to repair or replacement at Symbol’s option, with reasonable promptness after being returned to Symbol by a carrier selected and paid for by the customer. These provisions do not prolong the original warranty term for any product which has been repaired or replaced by Symbol.

  • Page 14: Wall Mounting Template

    4 7 0 B a s e C r a d l e Wall Mounting Template: 1 5/16” Wall Mounting Socket 1 Use 1/8” drill bit for the Center screw holes. Line of Cradle 3 1/2” Wall Mounting Socket 2 11/16”...
  • Page 15 Q u i c k R e f e r e n c e this page intentionally left blank Preliminary...
  • Page 16 Preliminary 70-38494-01 Revision .1 — June 1999 Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300...
