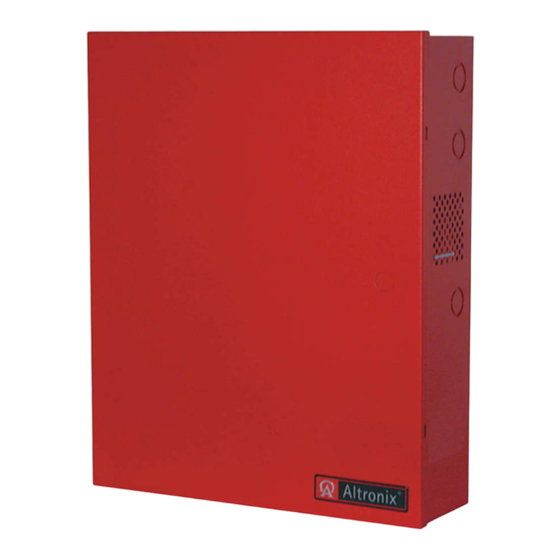

- Page 1 AL602ADA220J NAC Power Extender Installation Guide (see Application Guide for additional information) More than just power. Rev. 122713...
-
Page 2: Table Of Contents
Enclosure Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 16 - 2 - AL602ADA220J... -
Page 3: Overview
Overview: Altronix AL602ADA220J is an extremely cost-effective 6 .5A remote power supply/battery charger . It may be connected to any 24 volt Fire Alarm Control Panel (FACP) . Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements . It also provides auxiliary power to support system accessories . -
Page 4: Power Supply Specifications
Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery batteries connected in series . Stand-by/Alarm 90mA/175mA Current Consumption: EOL Resistor (end of line): 2 .2K (2200 Ohm), Altronix Model # AL-EOL22 (included) . Ground fault maximum 1000 Ohm . test impedance: Stand-by Specifications: Stand-by Time Total... -
Page 5: Output Programming Selection Table
Cooper Wheelock . tion over a two-wire circuit while leaving strobes active . *Note: The AL602ADA220J will only synchronize horns, horn/strobes and strobes that contain synchronization capability . Contact signal manufacturer for more detailed info (see Appendix A, pgs. 11-13) . -
Page 6: Amount Of Notification Appliances Per Nac
For loads connected to “AUX” please refer to battery “Stand-by Specifications”, pg. 4 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 6.5A total alarm current (example: AUX = 1A, outputs up to 5.5A). - 6 - AL602ADA220J... -
Page 7: Al600Ada Power Supply Board
To reset the memory depress the reset button (Fig. 2c, pg. 9) . The LED(s) will extinguish . Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit . AL602ADA220J - 7 -... -
Page 8: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices . Stand-by: 90mA 90mA AL602ADA220J (Current draw from battery) Alarm: 175mA 175mA AL602 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings . -
Page 9: Hookup Diagram
AL602ADA220J - 9 -... -
Page 10: Optional Hookups
Input fuse rating is 5A @ 250V . Note: Maximum charging current is 650mA . Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed . - 10 - AL602ADA220J... -
Page 11: Compatible Ul/Cul Listed Devices For Synchronization
Appendix A: Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ADA220J NAC outputs . Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL GCS24CW - UL... - Page 12 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ADA220J NAC outputs . System Sensor: CHSR - UL P4R-SP - UL PC4RH-P - UL...
- Page 13 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL602ADA220J JNAC outputs . Cooper/Wheelock: 50-241575W-FR - UL/cUL E70-24MCW-FN - UL/cUL ET90-24MCCH-FN - UL/cUL LSTW-A* - UL/cUL...
-
Page 14: Four (4) Wire Smoke Detectors
Appendix B - UL Listed Compatible Devices B-1 Four (4) Wire Smoke Detectors Table B-1 below lists four (4) wire smoke detectors compatible with AL602ADA220J AUX output and Outputs 1-8 when programmed as AUX . System Sensor Max Stand-by Alarm... - Page 15 Notes: AL602ADA220J - 15 -...
-
Page 16: Enclosure Dimensions
Altronix is not responsible for any typographical errors . 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A . MEMBER...
