AL602ADA220
NAC Power Extender
Installation Guide
(see Application Guide for additional information)
More than just power.
Rev. 030320
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Table of Contents
Related Manuals for Altronix AL602ADA220
Summary of Contents for Altronix AL602ADA220
- Page 1 AL602ADA220 NAC Power Extender Installation Guide (see Application Guide for additional information) More than just power. Rev. 030320 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...
-
Page 2: Specifications

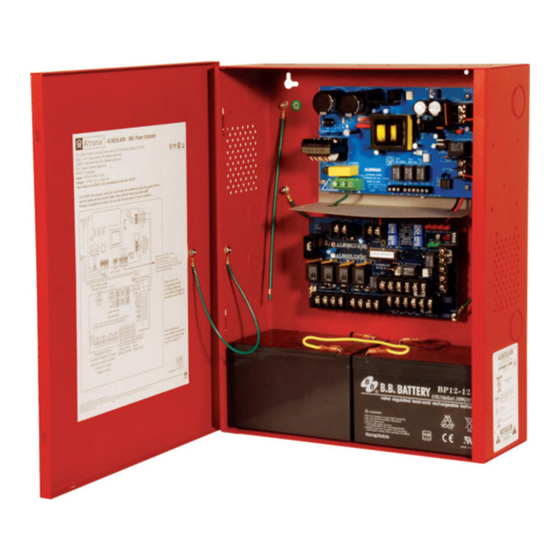

Overview: Altronix AL602ADA220 is an extremely cost-effective 6.5A remote power supply/battery charger. It may be con- nected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories. -
Page 3: Power Supply Specifications
Use two (2) 12VDC / 7AH, two (2) 12VDC / 12AH or two (2) 12VDC / 40AH Battery batteries connected in series. Stand-by/Alarm 90mA/175mA Current Consumption: EOL Resistor (end of line): 2.2K (2200 Ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 Ohm. test impedance: Stand-by Specifications: Stand-by Time Total... - Page 4 Cooper Wheelock. wire circuit while leaving strobes active. *Note: The AL602ADA220 will only synchronize horns, horn/strobes and strobes that contain synchronization capability. The same synchronization mode must be selected for all outputs. - 4 -...
- Page 5 For loads connected to “AUX” please refer to battery “Stand-by Specifications”, pg. 3 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 6.5A total alarm current (example: AUX = 1A, outputs up to 5.5A). AL602ADA220 Installation Guide - 5 -...
-
Page 6: Led Diagnostics
To reset the memory depress the reset button (Fig. 2c, pg. 8). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL602ADA220 Installation Guide... -
Page 7: Battery Calculation Worksheet
(30% extra insurance to meet desired performance) Total ampere - hours required Units are capable of recharging 40AH battery max. If total ampere - hour required exceeds 40AH, decrease AUX current to provide enough stand-by time for the application. AL602ADA220 Installation Guide - 7 -... - Page 8 - 8 - AL602ADA220 Installation Guide...
-
Page 9: Maintenance
Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5A @ 250V. Note: Maximum charging current is 650mA. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. AL602ADA220 Installation Guide - 9 -... -
Page 10: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL602ADA220 AUX output and Outputs 1-8 when programmed as AUX. Max Standby Alarm Smoke Detector/Base... - Page 11 Rixon Firemark FM-996 Surface Wiring Rixon Firemark FM-998 Concealed Wiring –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– A.3 Relays Table A-3 below lists relays compatible with AL602ADA220 AUX output and Outputs 1-8 when programmed as AUX. Manufacturer Model Current (mA) Manufacturer Model Current (mA) PR-1 R-20T...
-
Page 12: Enclosure Dimensions
1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIAL602ADA220 H09U...
