Repair Parts List - STA-RITE 60 CYCLE C Series Owner's Manual
60 cycle “c” and “cc” series centrifugal pumps for swimming pool use
Hide thumbs
Advertisement
6" Hair and Lint
Strainer
7
1839 0695
NOTICE: Strainers
are not included
with pumps.

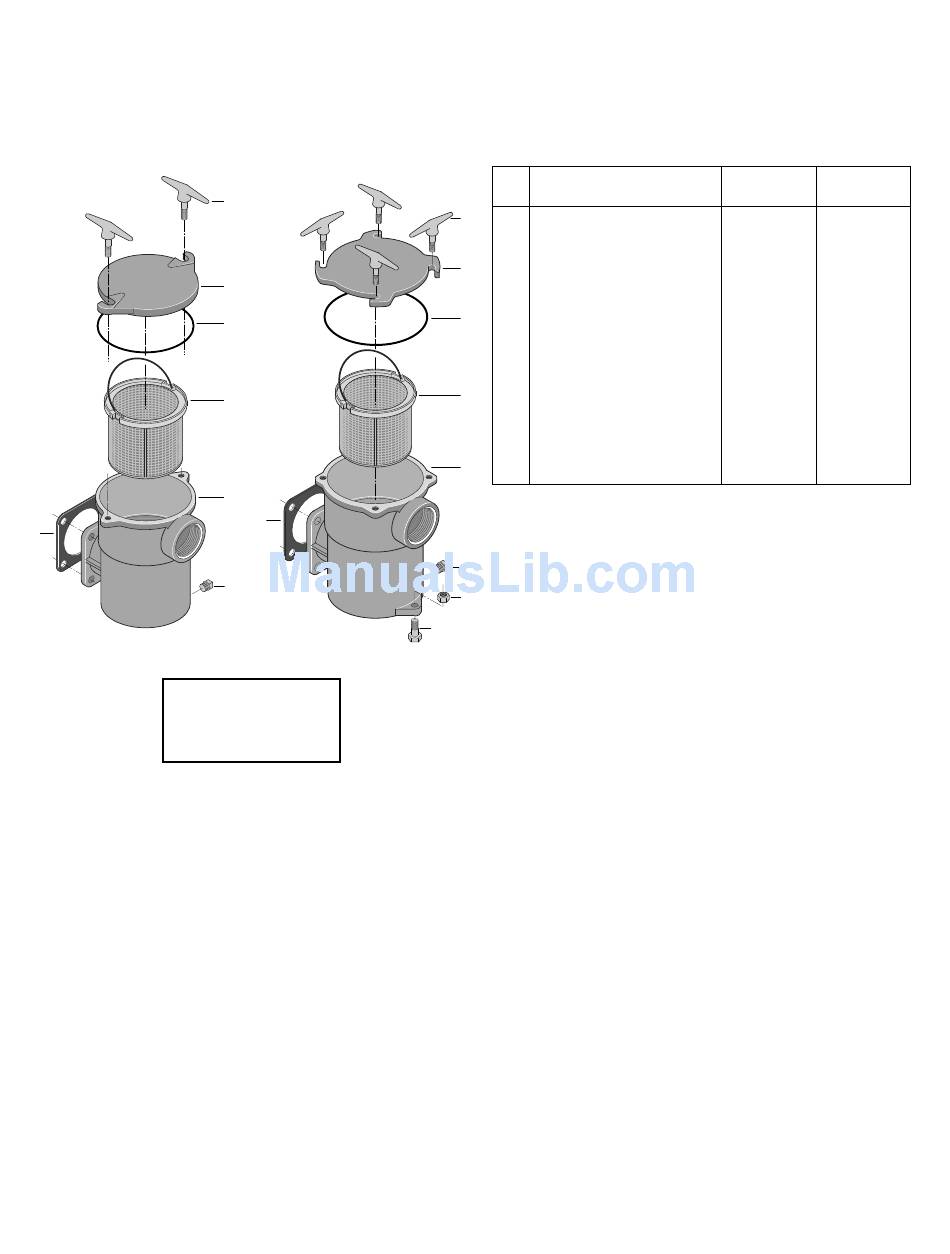

EXPLODED VIEWS
8" Hair and Lint
Strainer
1
2
3
4
5
7
1128 0695
6
HAIR AND LINT STRAINER
REPAIR PARTS LIST
Key
Part
No.
Description
1
1*
Lock Handle
2
Cover - 6"
2
Cover - 8"
2
3
O-Ring - 6"
3
O-Ring - 8"
4
Strainer Basket - 6"
3
4
Strainer Basket - 8"
5
Suction Strainer Body - 6"
5
Suction Strainer Body - 8"
6
Pipe Plug 1/4"
7
Gasket, Flange
4
8
Capscrew, 3/8-16x1-3/4"
9
Nut, Hex 3/8-16
•
Capscrew, 5/16-18x7/8"
Suction Strainer Complete - 6"
5
Suction Strainer Complete - 8"
Quantity 1 unless otherwise noted ( ).
• Not illustrated.
* 6" has 2 each; 8" has 4 each.
6
9
8
15
Cast Iron
Bronze
C154-18D
C154-18D
C30-30
C3-78DZZ
C3-105
C3-105D
U9-46
U9-46
U9-171
U9-171
C108-11P
C108-11P
C108-34SS
C108-34SS
C53-5B
C53-5D
C53-21
C53-21D
U78-57DT
U78-57DT
C20-19
C20-19
–
U30-77C
–
U36-38C
U30-61C(4)
U30-61C(4)
Pkg. #51
Pkg. #56
Pkg. #98
Pkg. #99
