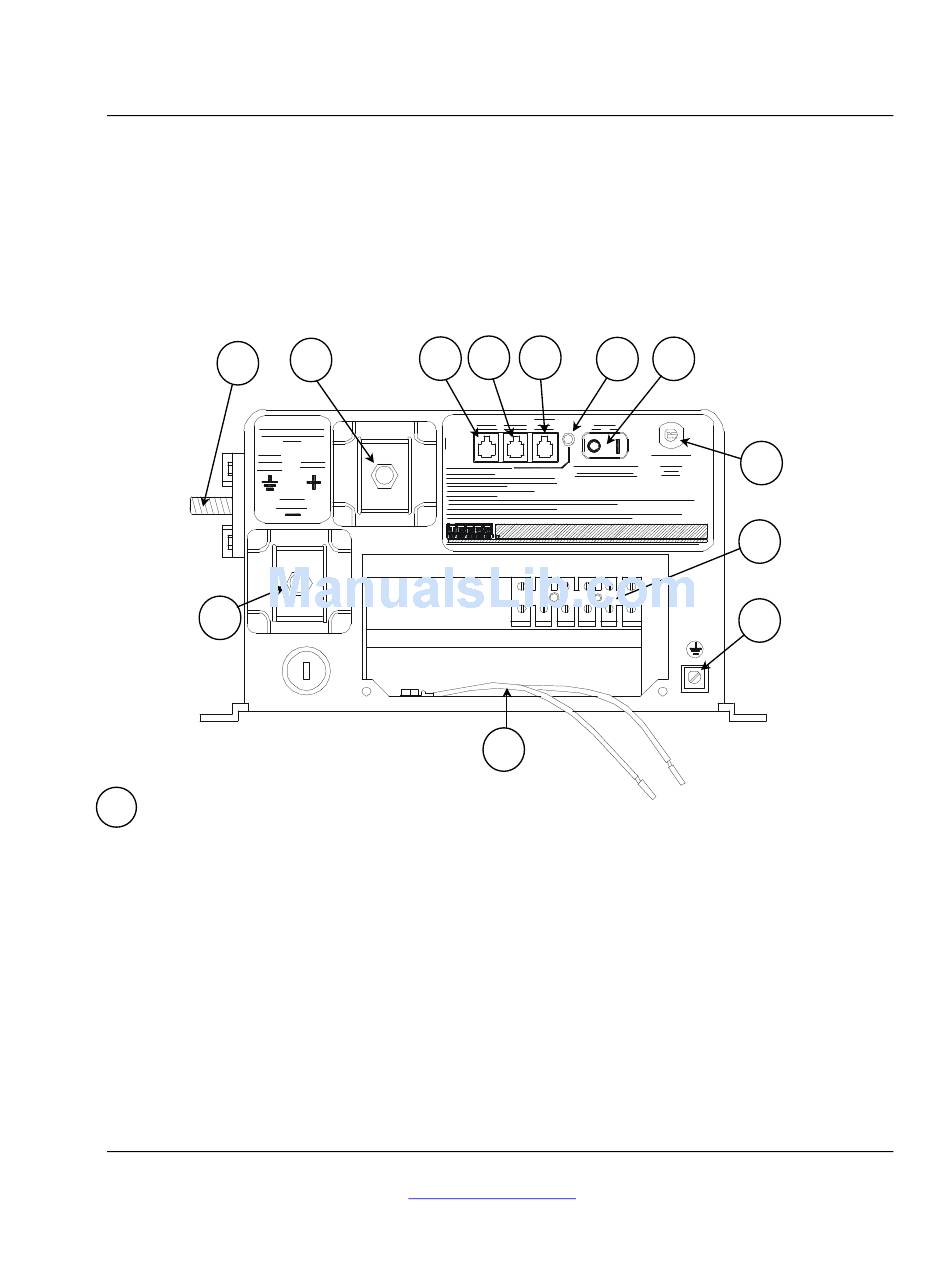

Controls & Indicators
The Legend Series II inverter/chargers feature a two-position On/Off rocker switch, tri-color status
indicator, battery temperature sensor (BTS) port, remote control port, and a charger circuit breaker
on the front panel.
7
CAUTION
7 3
3
N 2
P
8
1. On/Off Switch: Turns the inverter on or off.
ON: the inverter transforms 12-volt direct current from the batteries into 120-volt, 60 Hz alternating
current whenever AC current is not present at the AC Input Hot 1 terminal.
When 120-volt AC is present at the AC Input Hot 1 terminal, the inverter will pass the current through
to any AC loads connected to the inverter, and the standby battery charger will charge the batteries.
OFF: the inverter will not create AC power from the batteries, but will pass through AC current when
it is present at the AC Input Hot 1 terminal. The standby battery charger will charge the batteries
regardless of the position of the On/Off switch.
Trace Engineering Co. Inc.
5916 195
Street, NE
th
Arlington, WA 98223 USA
4
5
6
Tel (360) 435-8826
Fax (360) 435-2229
www.traceengineering.com
C O N T R O L S & I N D I C A T O R S
3
1
2
9
12
11
10
Part Number 3179
Effective August 6, 1998
Page
15
