Controls & Indicators - Trace Engineering LEGEND II Manual

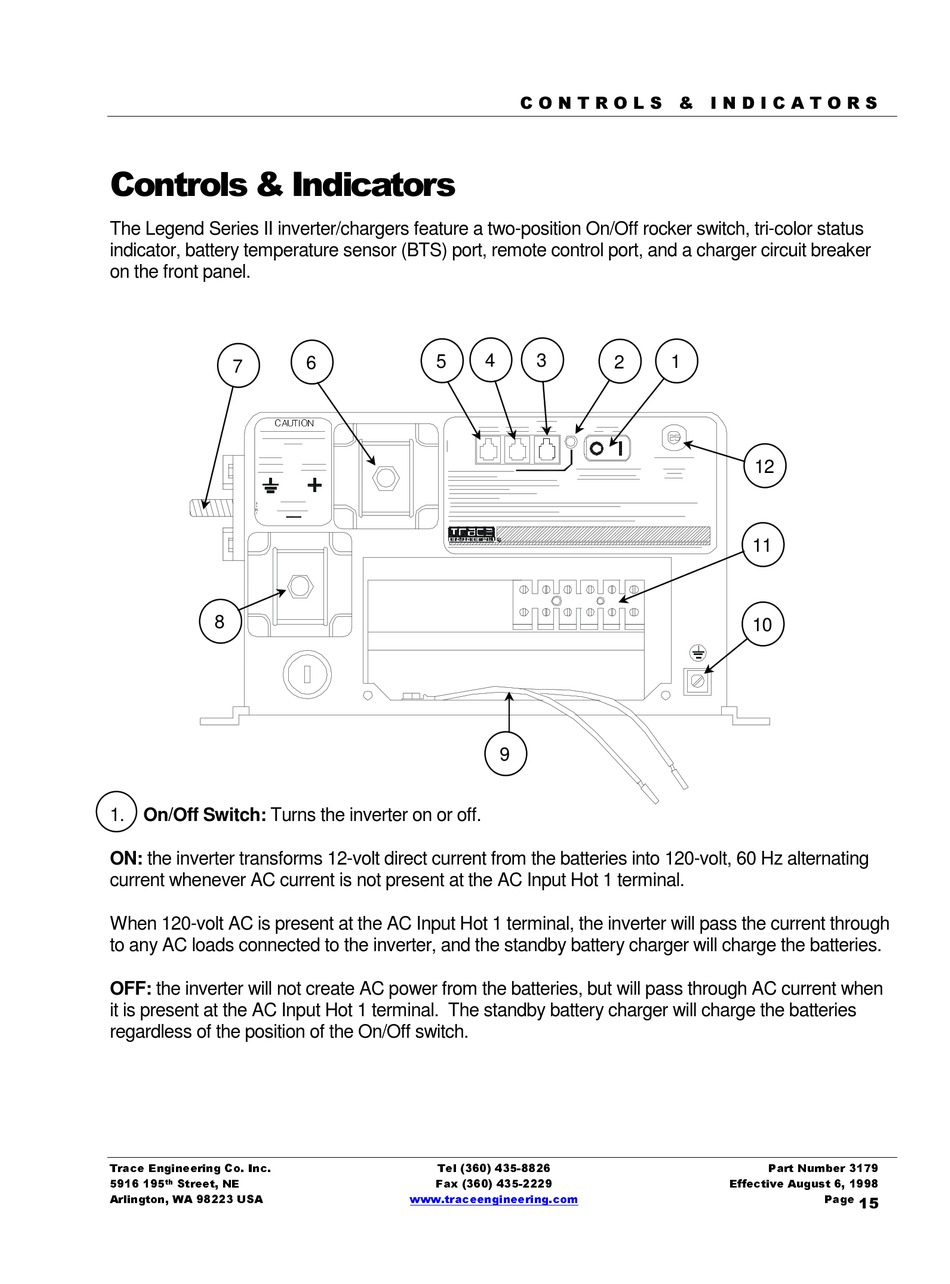

The Legend Series II inverter/chargers feature a two-position On/Off rocker switch, tri-color status
indicator, battery temperature sensor (BTS) port, remote control port, and a charger circuit breaker
on the front panel.
7
8
1. On/Off Switch: Turns the inverter on or off.
ON: the inverter transforms 12-volt direct current from the batteries into 120-volt, 60 Hz alternating
current whenever AC current is not present at the AC Input Hot 1 terminal.
When 120-volt AC is present at the AC Input Hot 1 terminal, the inverter will pass the current through
to any AC loads connected to the inverter, and the standby battery charger will charge the batteries.
OFF: the inverter will not create AC power from the batteries, but will pass through AC current when
it is present at the AC Input Hot 1 terminal. The standby battery charger will charge the batteries
regardless of the position of the On/Off switch.
WK
4
5
6
3
2 1
9
12
11
10
